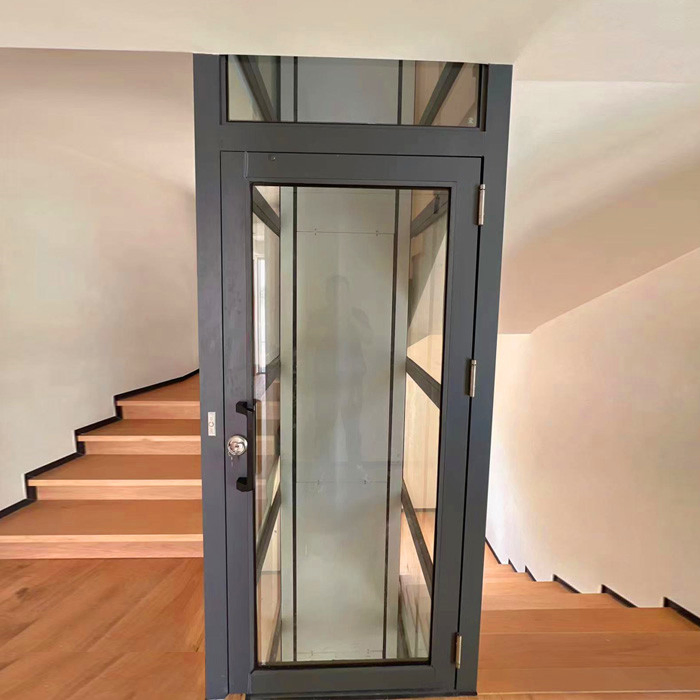

Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

1 / 5

Residential Hoistway Vertical Home Platform Stair Lifts Elevator Price Cheap Home Elevator for Passenger

Customization:	Available
After-sales Service:	24 Hours Technical Support
Warranty:	12 Months

Send Inquiry

Product Description

Basic Specifications

Model NO.Y-160

Driving TypeHydraulic or Screw

Capacity250kg

Persons2-3 Persons

Speed70mm/S

Lifting Height1m-10m

UsageIndoors & Outdoors

Production Date30 Days

Transport PackageWooden Box

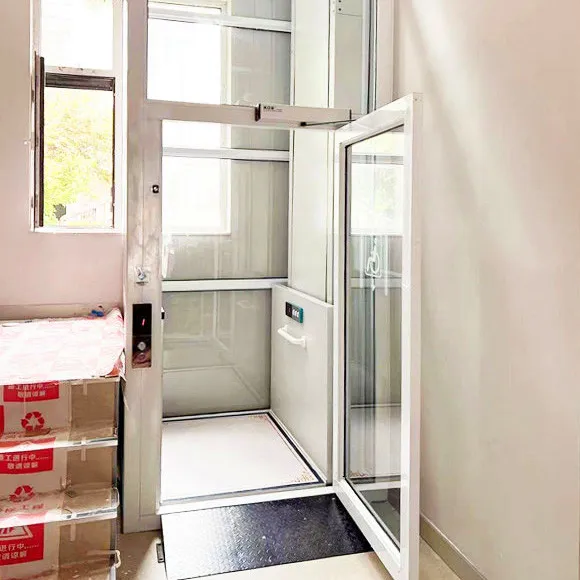

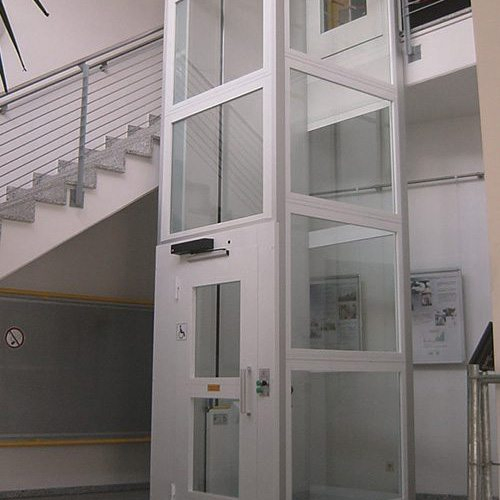

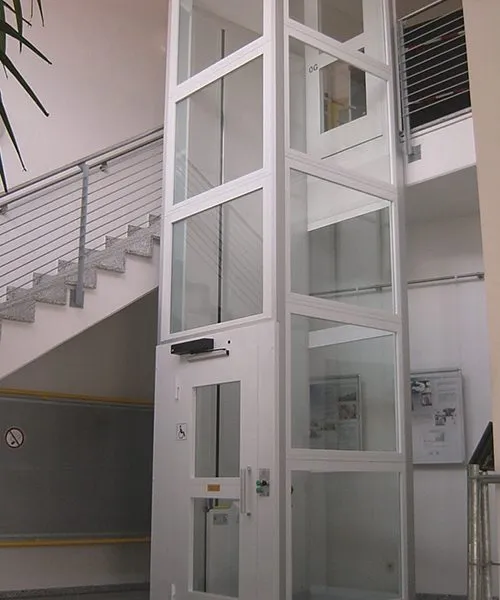

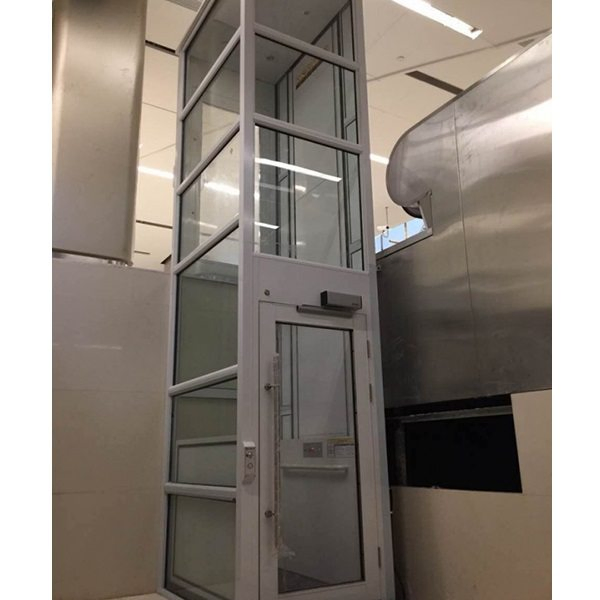

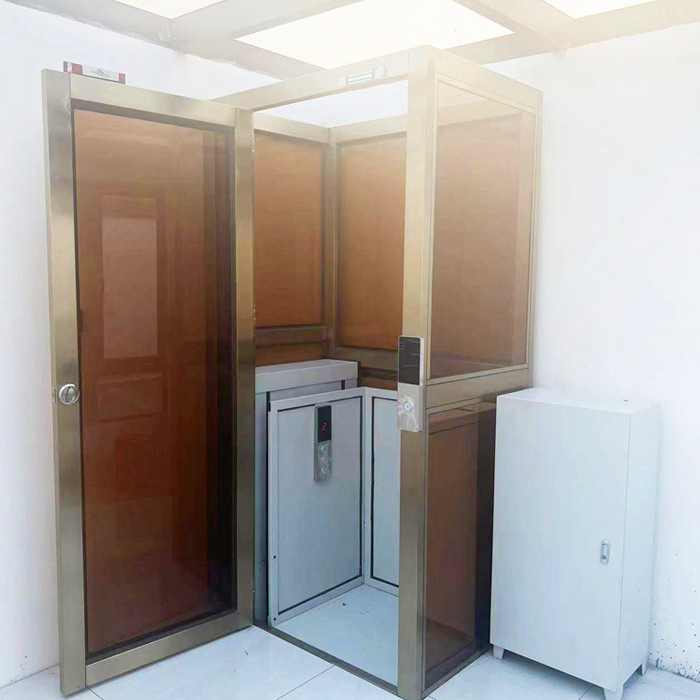

Product Overview

The hoistway lift platform features stable running speed, high safety, and easy installation. With a small footprint and no requirement for machine pits, it is a cost-effective alternative to traditional home elevators. The platform is spacious enough to accommodate wheelchairs and escorts, providing an ideal solution for disabled accessibility and lifting goods across up to 3 floors.

Applications: Ideal for residential quarters, villas, hotels, administrative office buildings, subways, banks, gymnasiums, hospitals, and pension centers.

Technical Parameters

Voltage	220V/50HZ or Customized

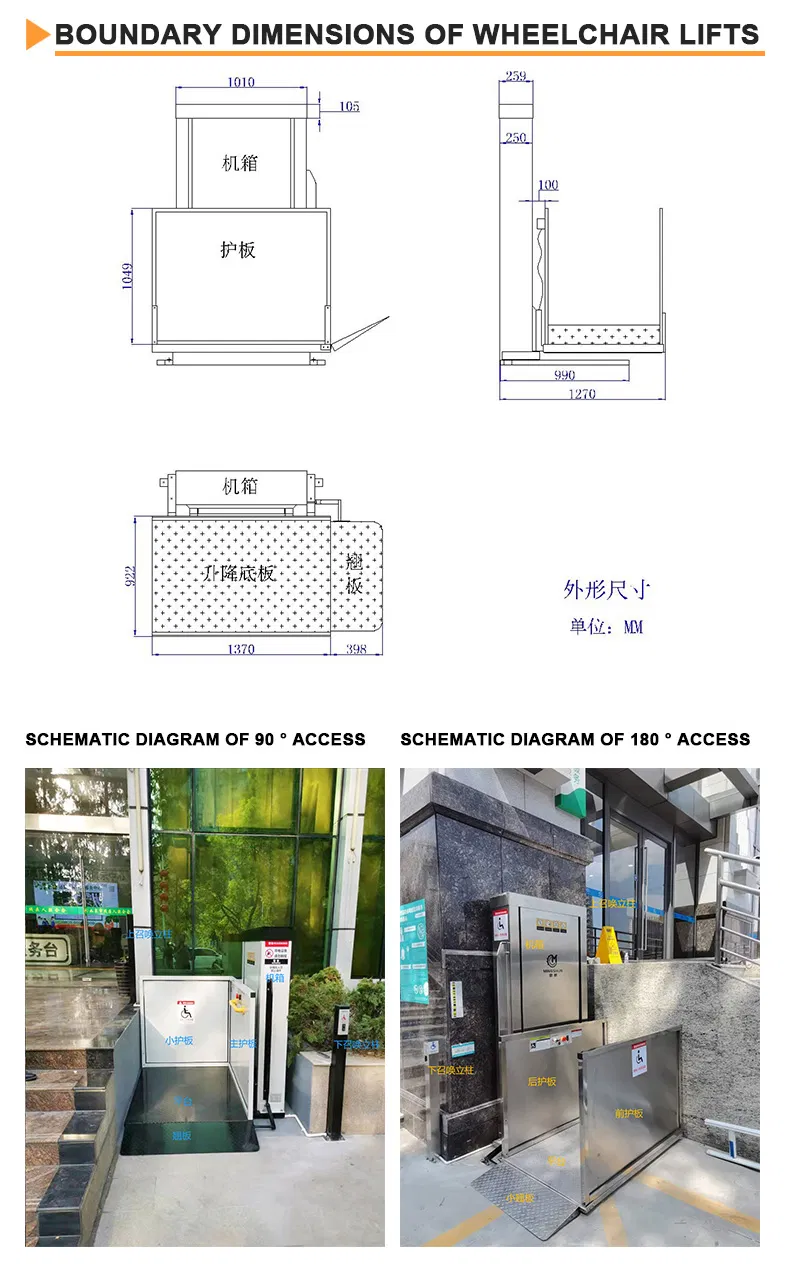

Overall Dimensions	1590mm × 1380mm × (Lifting Height + 2200mm)
Lifting Base Plate Size	1370mm × 920mm
Installation Way	No foundation pit, fixed on horizontal concrete floor/wall
Lifting Speed	90mm/s (Inverter control, soft start/brake)
Max. Loading	240kg
Drive Way	Hydraulic double-valve silent motor-driven
Motor Power	2.2kw 220V/AC
Opening Mode	Automatic
Safety Features	Overload protection, Emergency stop, Emergency descent, Safety light curtains

Frequently Asked Questions

Does this lift require a machine pit for installation?

No, it is designed for installation without a foundation pit. It can be directly fixed on a horizontal concrete floor and wall, using a ramp for the height difference.

What is the maximum lifting height available?

The lifting height is customizable between 1 meter and 10 meters, making it suitable for buildings up to 3 floors.

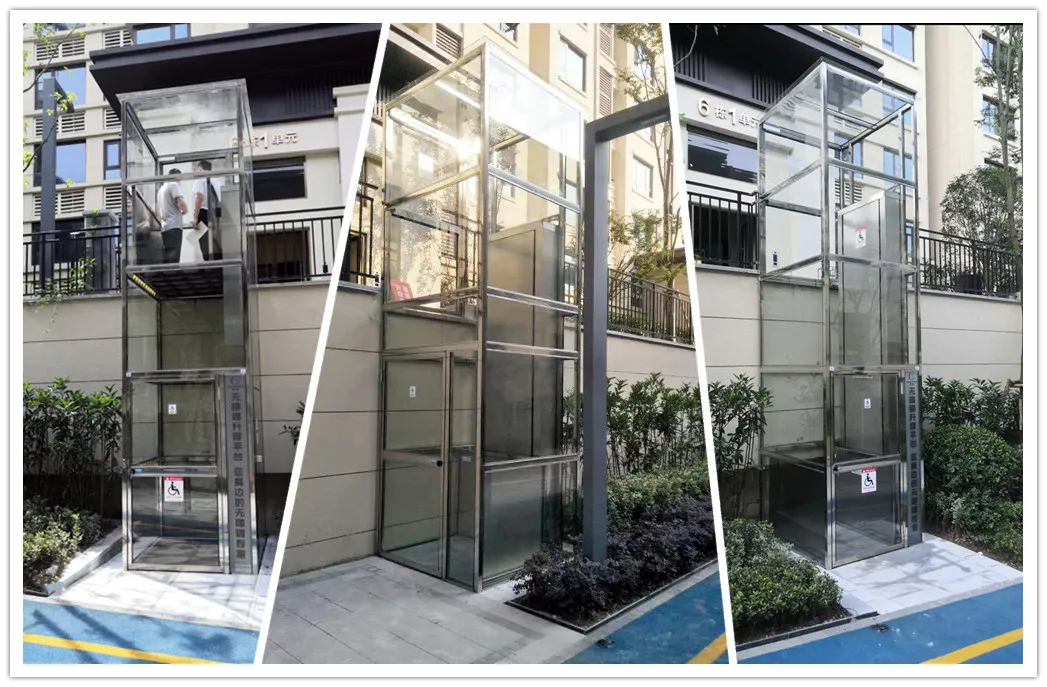

Can the platform be used outdoors?

Yes, the equipment is built for both indoor and outdoor environments and can operate reliably in temperatures ranging from -20°C to 60°C.

How safe is the hoistway lift?

The lift is equipped with multiple safety systems, including overload protection with alarms, emergency stop buttons, electric emergency descent, and sensor light curtains at entrances.

What is the loading capacity and space?

The standard loading capacity is 240kg-250kg, which accommodates 2-3 persons or a wheelchair with an escort.

What are the power requirements?

The standard power supply is 220V/50HZ with a 2.2kw motor, but voltage can be customized based on local requirements.
