One Single Post Pole Car Parking Lift System Stacked Vehicle Hydraulic Vertical Mechanical Home Garages Vertical Simple Storage Platform Hoist Equipment

1 / 5

One Single Post Pole Car Parking Lift System Stacked Vehicle Hydraulic Vertical Mechanical Home Garages Vertical Simple Storage Platform Hoist Equipment

Customization:	Available
Parking Post:	2
Level:	2

Send Inquiry

Product Description

Basic Info

Model NO.

QBS2

Capacity

2000kgs

Lifting Height

2.0 Meters

Material

Steel

Type

Single Post Parking Lift

Safety Features

Automatic Safety Locks, Emergency Stop, Overload Protection

Warranty

12 Months

Power Supply

2.2kw, 100-450V, 50/60Hz

Surface Treatment

Powder Coating

Certification

ISO CE

Platform Size

4166mm x 2722mm x 2622mm

Production

3000 Units/Year

Product Description

I am responsible for the safety of every vehicle!!!

Operation Principle

The transmission mode of the equipment is hydraulic. The hydraulic pump outputs high pressure oil to push the hydraulic cylinder, driving the carrying board up or down for parking and retrieving. When the carrying board rises to the designated position, the ground vehicle can drive in and out.

Main Features

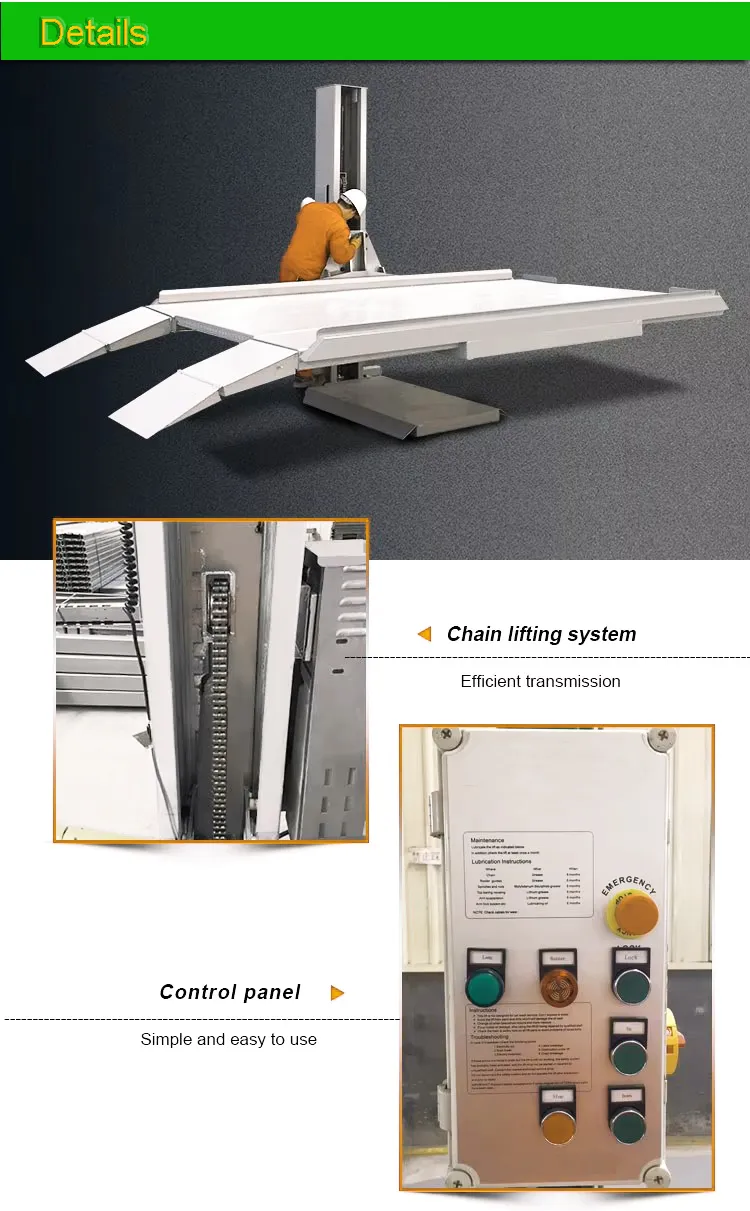

Hydraulic driven and chain lifting system.
Single stage hydraulic cylinder.
Automatic lock & electric lock release.
Space saving design with free entrance and exit, ideal for residential use.
Platform runway made of durable diamond steel plates.
Folded diamond steel ramps for easy access for sports cars.
Steel parts are sandblasted, anti-corrosion primer painted and top color coated.

Technical Parameters

Model No.	QBS2
Lifting Capacity	2000kgs
Lifting Height	2000mm
Overall Height	3330mm
Platform Usable Width	2100mm
Drive Mode	Hydraulic Cylinder + Chains
Rated Oil Pressure	18Mpa
Lock Release	Electric Auto Release
Voltage/Power	220V, 380V / 2.2kw
Operation Mode	Key Switch

Product Gallery

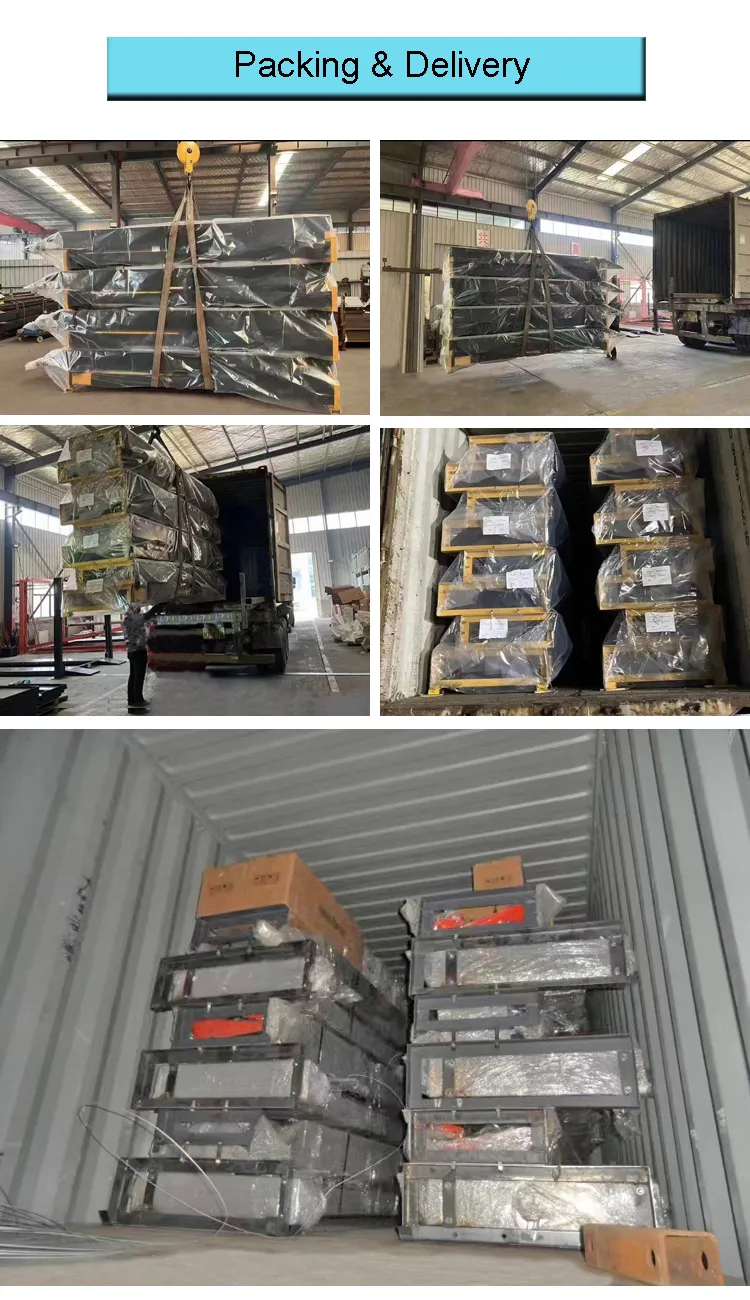

Packaging & Delivery

Package Size

345.00cm * 220.00cm * 50.00cm

Gross Weight

700.00kg

Frequently Asked Questions

Can the parking system be customized?

Yes, the parking system can be fully customized according to your specific site dimensions and technical requirements.

Is the system suitable for SUVs?

Yes. The system can be configured to accommodate various vehicle types, including standard sedans and SUVs. Please provide your vehicle dimensions for a tailored setup.

Can this lift be installed outdoors?

Yes. The structure surface is treated with galvanization or anti-corrosion painting, making it waterproof. Additional covers can be added for protection against heavy snow or rain.

What are the power requirements?

The voltage can be customized based on your local power supply, supporting 220V, 380V, or other configurations at 50/60Hz.

What safety features are included?

The system includes automatic mechanical safety locks, an emergency stop button, and overload protection to ensure the safety of both the vehicle and the operator.

How is the lifting operated?

The system utilizes a hydraulic cylinder and chain drive mechanism, typically operated via a secure key switch for controlled lifting and lowering.
