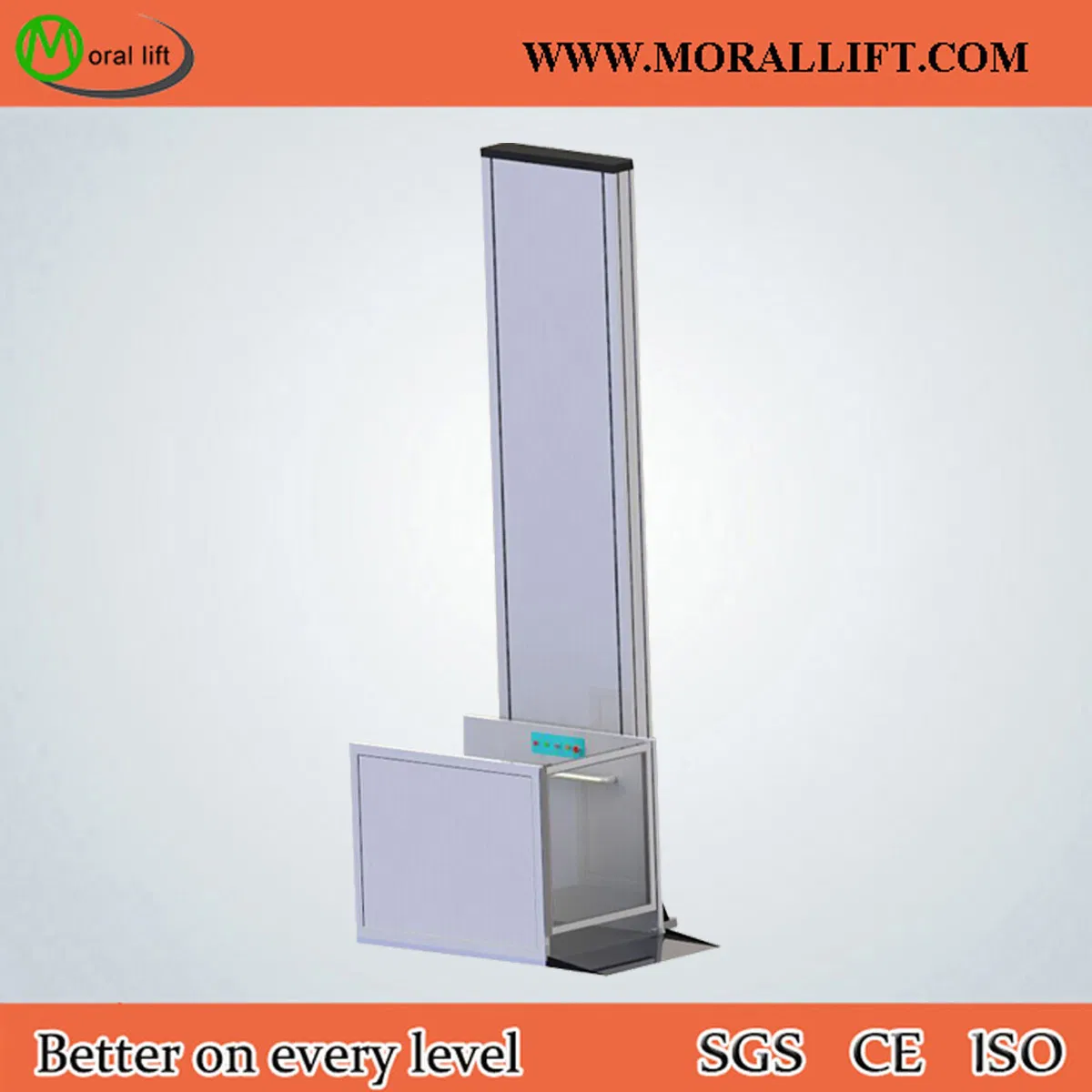

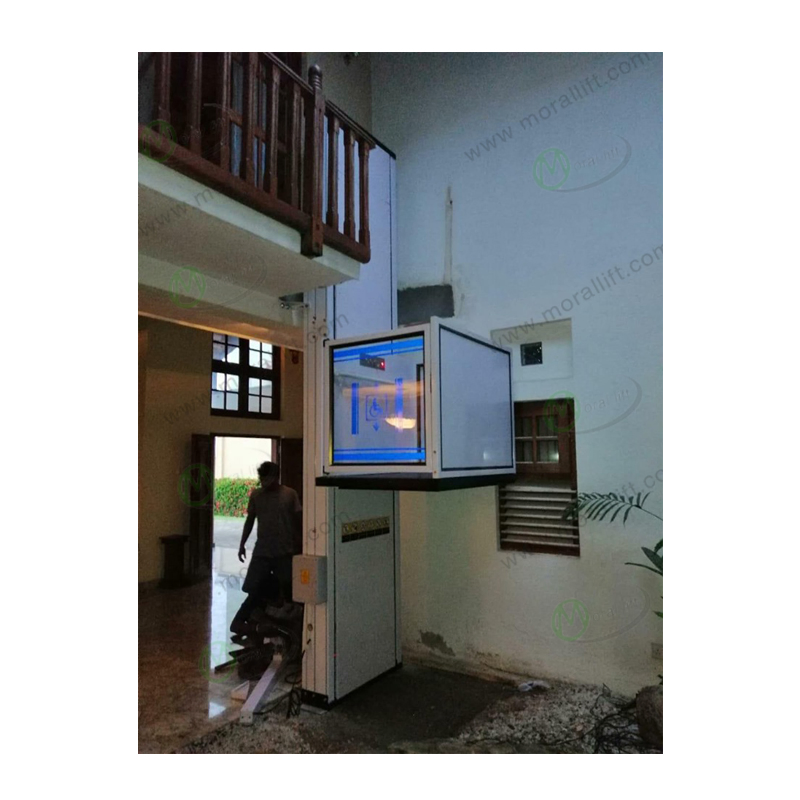

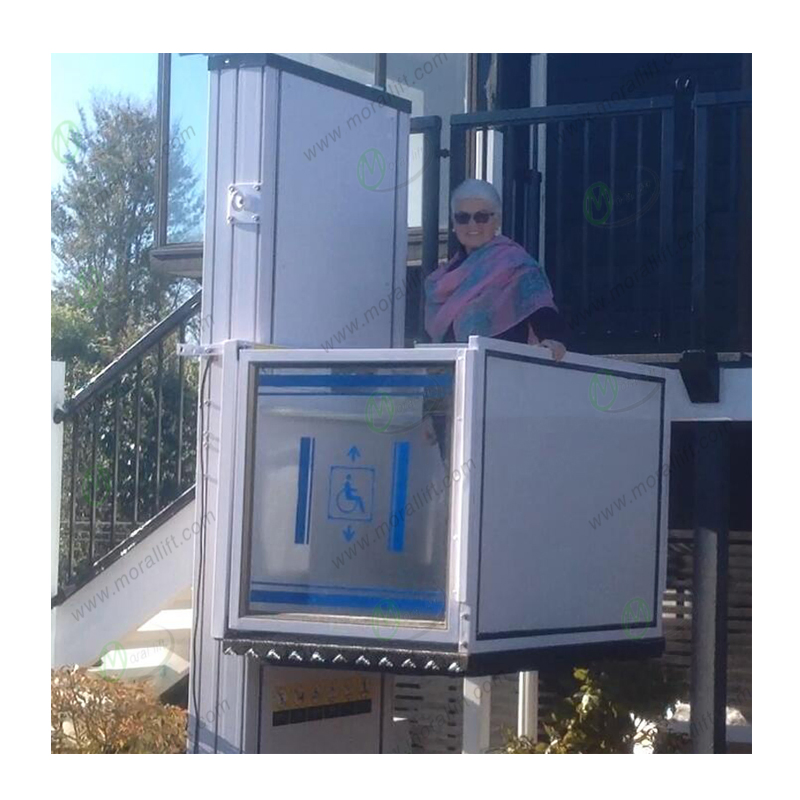

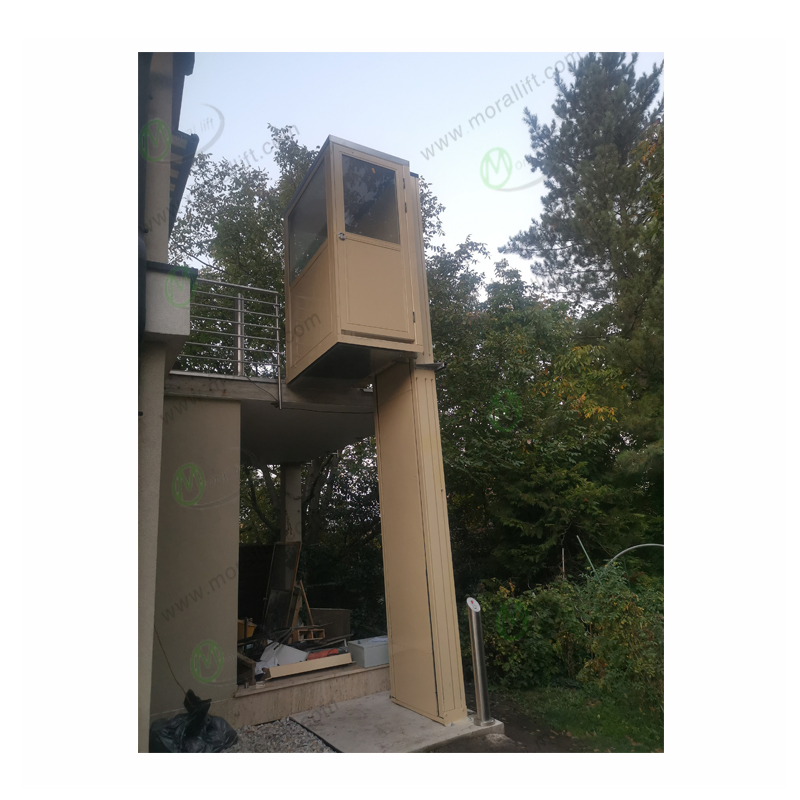

300kg Disabled Elevator Home Wheelchair Lift

1 / 5

300kg Disabled Elevator Home Wheelchair Lift

Customization:	Available
After-sales Service:	Free parts will be provided in one year
Warranty:	5 years for main structure, 1 year for parts

Send Inquiry

Product Description

Basic Information

Model NO.	VWL
Application	Warehouse Crane, Building Crane, Home/School/Hospital
Lift Mechanism	Lift Chain
Carrying Capacity	Light Level (300kg)
Driven Type	Hydraulic
Control Mode	Button/Remote Control
Platform Size	1430mm(L)* 1000mm(W) / Customized
Material	Checkered Slip-proof Aluminum Alloy / Stainless Steel

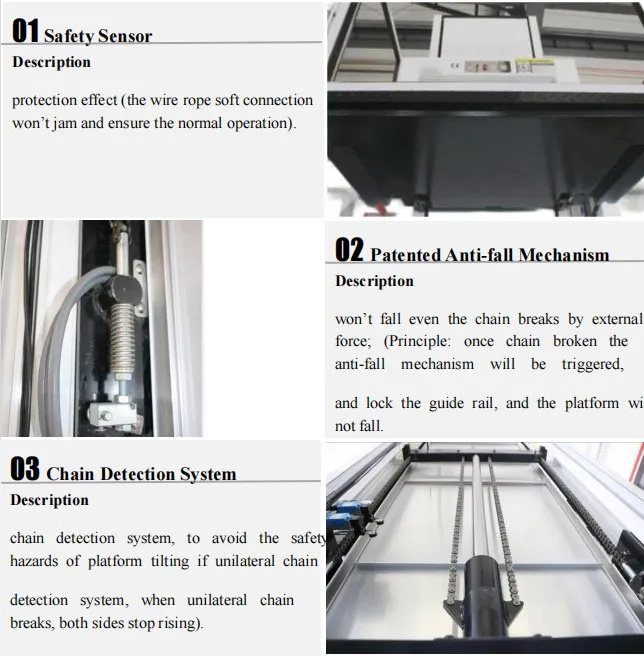

Safety Devices	Safety board, Safety sensor, E-Stop, Anti-falling system
Installation	On floor or In pit

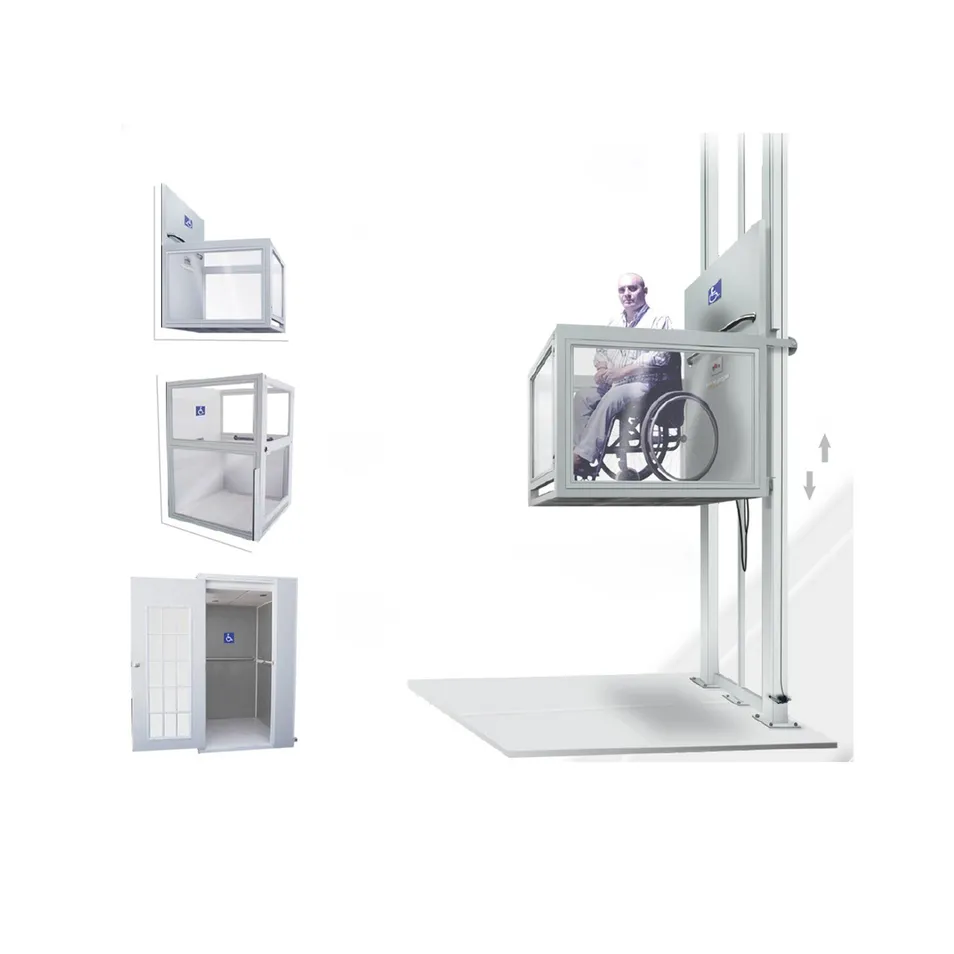

Product Description

If you have difficulty using stairs, or use a wheelchair or mobility scooter, a residential vertical wheelchair lift is a great way to ensure safe and convenient access to your home. These porch lifts are designed to withstand harsh weather conditions and serve as an affordable alternative to residential elevators.

Main Features

✓ Vertical elevating system suitable for indoor/outdoor heights up to 15 meters.
✓ Easy installation directly on the ground without complex architectural pits.
✓ Smooth hydraulic drive for passenger comfort.
✓ Emergency Descending: Manual override for power failure situations.
✓ Silent pump station for near-silent operation.
✓ Multiple controls: Remotes, column buttons, and platform buttons.

Technical Specifications

Load Capacity	300kg
Platform Size	1430*1000mm / customized
Lifting Height	0-15m / customized
Control Voltage	24V/DC
Input Voltage	220V/380V/Local power
Speed	80-100mm/s
Installation Depth	Pit 100mm or Non-pit with ramp

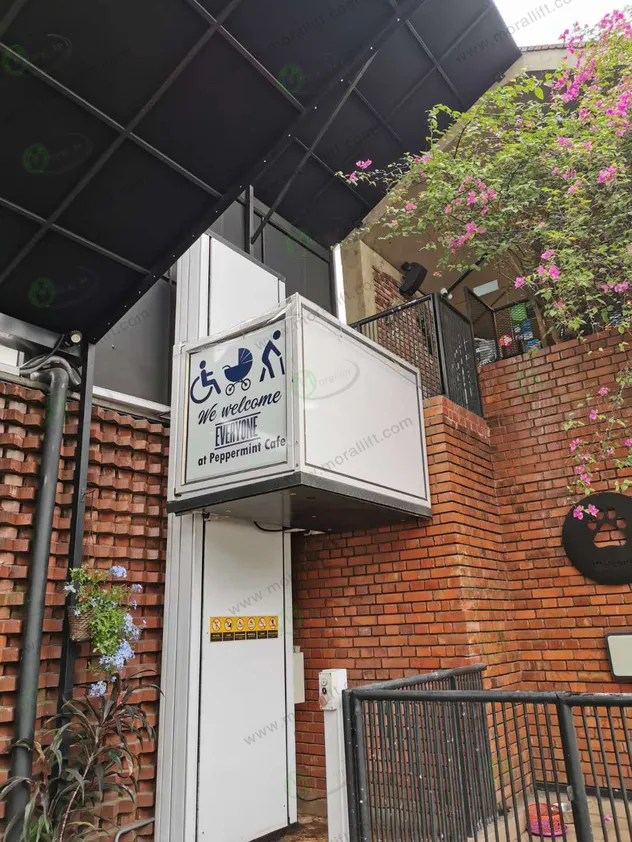

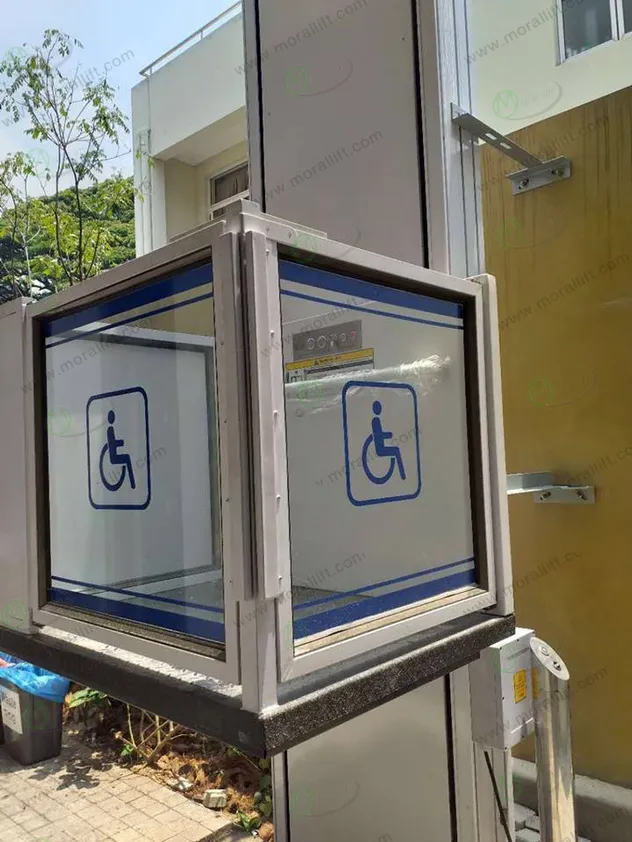

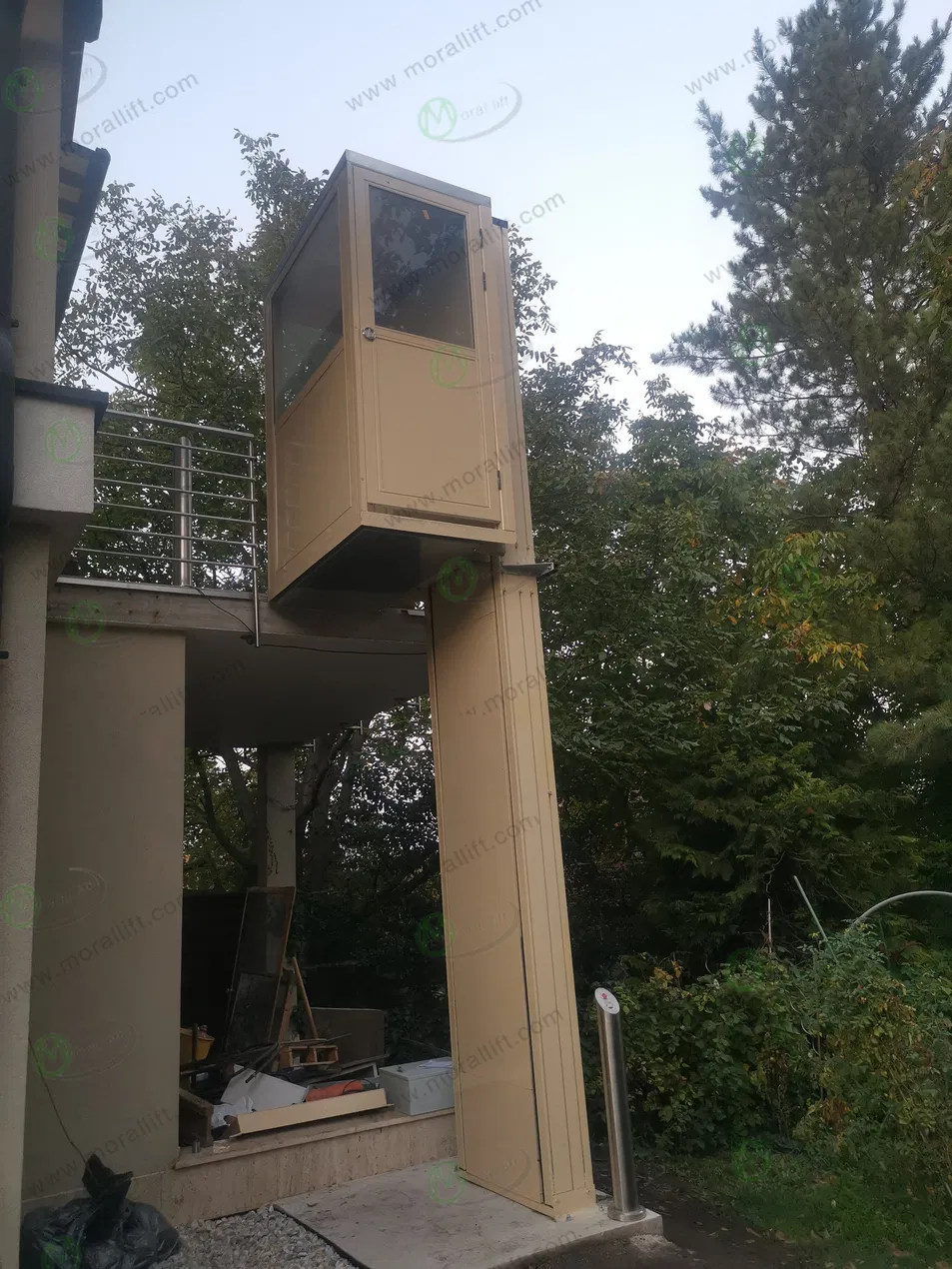

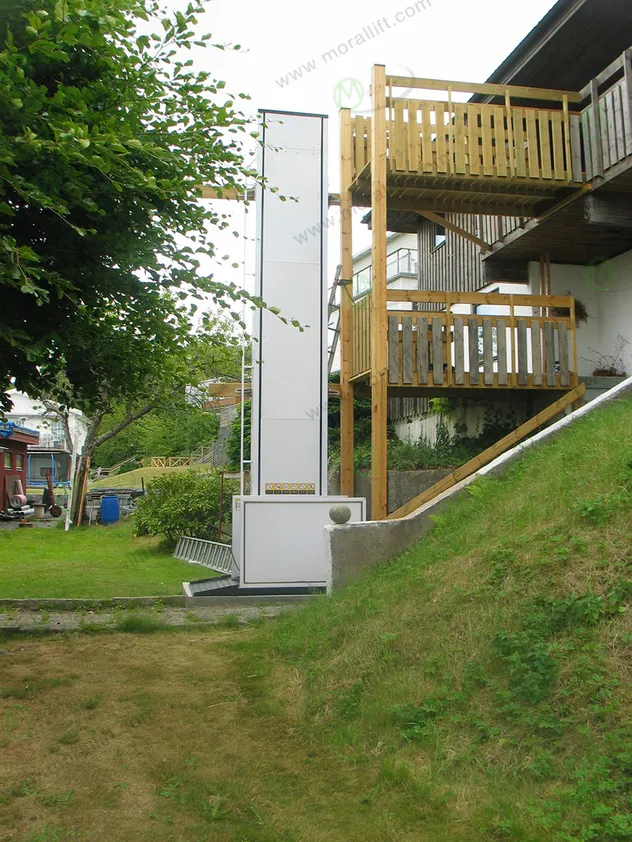

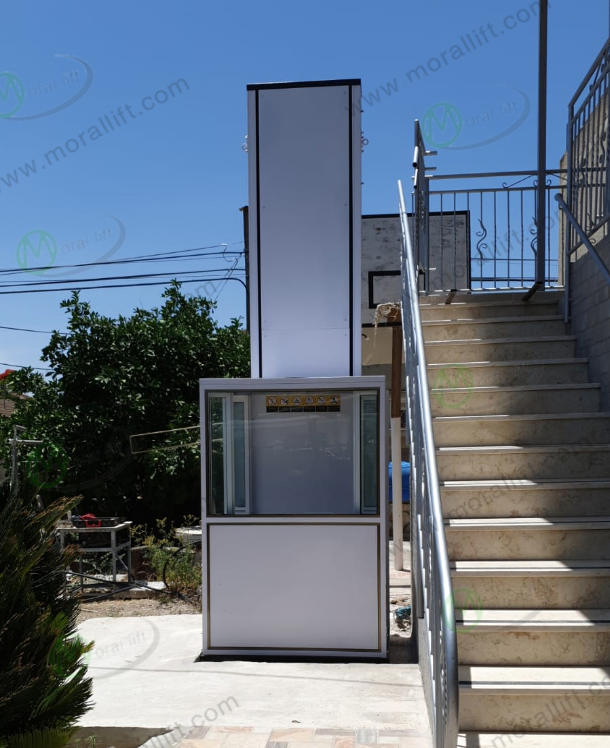

Aluminum Extruded Type Display

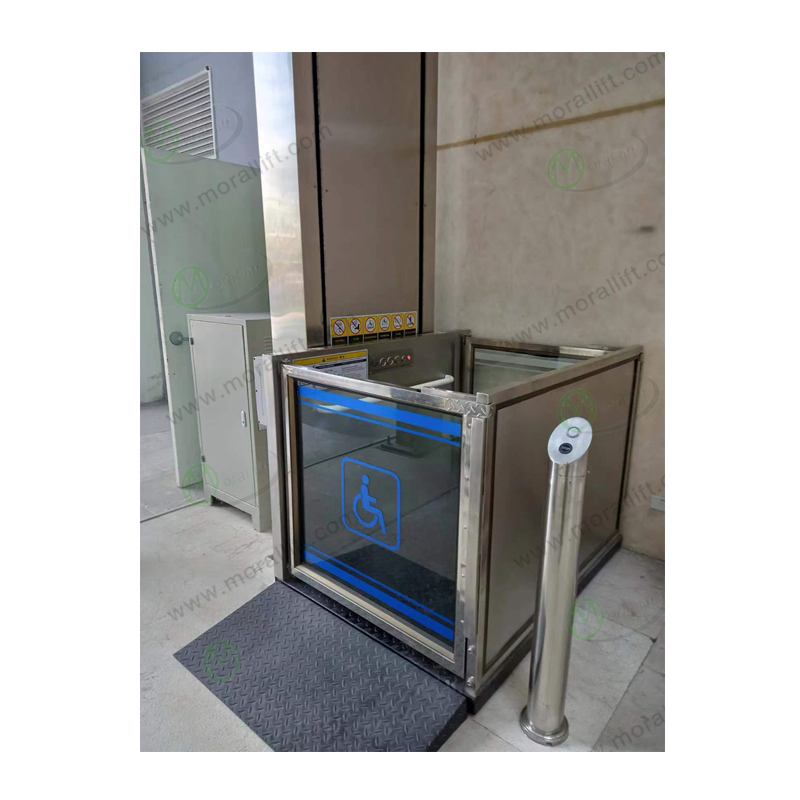

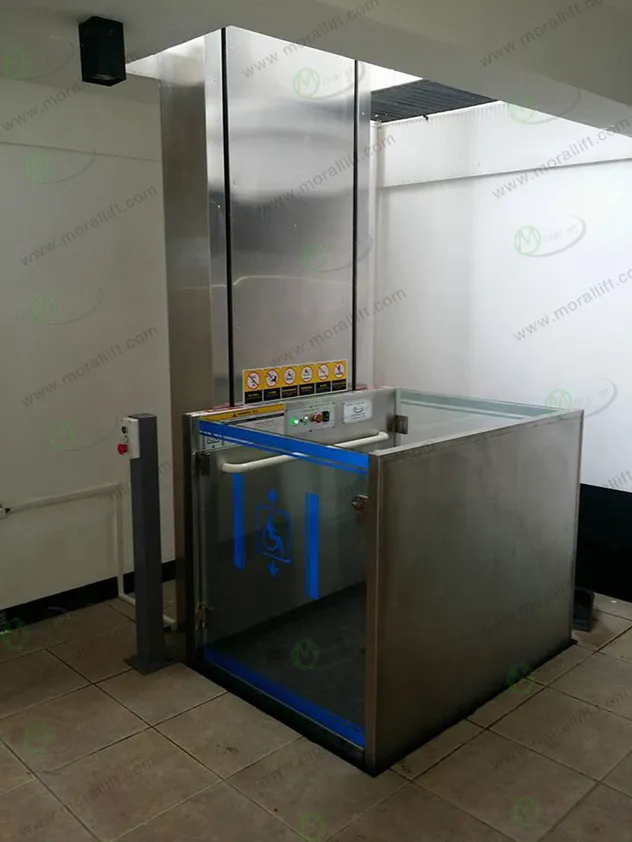

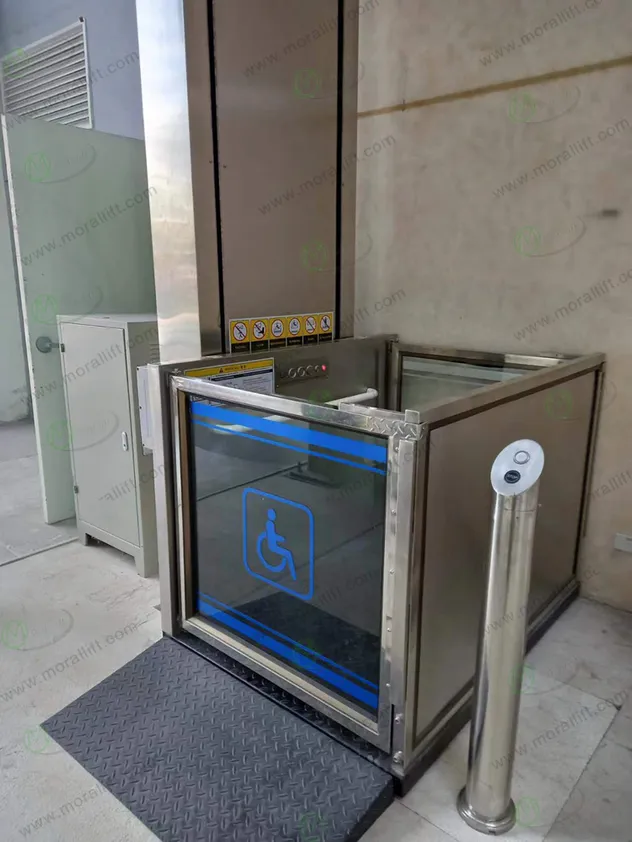

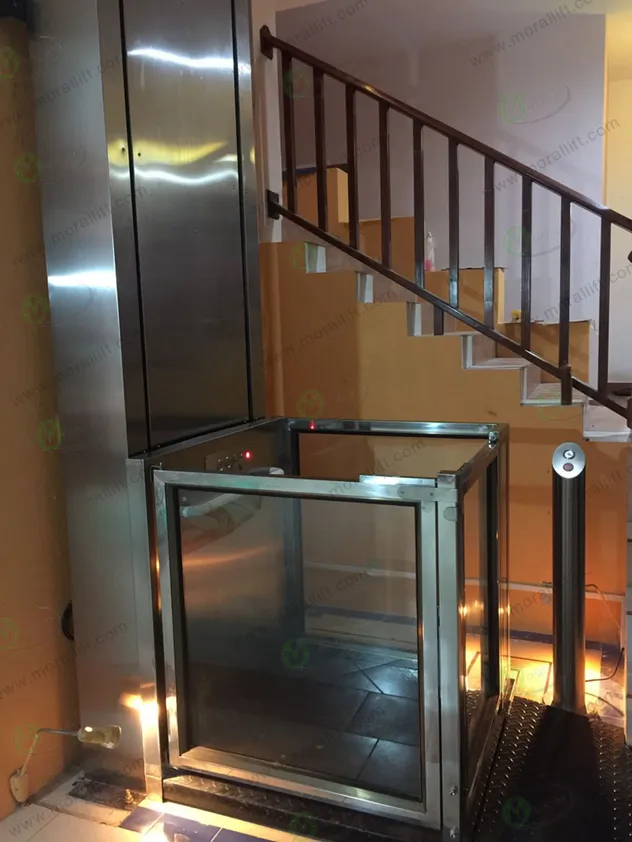

Stainless Steel Type Display

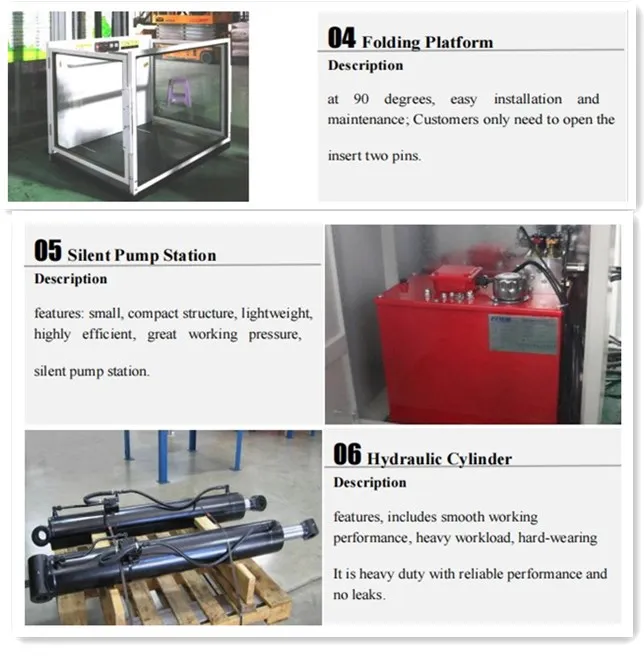

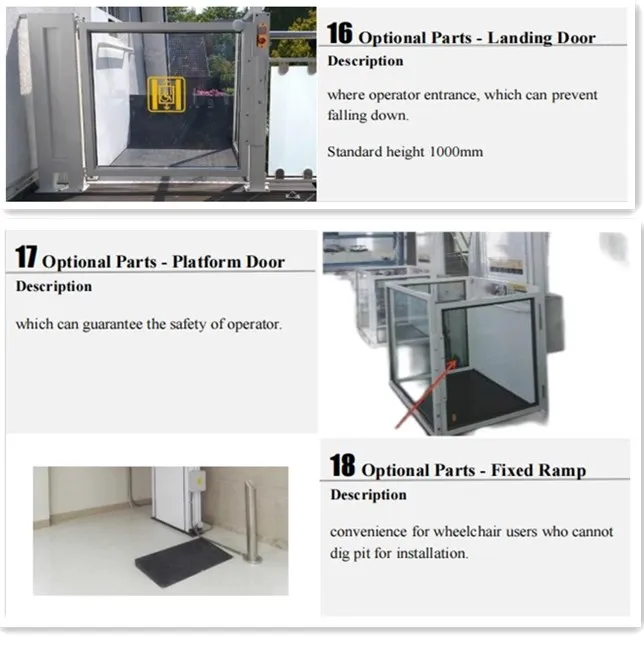

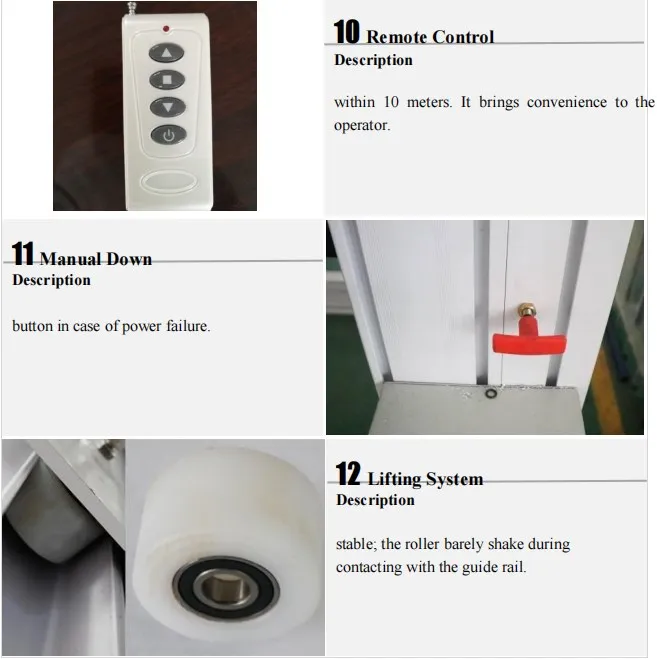

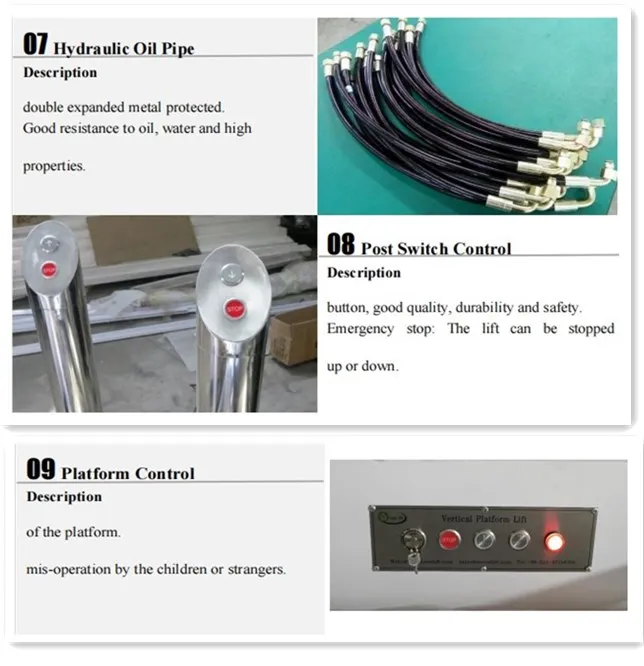

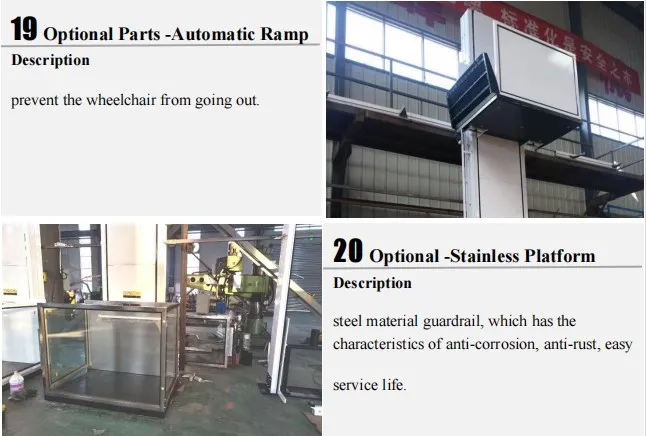

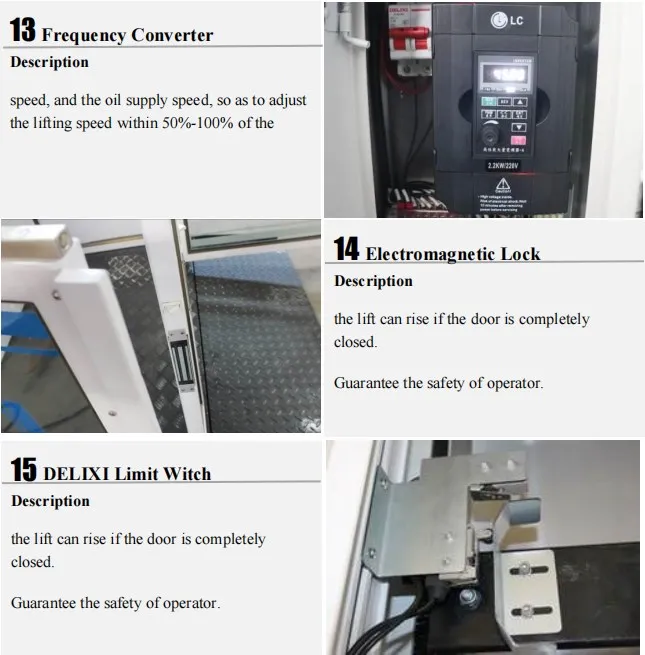

Technical Details

Packaging & Delivery

Package Size	300.00cm * 150.00cm * 150.00cm
Gross Weight	700.00kg
Lead Time	15 days (1-10 Pieces); Negotiable (>10 Pieces)
Package Type	Standard Plywood Package

Quality Assurance & Service

Why Choose Our Solution?

★ Professional design drawings provided for confirmation before production.
★ Strict CE quality management system.
★ 100% load testing performed before delivery.
★ 5-year warranty on main structure; 1-year on electrical parts.

Frequently Asked Questions (FAQ)

1. What is the maximum load capacity for this lift?

The standard load capacity for this vertical wheelchair lift is 300kg, which is suitable for wheelchairs, mobility scooters, and passengers.

2. Can the platform size be customized?

Yes, while our standard platform size is 1430mm * 1000mm, we can customize the dimensions to fit your specific installation space or requirements.

3. Does it require a deep pit for installation?

No. It can be installed directly on the floor with an access ramp, or in a shallow pit only 100mm deep for a flush entrance.

4. Is the lift suitable for outdoor use?

Absolutely. The lift is designed with weather-resistant materials (aluminum or stainless steel) and is built to withstand harsh outdoor conditions.

5. What happens if there is a power failure while using the lift?

The system includes an emergency descending valve, allowing you to manually lower the platform safely to the ground floor in case of a power outage.

6. What kind of maintenance is required?

The hydraulic system is very low maintenance. We recommend a regular check of the hydraulic oil and a visual inspection of the chains and safety sensors annually.
