Inclined Electric Wheelchair Platform Home Stair Lifts for Disabled People and The Elder

Customization: Available
After-sales Service: 24 Hours Technical Support
Warranty: 12 Months

Product Description

Basic Specifications
Model NO.: X-500L
Driving Type: Hydraulic or Screw
Capacity: 250kg
Speed: 70mm/S
Lifting Height: 1m-10m
Certifications: CE, ISO
Operation Mode: Electric
Features: Safe, Quiet
Production Date: 30 Days
Origin: China
Production Capacity: 10000sets/Month
HS Code: 8428909090
Product Description

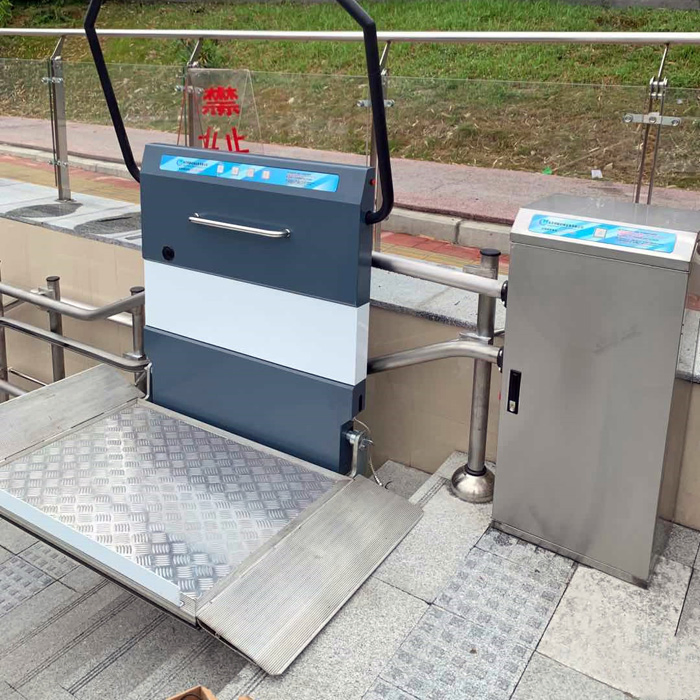

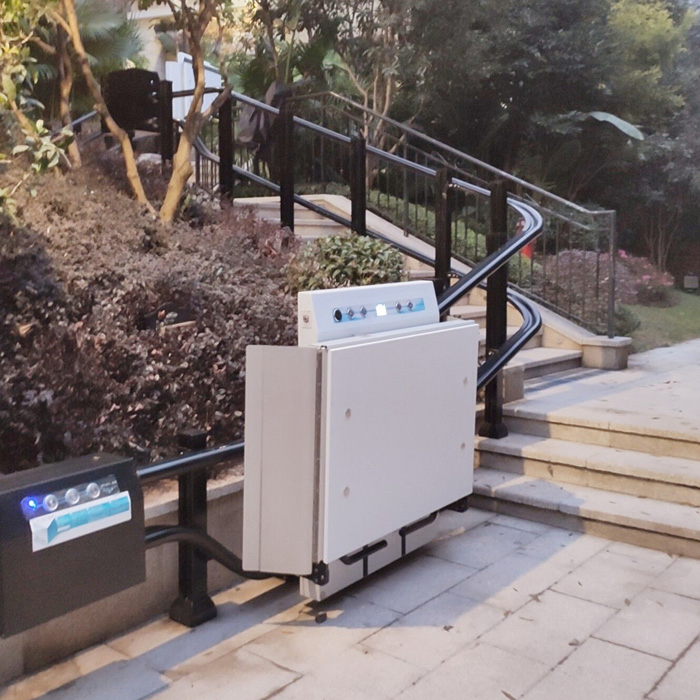

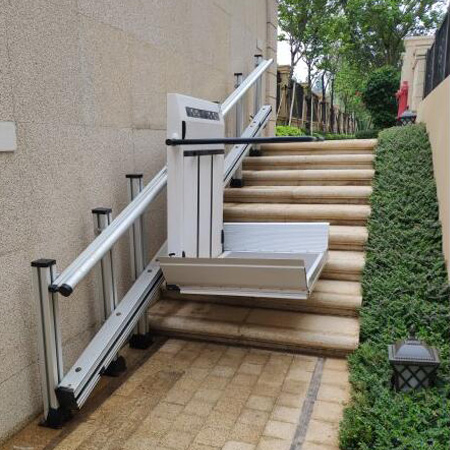

Inclined wheelchair lifts combine the best features of stairlifts and vertical platform lifts to provide transportation for wheelchairs and their users along the incline of an existing staircase.

These lifts can carry a passenger with wheelchair up and down a single flight of straight stairs by traveling along a rail system mounted alongside the stairs. Suitable for home or commercial applications, they are ideal for applications where an elevator or vertical platform lift cannot be easily accommodated.

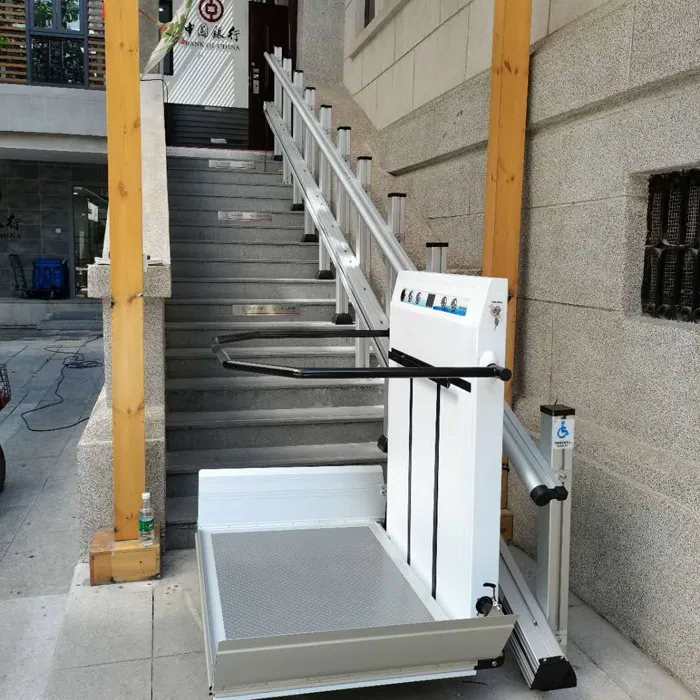

Inclined Electric Wheelchair Platform Home Stair Lift 1
Inclined Electric Wheelchair Platform Home Stair Lift 2
Technical Parameters
Standard Manned Platform Dimensions 1100MM×800MM
Loading 250KG
Speed 0~7M/MIN (Slow down when leaving or reaching a landing)
Drive System 1.5KW-VVVF compact drive system
Power AC 220/380V 50Hz-60Hz, 15A
Control System PLC
Safety Device Overspeed sensor, mechanical brake, safety sensor panels for obstacles
Surface Coating Durable electrostatic spray/paint, stainless steel options available
Platform Details
Platform Load 250 kg Platform Weight ≈75 kg
Manned Size 1100mm*800mm Folded Thickness <350mm
Guardrail Height 1000mm Battery Capacity 7AH*2
Battery Life Theoretical use without charging: 30 times

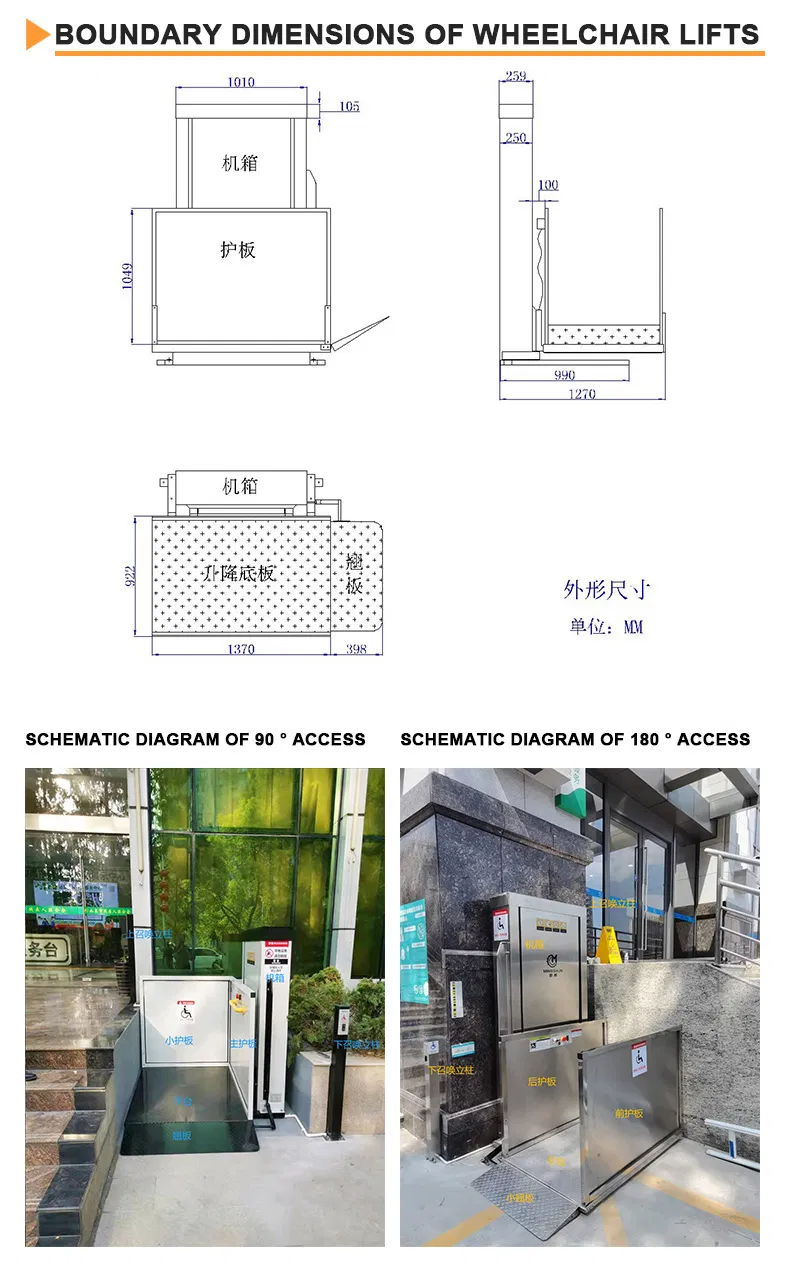

Mechanical Structure Diagram

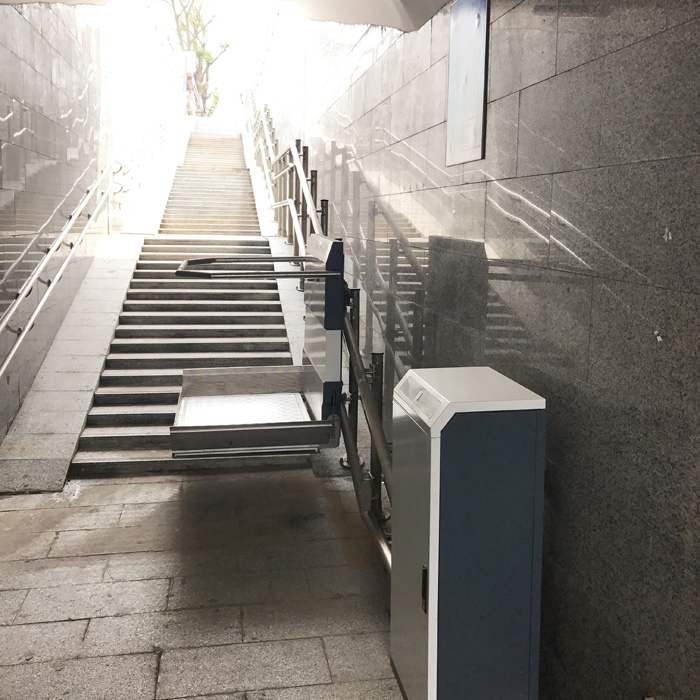

Installation Example

The inclined wheelchair lifting platform is a barrier-free safety device installed in the corridor system that uses motor traction to move up and down along the track. It consists of a drive system, guide rail, sheave chain, and mobile platform. It is a special equipment used for people who use wheelchairs or find it difficult to climb stairs, featuring independent safety protection and main control systems.

Frequently Asked Questions
What is the maximum loading capacity of the platform?
The standard loading capacity for the X-500L inclined wheelchair lift is 250kg.
What happens if the power goes out?
The platform is equipped with an emergency manual control system, allowing the platform to be lowered or folded manually during a power failure. It also features a battery backup with a theoretical life of 30 uses without constant charging.
Can it detect obstacles on the stairs?
Yes, the platform includes safety sensor panels on the bottom and ramps that detect obstacles and automatically stop the platform to ensure safety.
Is the lift suitable for outdoor installation?
The material selection includes dust, rust, and moisture prevention, making the equipment durable against environmental factors.
How much space does the lift take when not in use?
The platform is foldable with a folded thickness of less than 350mm, minimizing the space taken on the staircase.
What is the production lead time?
Standard production takes approximately 30 days after receiving the customer's deposit.
