Electric Inclined Wheelchair Lift Platform Wheel Chair Platform Home Stair Lift

Customization:	Available
After-sales Service:	Yes
Warranty:	Yes

📋

Basic Information

Model NO.

RC001

Driving Type

Gear and Rack Elevator

Capacity

<500kg

Persons

<5

Speed

<1.00m/s

Control Mode

Push-Button Control

Elevator Door

Straight Fractional Door

Motor Power

1.5kw

Load Capacity

130 Kg - 250 Kg

Platform Size

1100-800mm

Standard Voltage

220V Single-Phase AC

Transport Package

Wooden Case

🔍

Product Description

In a limited space, the problem of barrier-free vertical access on stairs is solved economically and efficiently with minimal modification to the building.

Incline Platform Wheelchair Lift mainly provides the service of up and down stairs for wheelchair users, and has the advantages of safety, reliability, simple operation, stable operation and stable system. The equipment is divided into two driving modes: sprocket drive and rack drive. The customer can select the appropriate drive mode according to the actual situation on site. The safety guards are installed on the three outward faces of the platform to stop the lift when the platform movement is blocked. The platform can be folded up when not in use to reduce the footprint.

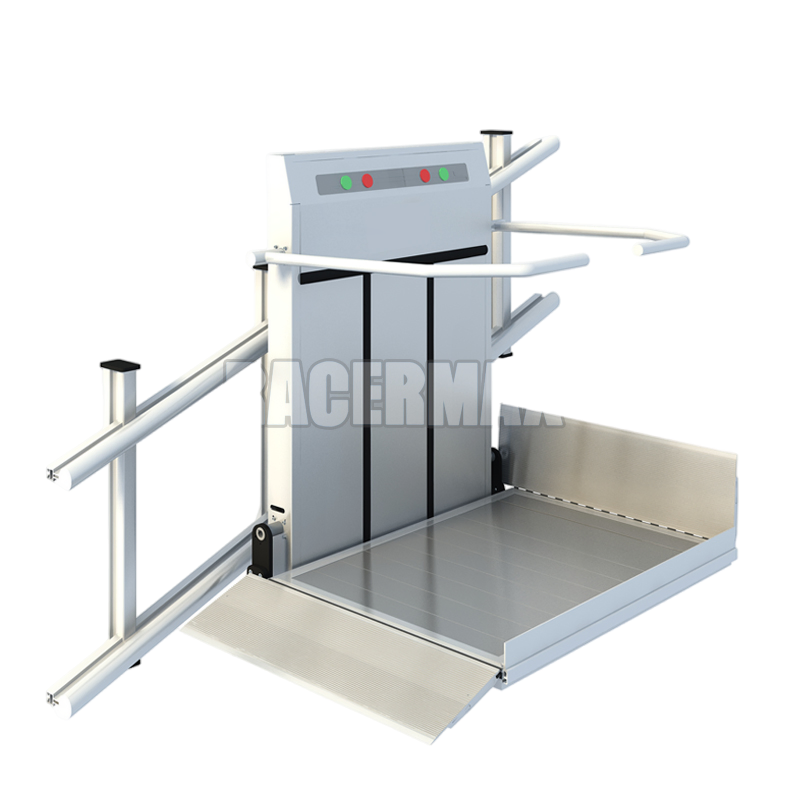

Electric Inclined Wheelchair Lift Platform

📊

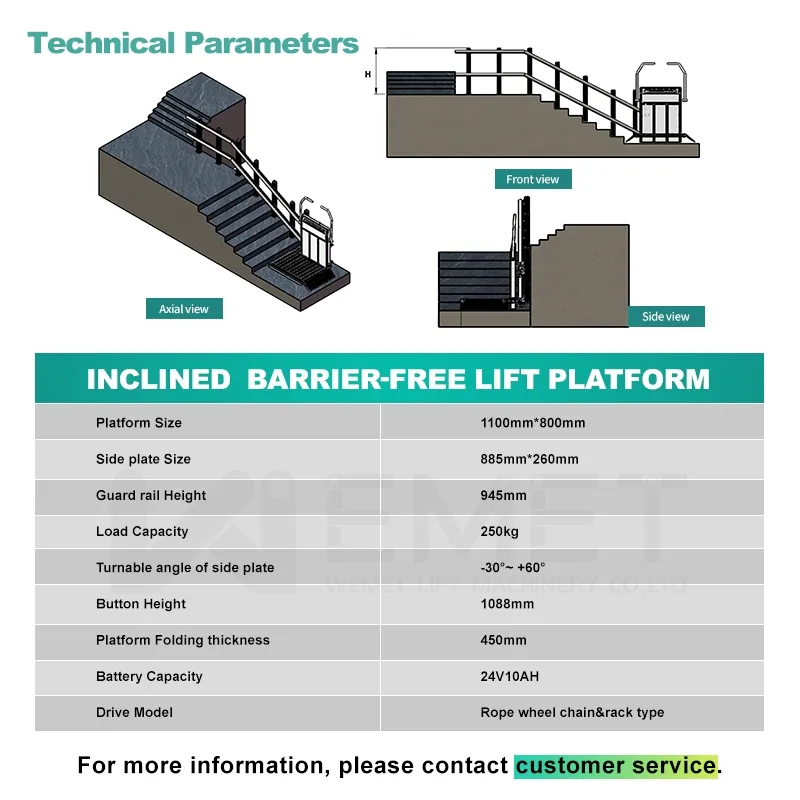

Specifications

Load capacity	250kg
Platform size	1100mm(l)*800mm(w)
Control cabinet size	500mm(l)323mm(w)*553mm(h)
Safety ramp size	885mm(l)*260mm(w)
Safety ramp working range	30 degrees below zero - 60 degrees
Platform thickness (folded)	323mm
Guardrail height	345mm
Motor power	1.5kw
Power input	220v / 50Hz / 25AH
Battery capacity	24V 10AH

🧡

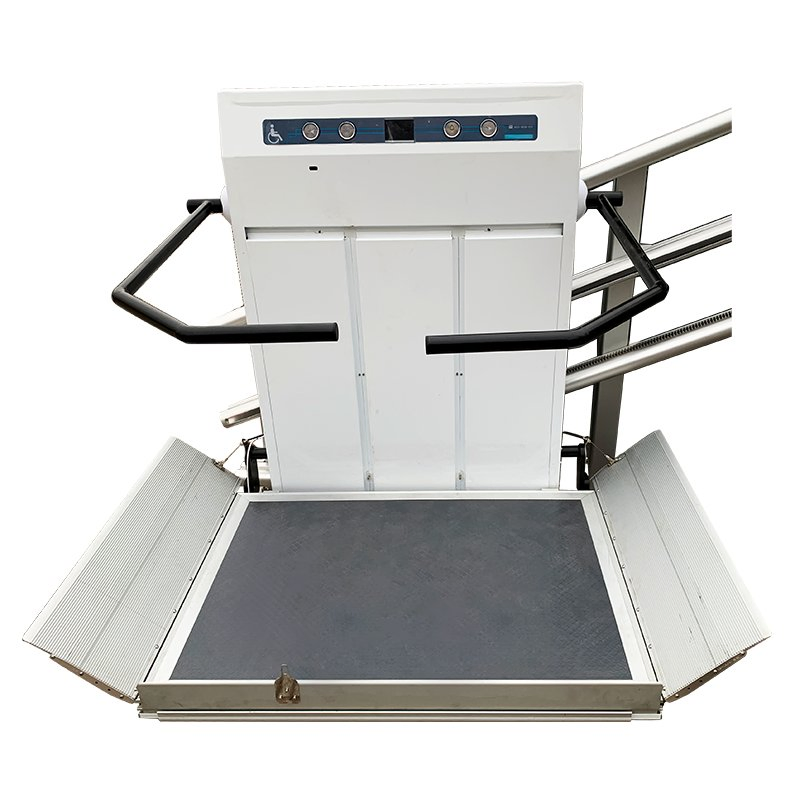

Folding Design: Tray and side panels fold up when not in use to minimize obstruction.

🧡

Anti-collision Function: Guardrails detect displacement and suspend operation for safety.

🧡

Battery Backup: Ensures device folding and operation even without external power.

🧡

Emergency Stop: Immediate braking mechanism via manual emergency button.

🖼️

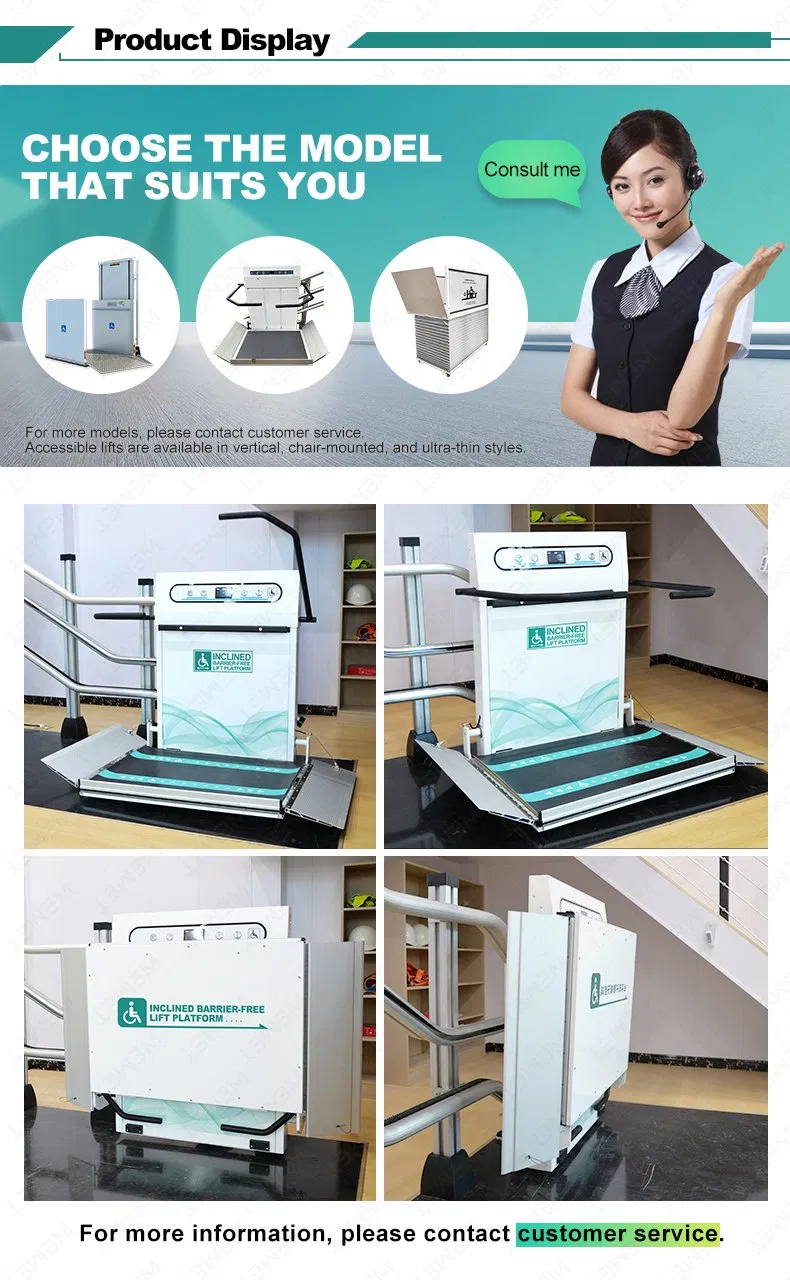

Product Gallery

❓

Frequently Asked Questions

1. What is an accessible lift platform?

It is a hydraulic or electric device used for the vertical transportation of people with mobility impairments or the elderly. It eliminates the need for deep pits, making it ideal for public buildings and private residences.

2. Do your lift platforms meet safety and quality standards?

Yes, our products strictly adhere to major international standards, including the EU's Machinery Directive (MD) and ISO standards. Core components are CE certified to ensure global compliance.

3. Is the installation process complicated?

The platforms are designed for ease of installation with minimal damage to structures. Most models do not require a separate machine room or a deep pit.

4. How is maintenance and after-sales support handled?

We provide remote technical support, multilingual manuals, and a steady supply of original spare parts via international logistics to ensure long-term reliability.

5. What information is needed for a quote?

To provide an accurate quote, please provide the installation height, required load capacity, platform dimensions, and photos of the installation site.

6. Can the platform be used during power outages?

Yes, the device is equipped with battery power to ensure that it can still be folded and operated in the absence of external power.
