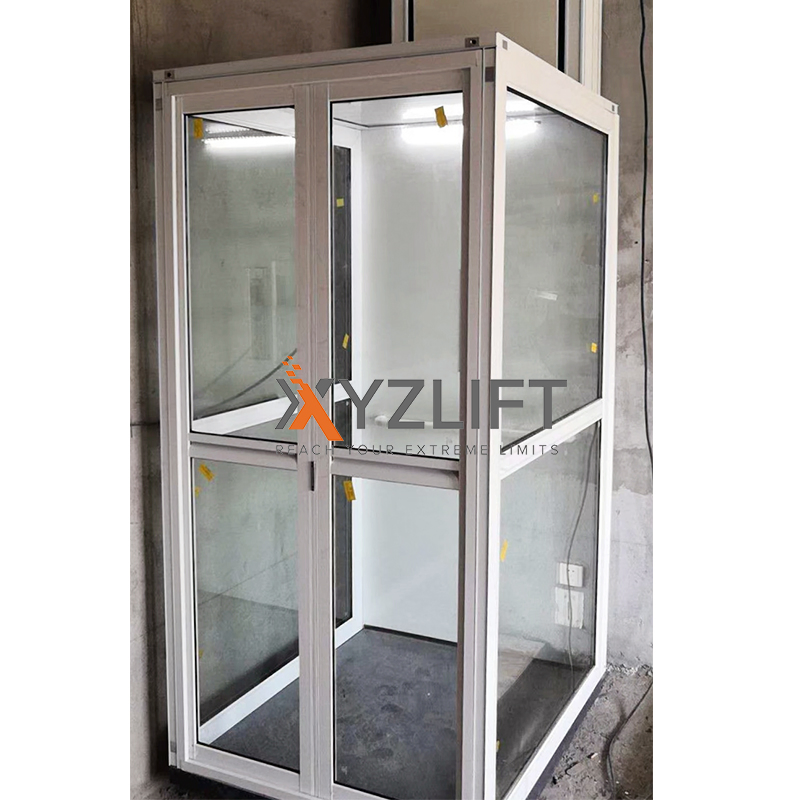

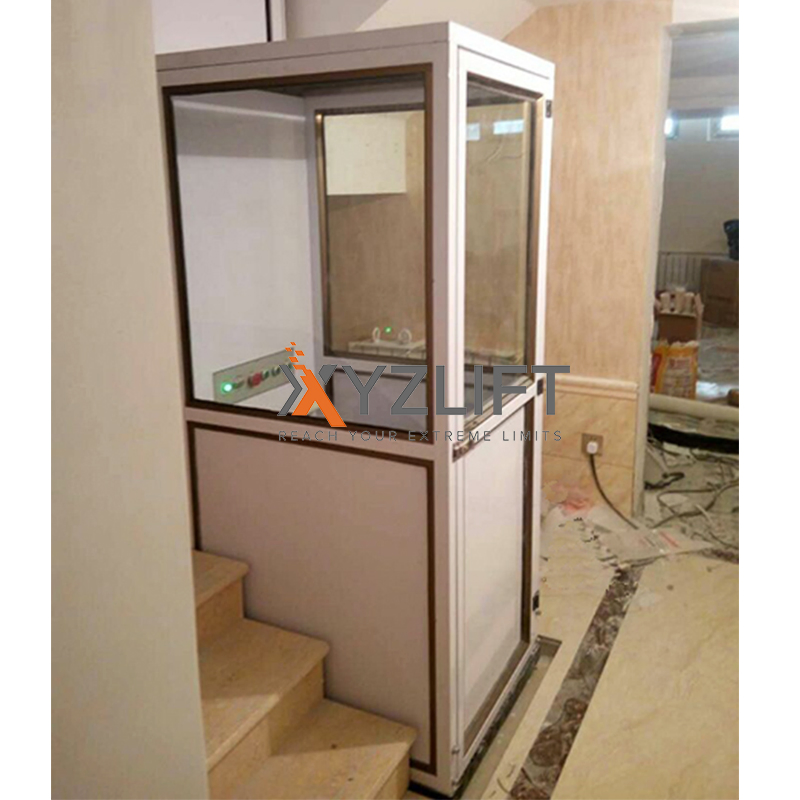

Xyzlift Hot Sale Hydraulic Driven Home Vertical Wheelchair Lift with Cabin

1 / 5

Xyzlift Hot Sale Hydraulic Driven Home Vertical Wheelchair Lift with Cabin

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

XYZVPL-2

Driven Type

Hydraulic

Feature

Explosion-Proof, Insulating

Certification

CE, ISO 9001

Material

Aluminum Alloy/ SS304

Safety Standard

EN81-41

Travel Height

5m - 15m

Load Capacity

250kg or Customized

Power Supply

220V/50HZ

Production Capacity

5000 Units Per Year

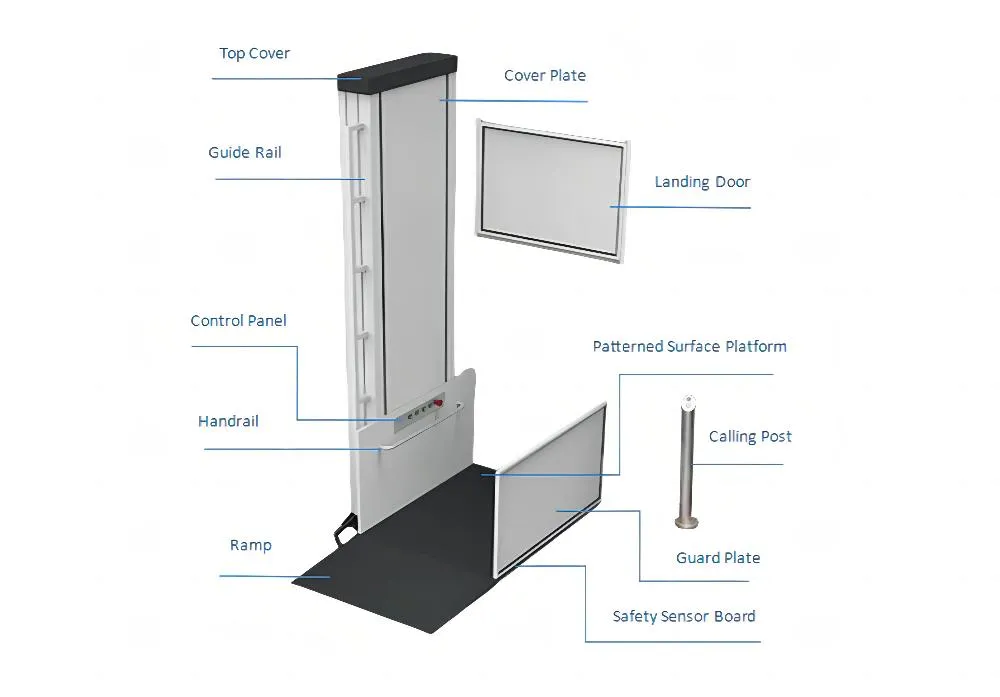

Product Overview

Hot Sale Hydraulic Driven Home Vertical Wheelchair Lift with Cabin

The Vertical platform lift is built with the end user in mind. Passenger comfort, simple-to-use operation and safety features allow people with limited mobility to operate the lifts independently or with assistance from an attendant. It is designed to provide cost-effective access to raised porches, decks, and other elevated areas for residential and commercial applications. Can easily be installed in private homes or public buildings.

Technical Specifications

Parameter	Details
Model	XYZVPL-2
Load Capacity	250kgs
Platform Size	1330mm*900mm (Customizable)
Travel Height	Up to 15 meters
Normal Speed	60mm/s
Entry & Exit	90°/180°/Three-sided
Motor Power	2.2kw
Drive System	Hydraulic driven
Standard	EN81-41

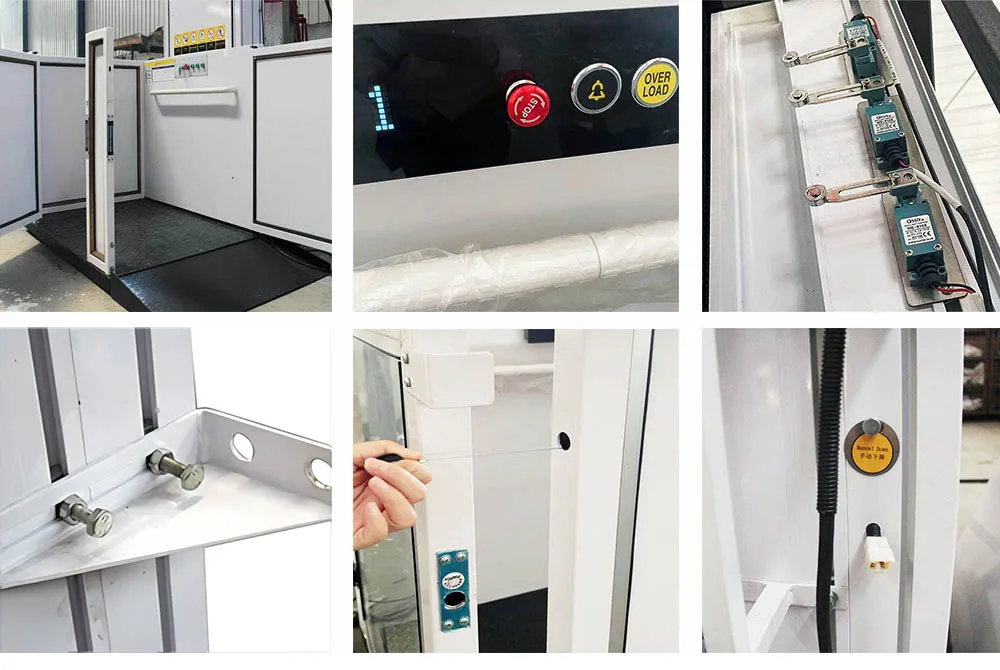

Detail Features

Optional Directions: Entrance/exit direction available in 90°, 180°, or three-sided access.
Limit Switch: Safety feature that stops the platform if the upper leveling switch fails.
Mounting Bracket: Slide adjustable bracket for secure wall attachment at any height.
Manual Emergency Opening: Circular plug access allows manual door lifting during power failures.
Emergency Manual Down: Manual lowering valve allows safe descent if power is lost.

Installation & Customization

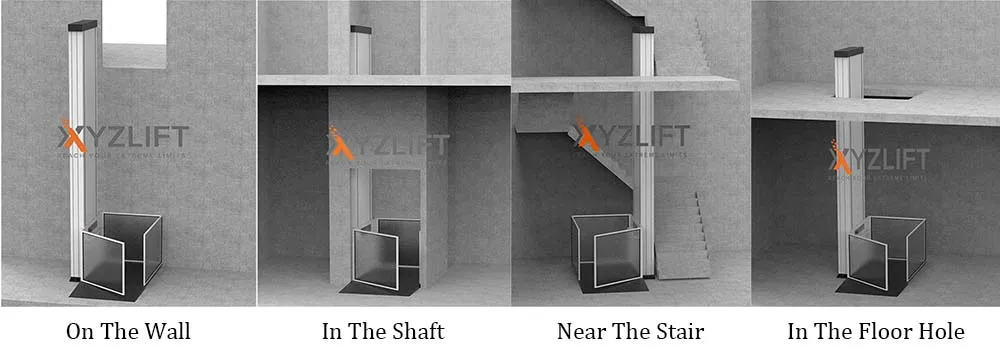

Based on extensive field experience, we have identified 4 common installation scenarios. Technical teams offer 3D designs for pre-production confirmation tailored to specific installation sites.

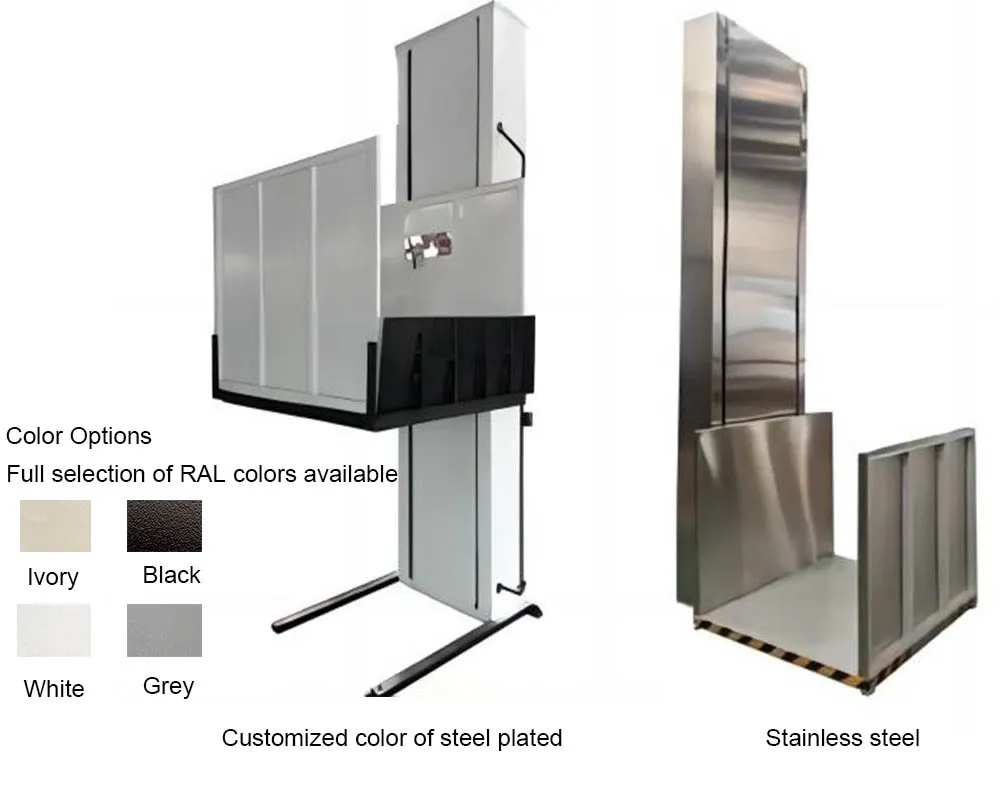

Choose between stainless steel or steel plates available in various colors to perfectly complement any architectural environment.

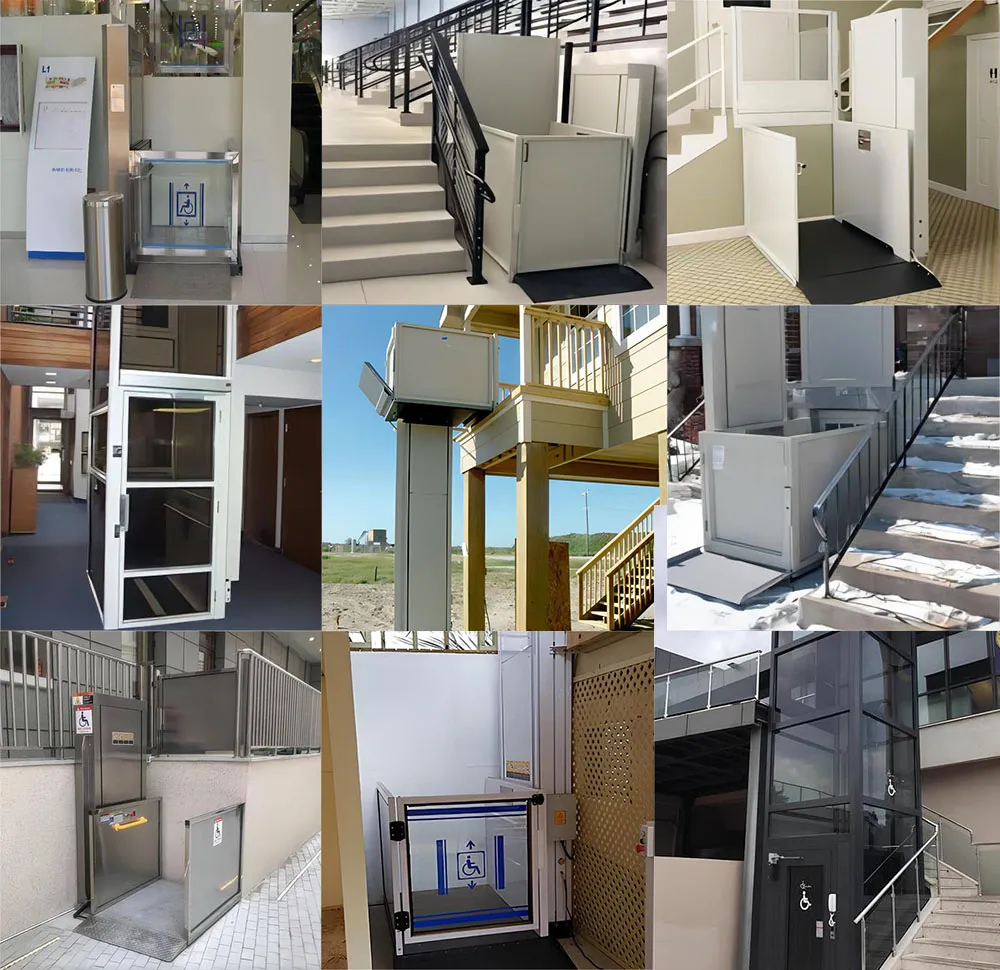

Project Showcase & Certifications

Packaging

Frequently Asked Questions

What details are required for specifying a vertical lift platform?

To precisely tailor a lift, we need the platform size (standard is 1430*1000mm), travel height, loading/unloading directions (one side, opposite, or three sides), and any additional options like glass shafts or landing doors.

How many floors can a vertical lift platform travel?

Our vertical lift platforms can travel up to a height of 16 meters, which effectively covers up to 5 floors.

What color options are available for customization?

We offer full color customization. Simply provide your preferred RAL color number, and the platform's finish will be customized to match your choice.

What safety standards do these lifts comply with?

The vertical platform lifts are designed and manufactured in compliance with international standards, including CE certification, ISO 9001, and the EN81-41 safety standard.

Is this lift suitable for outdoor installation?

Yes, the VPL (Vertical Platform Lift) is designed for both indoor and outdoor use. It is ideal for villas, banks, factories, or warehouses to solve floor-to-floor transportation challenges.

What is the standard load capacity and drive system?

The standard load capacity is 250kg (customizable), and it utilizes a reliable hydraulic drive system powered by a 2.2kw motor.
