Electric Hydraulic Wheelchair Elevator Lift for Van Minibus

Customization:	Available
After-sales Service:	7/24 After-Sales Service
Warranty:	1 Year

Send Inquiry

Product Description

Basic Information

Model NO.

DN-880/880S/880U

Type

Wheelchair Lift System

Material

High-strength Steel

Loading Capacity

350kg

Voltage

12-24V

Max Lifting Height

880mm

Operation

Fully Automatic

Control

Remote Control / App

Product Description

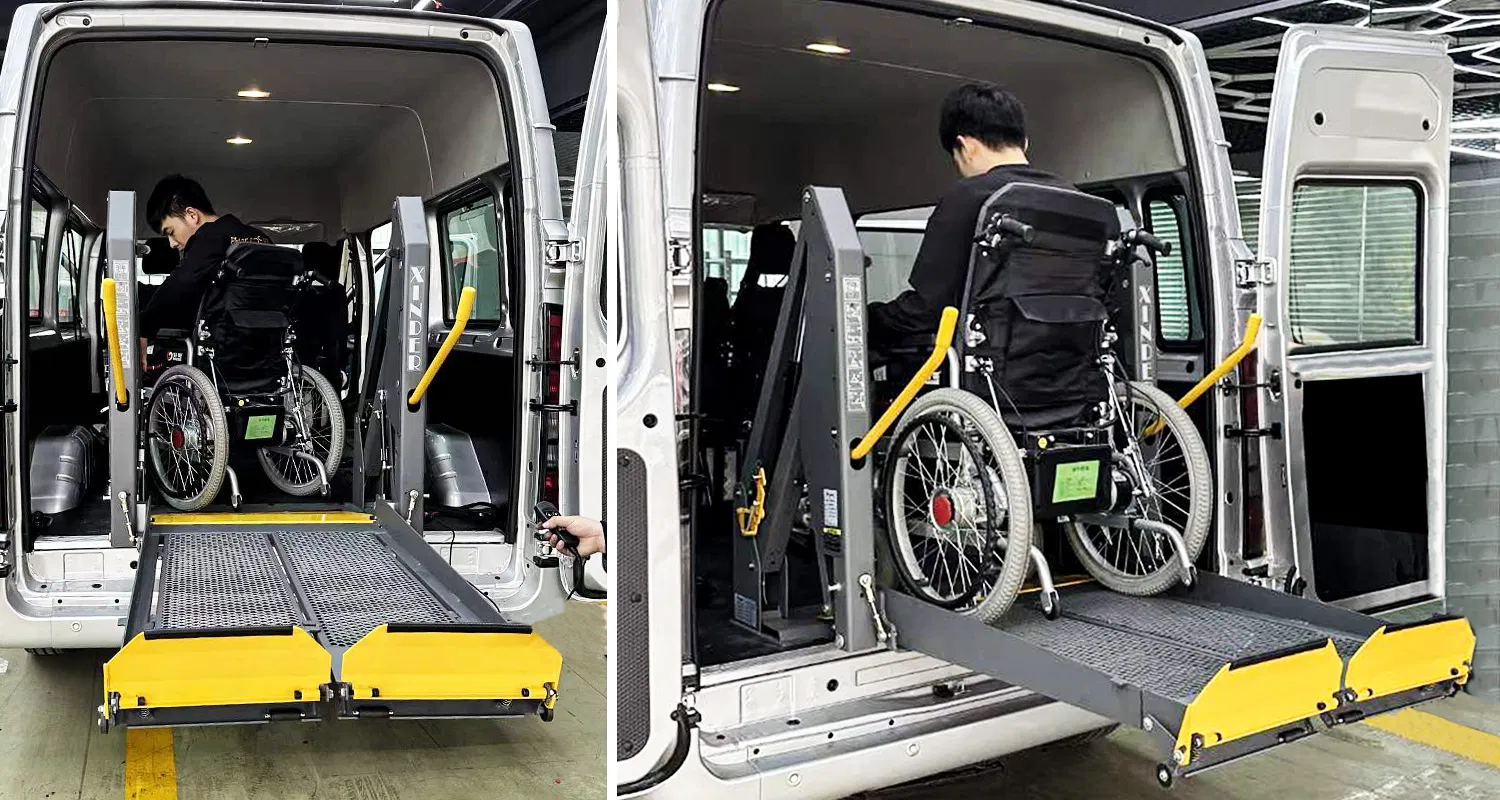

WL-DN-880S Series Wheelchair Lift: This lift is the premier choice for vehicle accessibility. Designed for installation at either the rear or side door, it ensures excellent visibility for both passengers and the driver. Powered by a robust hydraulic system, the lifting, lowering, and rotation movements are fully automated and easily operated via a wired remote control.

Users can select from three platform configurations to suit their specific needs: Solid, Split, or Folding platforms.

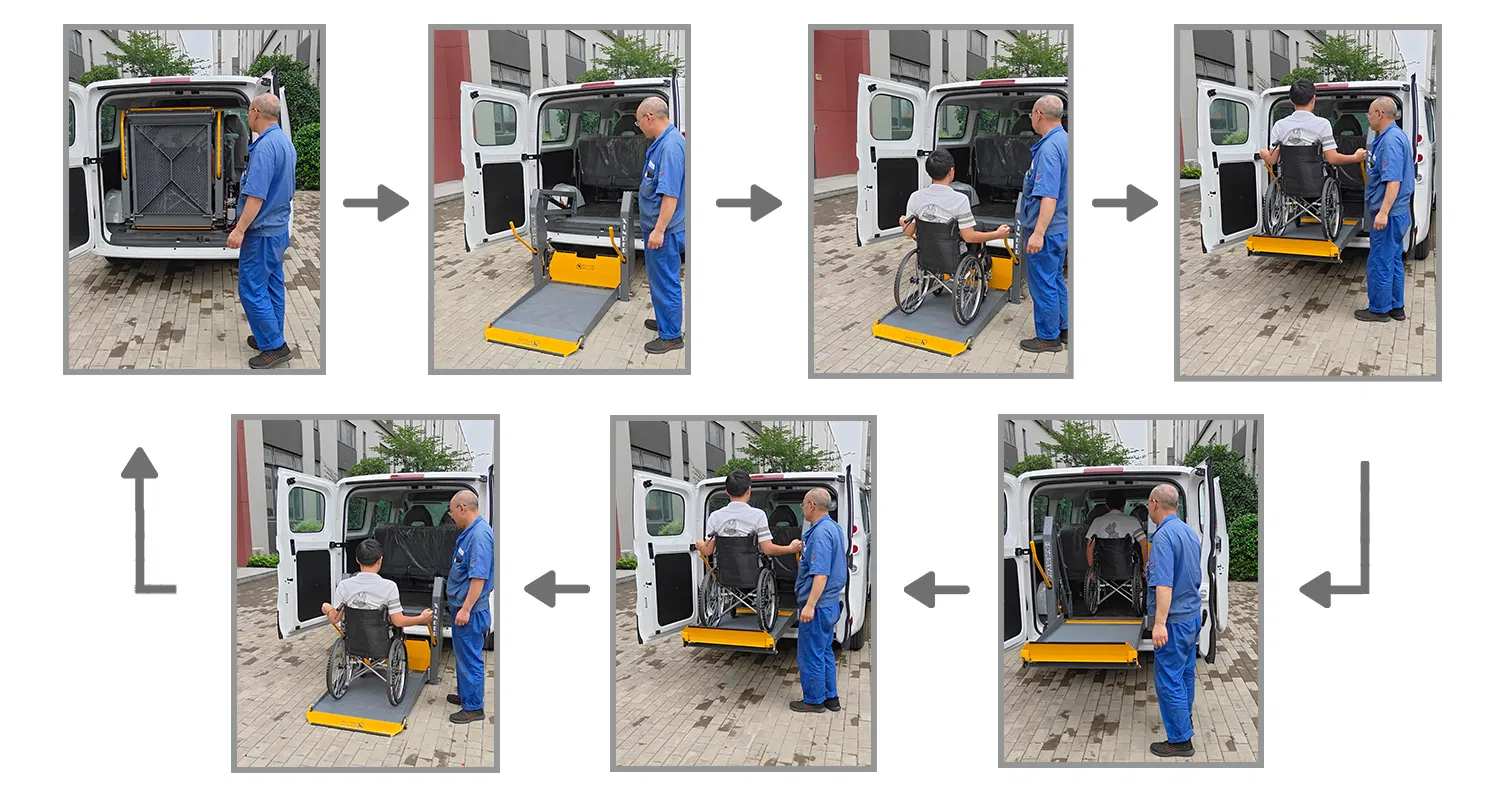

Usage Process

Applicable Vehicles & Platform Modes

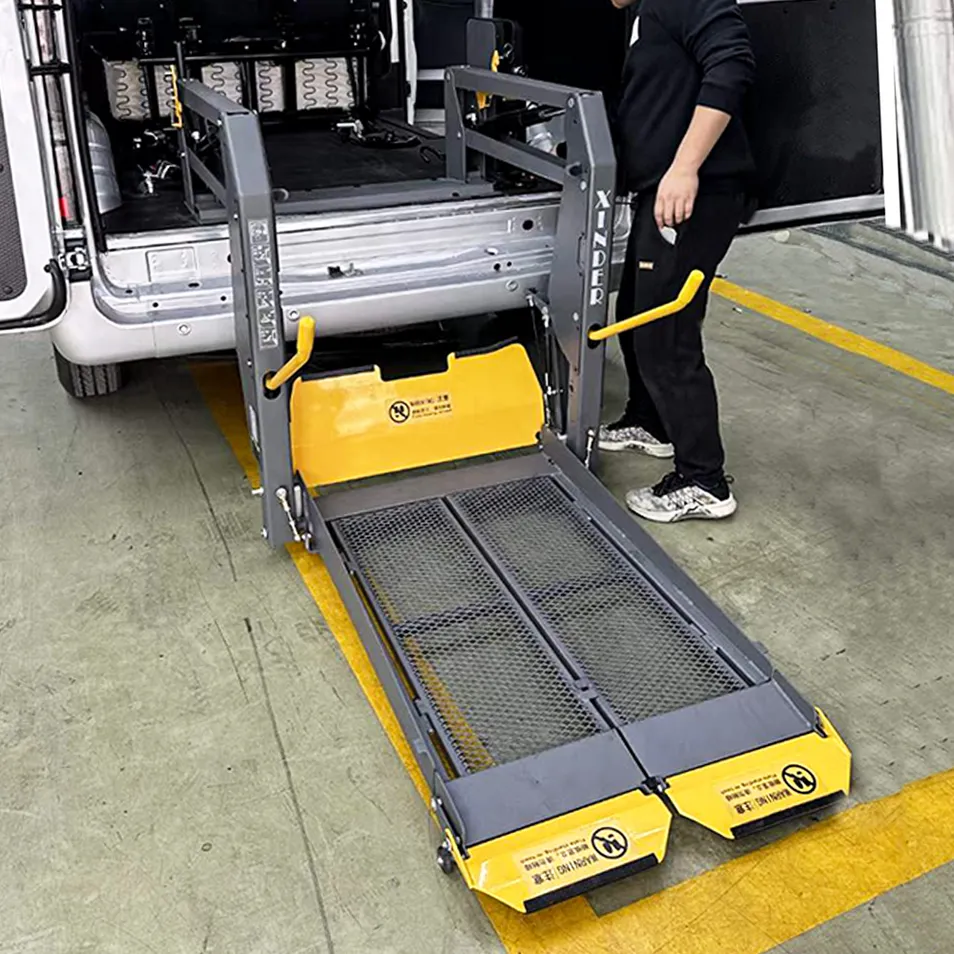

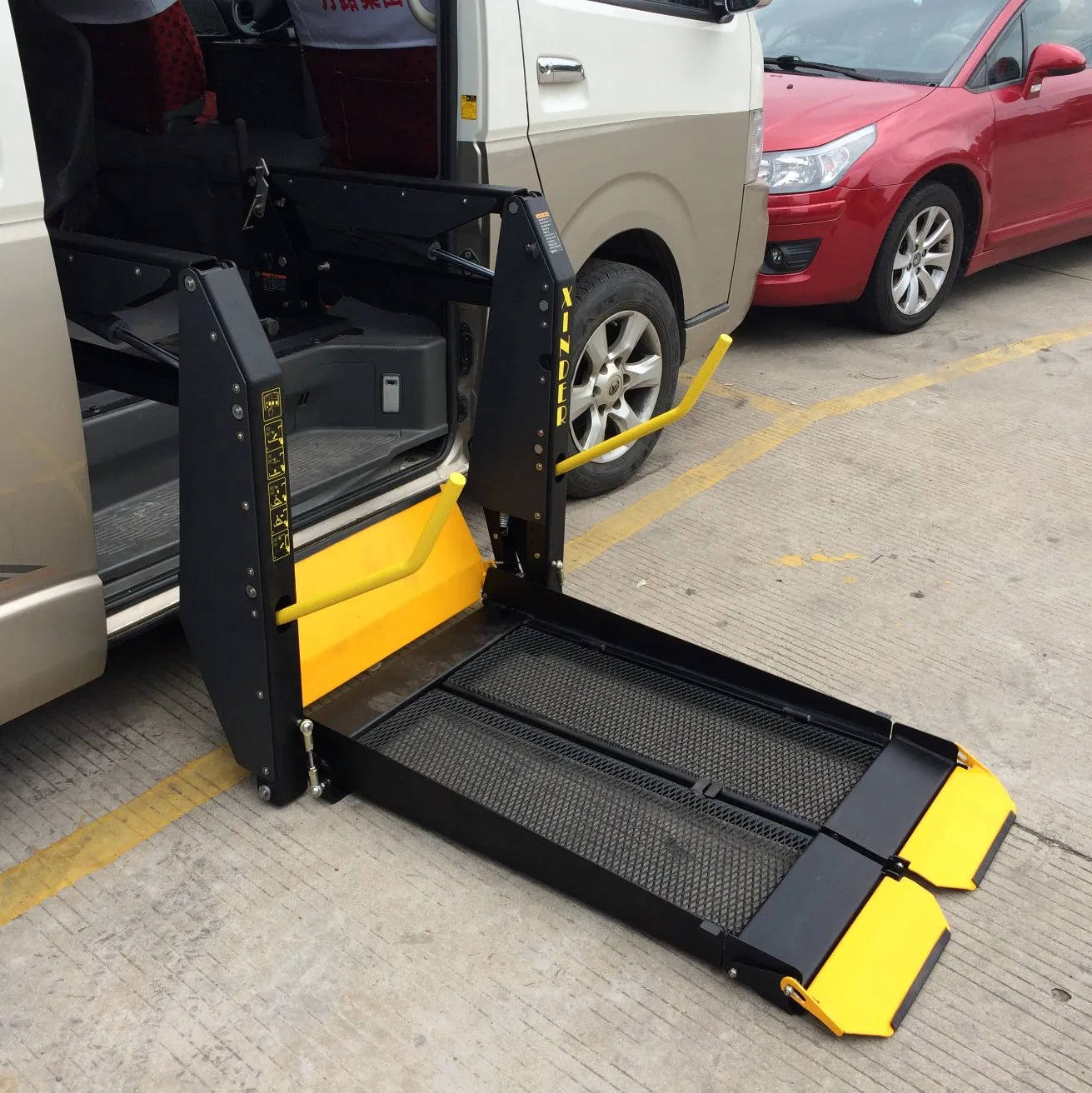

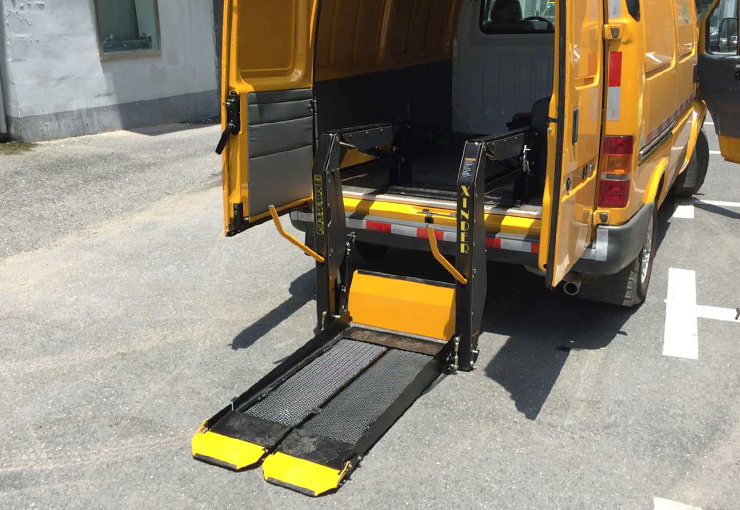

Platform Open Status

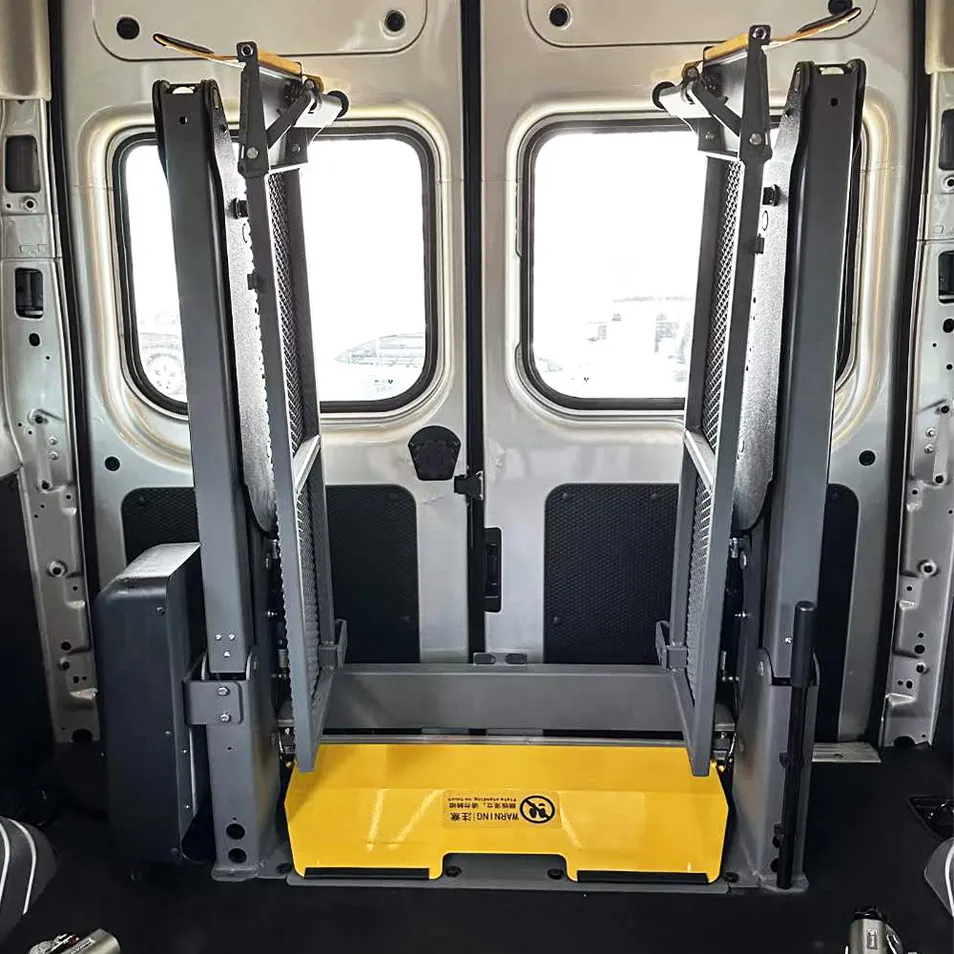

Platform Retraction Status

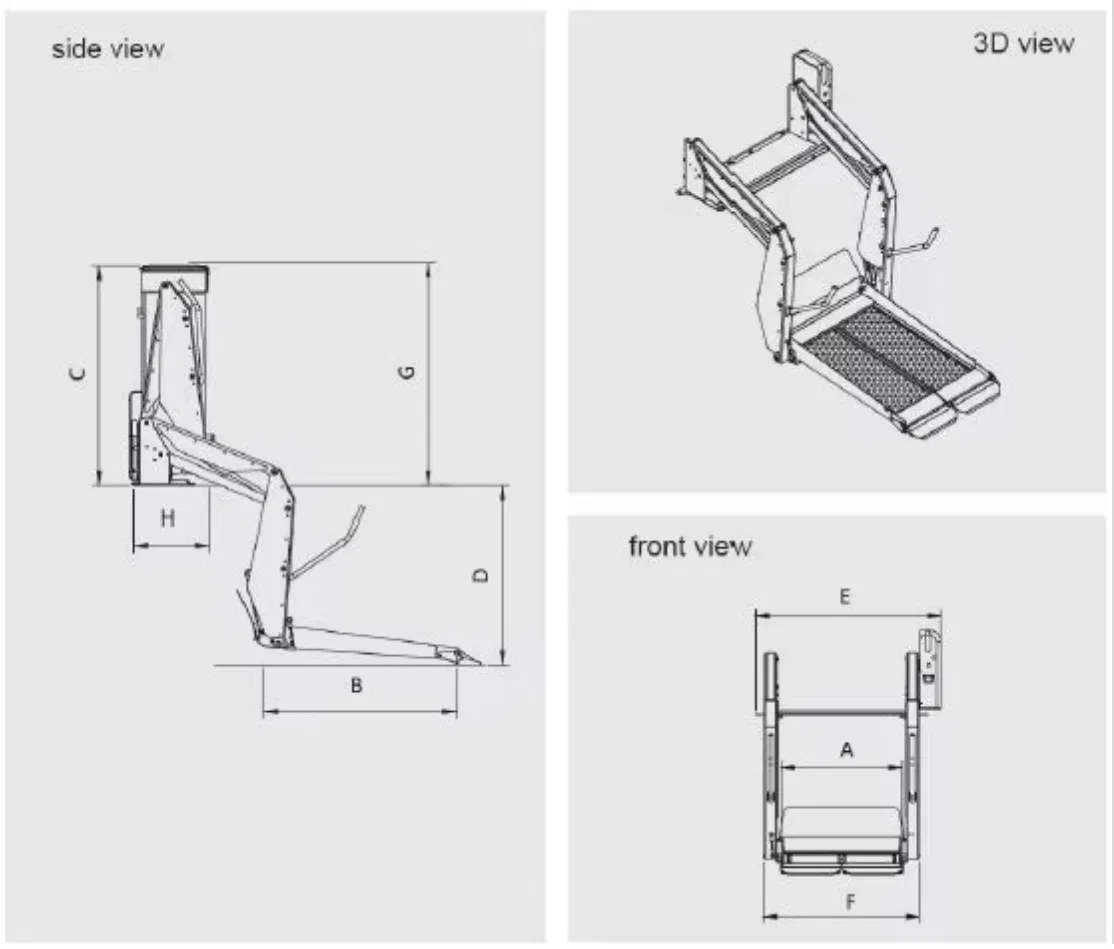

Technical Specifications

Model	Platform Net Width (A)	Platform Net Length (B)	Overall Height (C)	Max Lifting Height (D)	Overall Width (E)	Door Net Width (F)	Door Net Height (G)	Depth (H)
DN-880S-1150	720mm	1150mm	1235mm	880mm	1137mm	1150mm	1230mm	490mm
DN-880S-1250	820mm	1215mm	1300mm	880mm	1237mm	1250mm	1330mm	490mm

Key Functions & Features

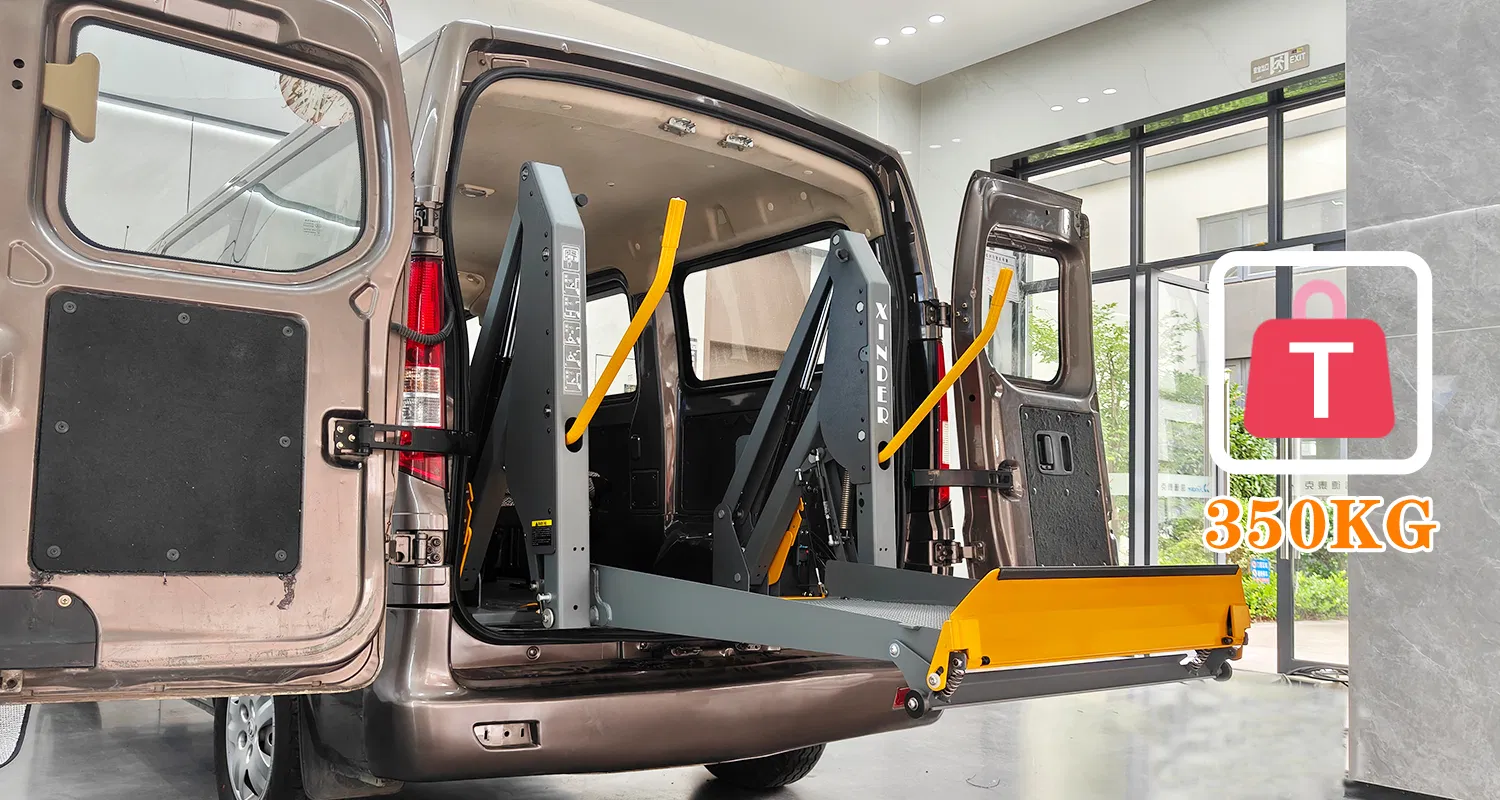

High Load Capacity: High-strength structural design allows for a 350kg capacity, supporting both the wheelchair user and an assistant simultaneously.

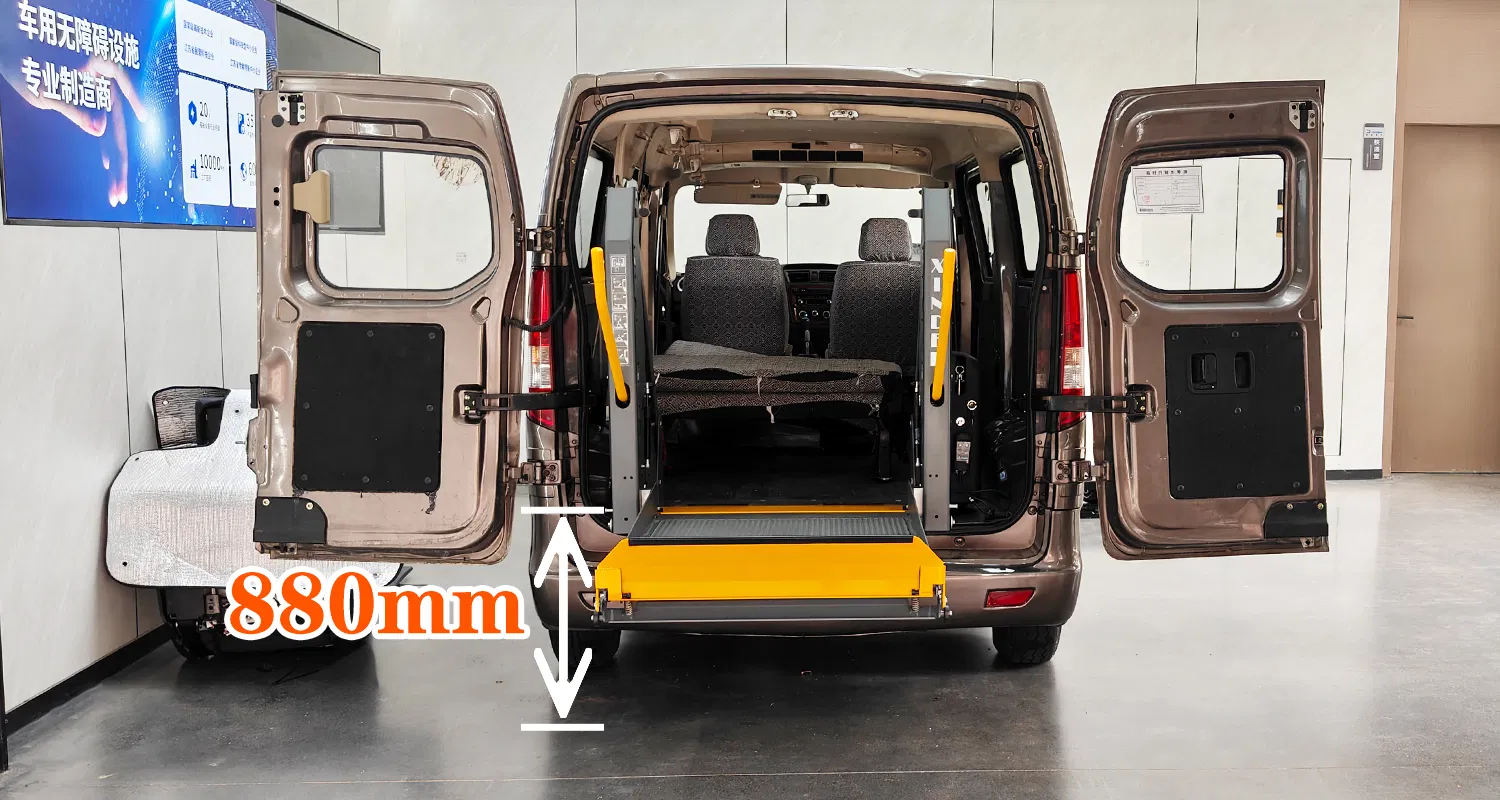

Long Descent Stroke: An 880mm ultra-long lowering stroke meets modification requirements for most small truck and van models.

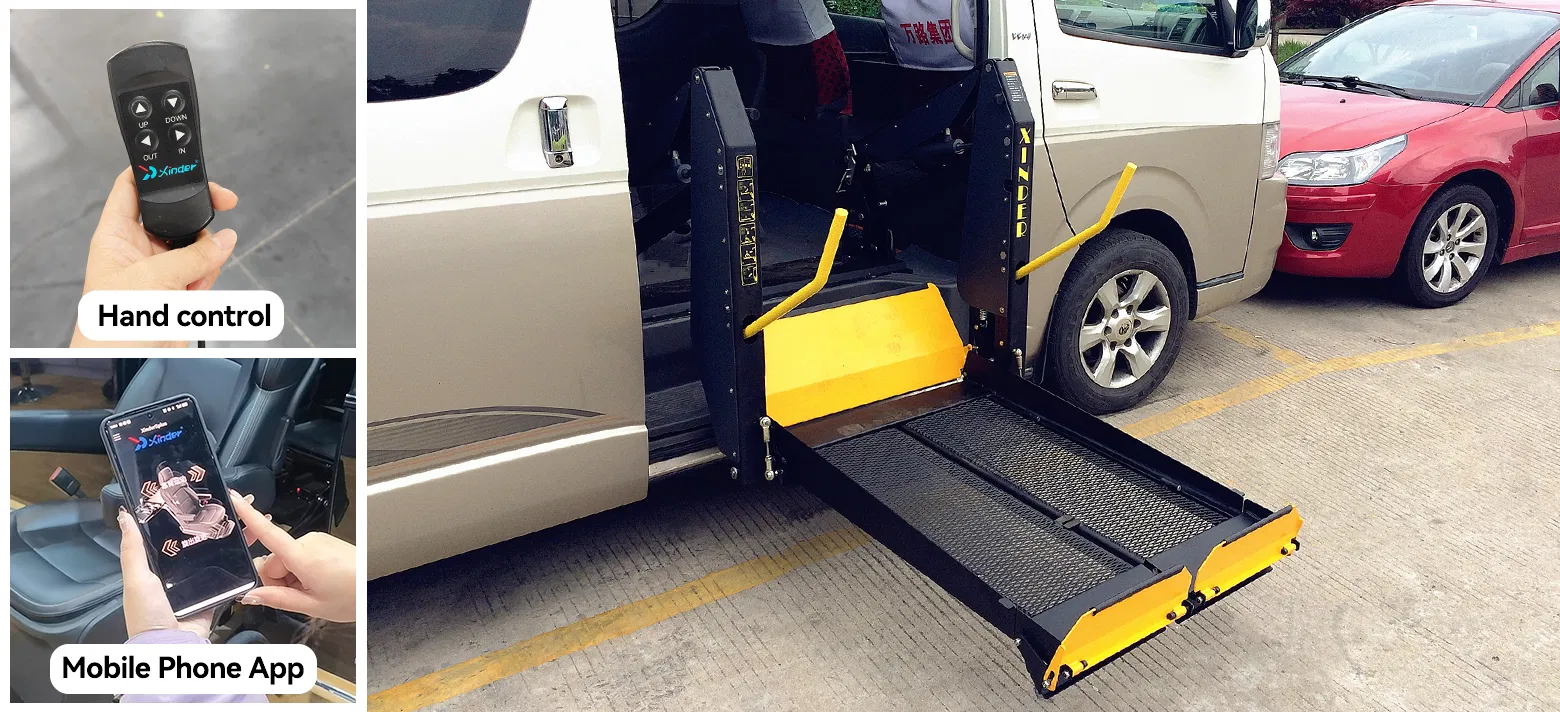

Dual Control Methods: Supports both a physical hand controller and a mobile phone APP (wired or wireless options available).

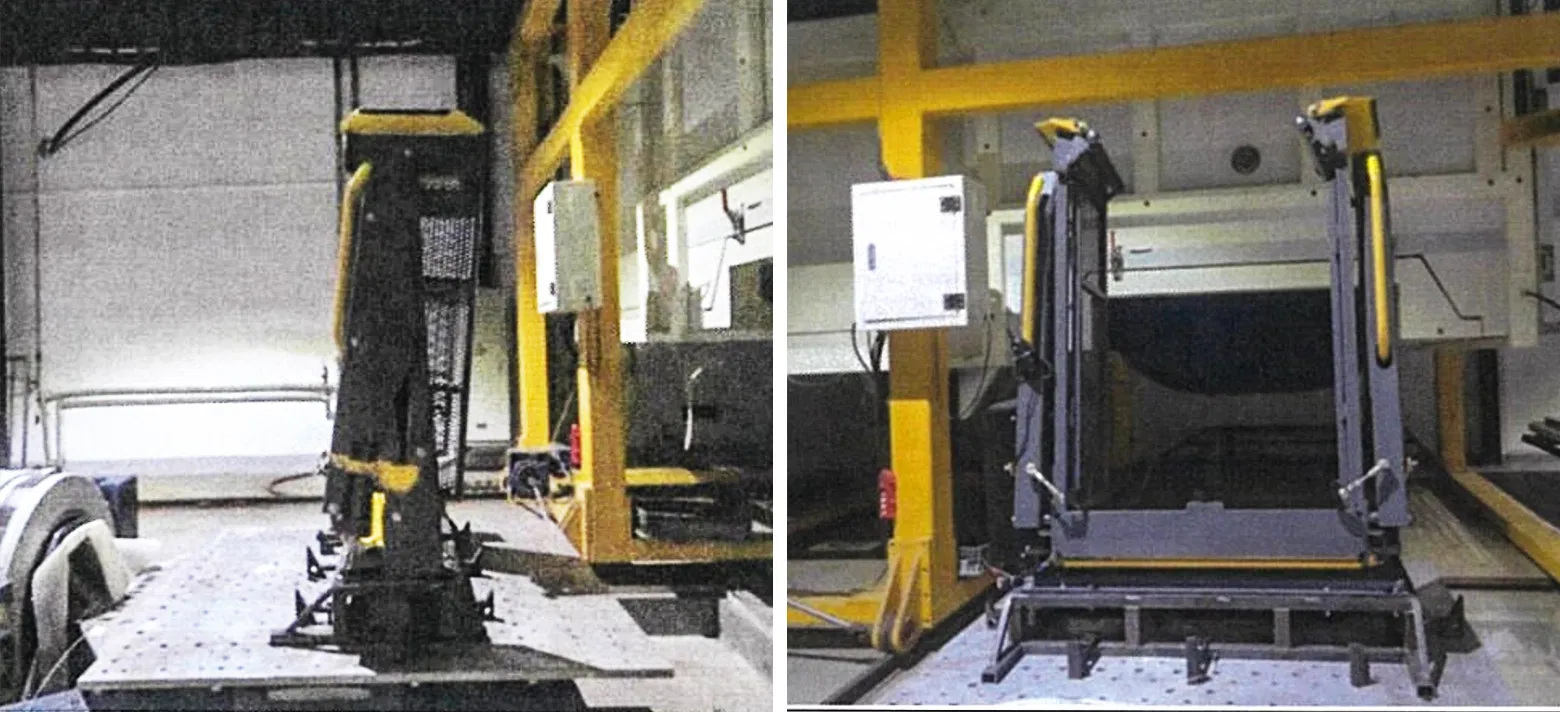

Rigorous Safety Testing: Passed EMC electromagnetic induction tests and high/low temperature endurance tests to ensure passenger safety in all conditions.

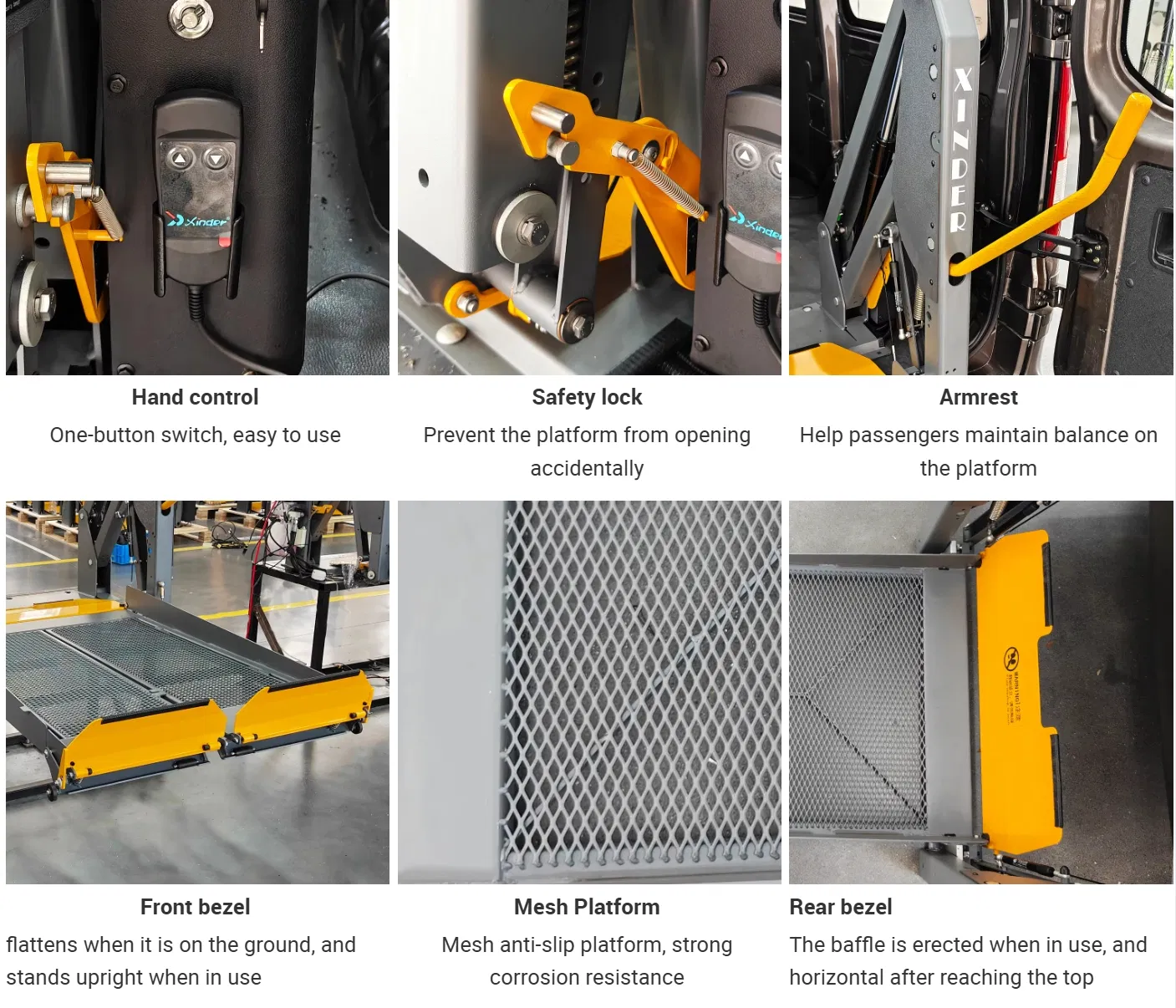

Product Details

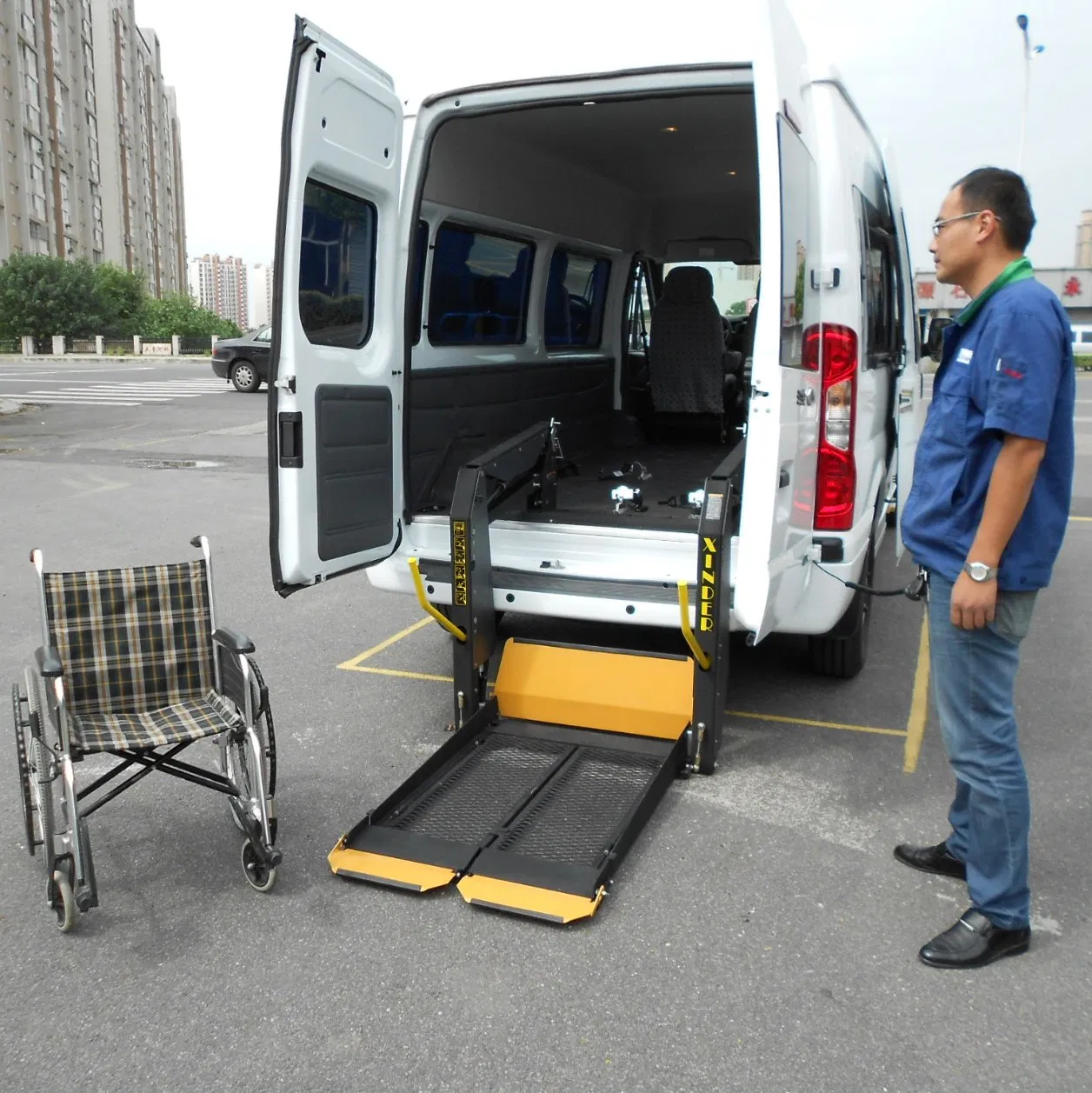

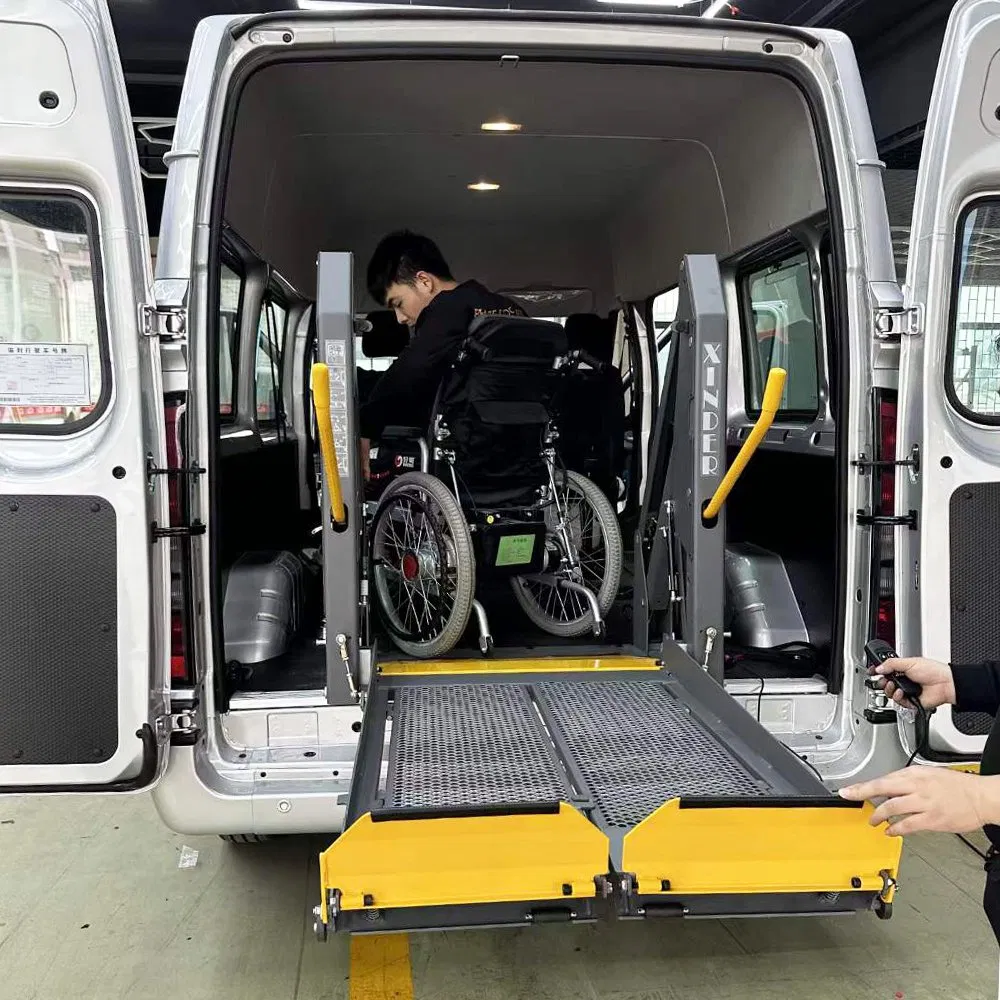

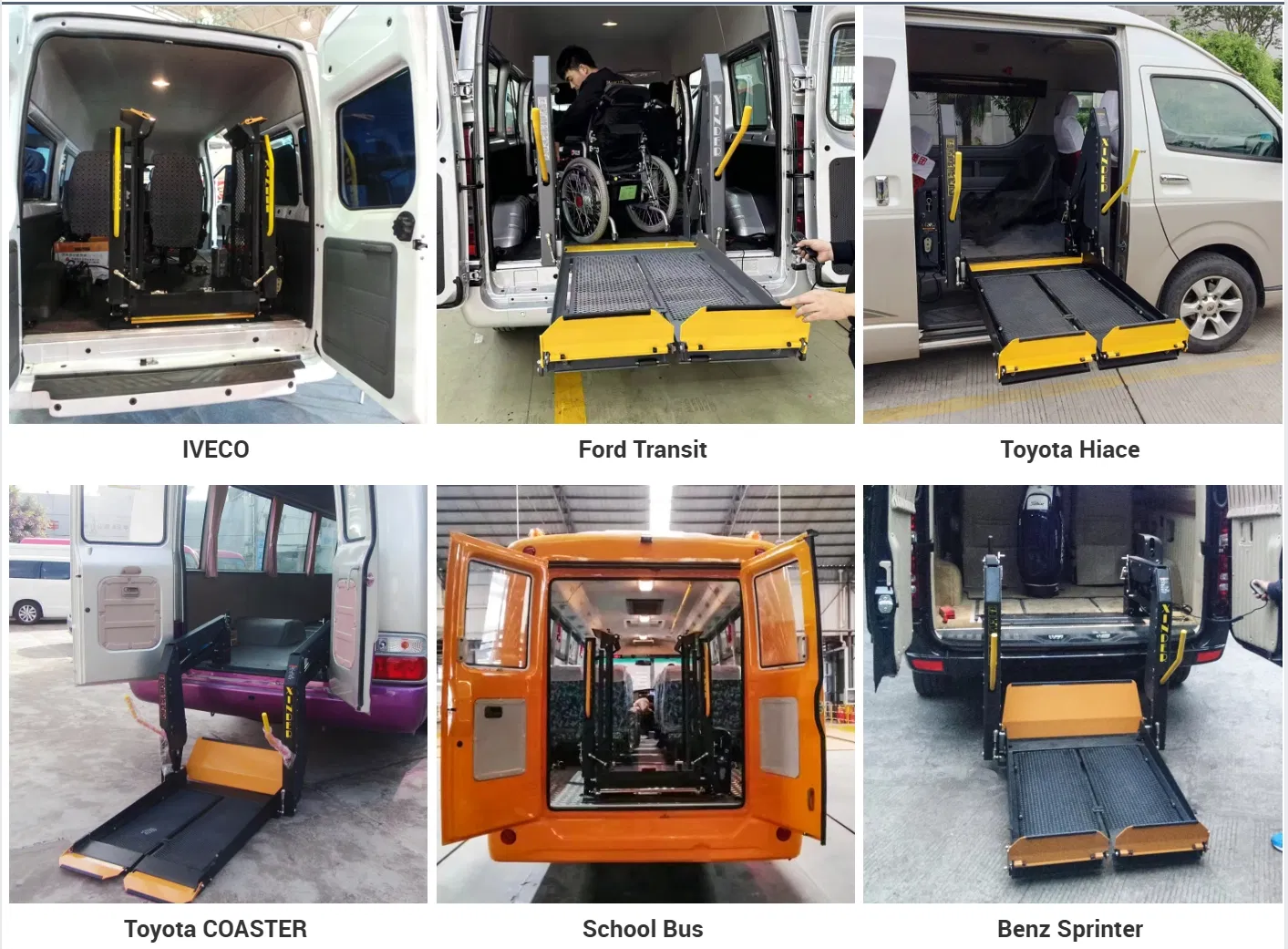

Modification Cases

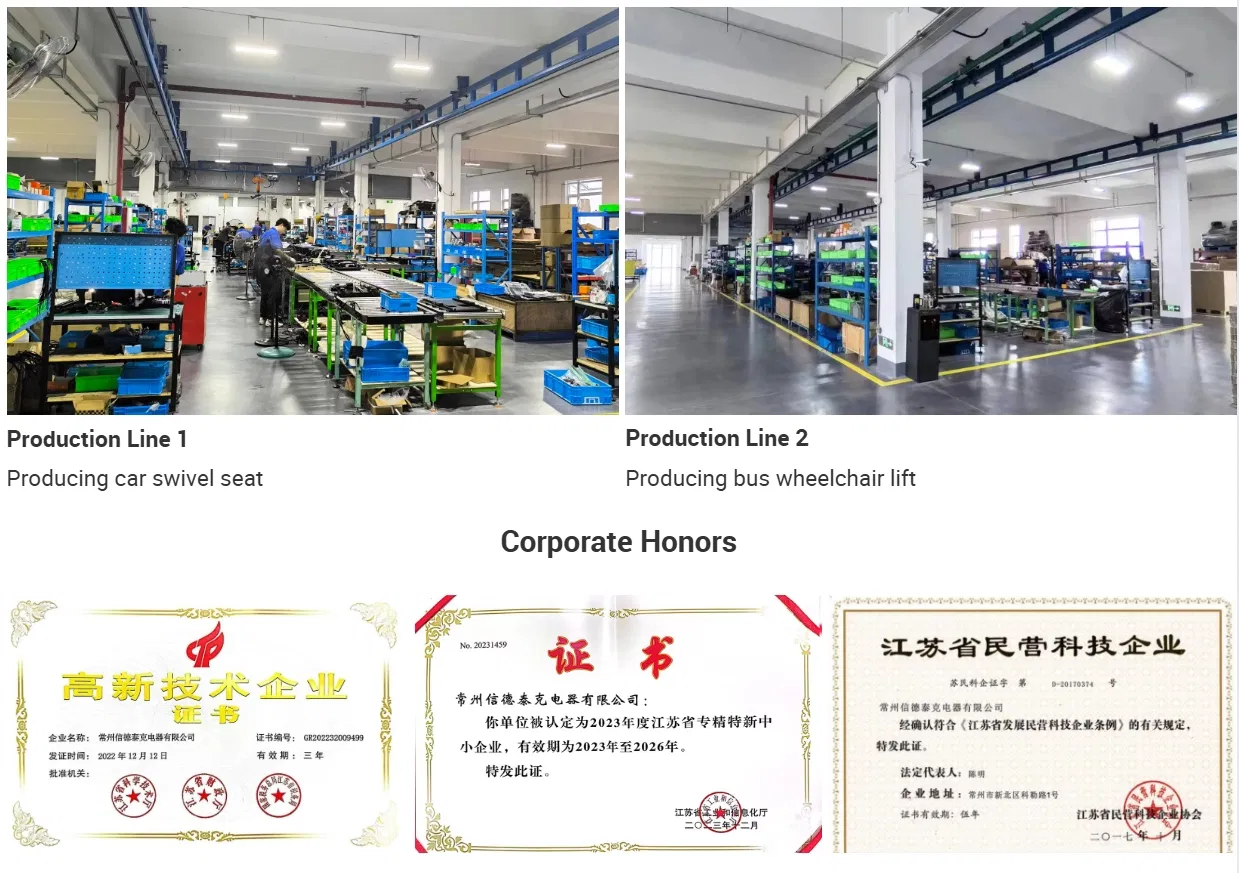

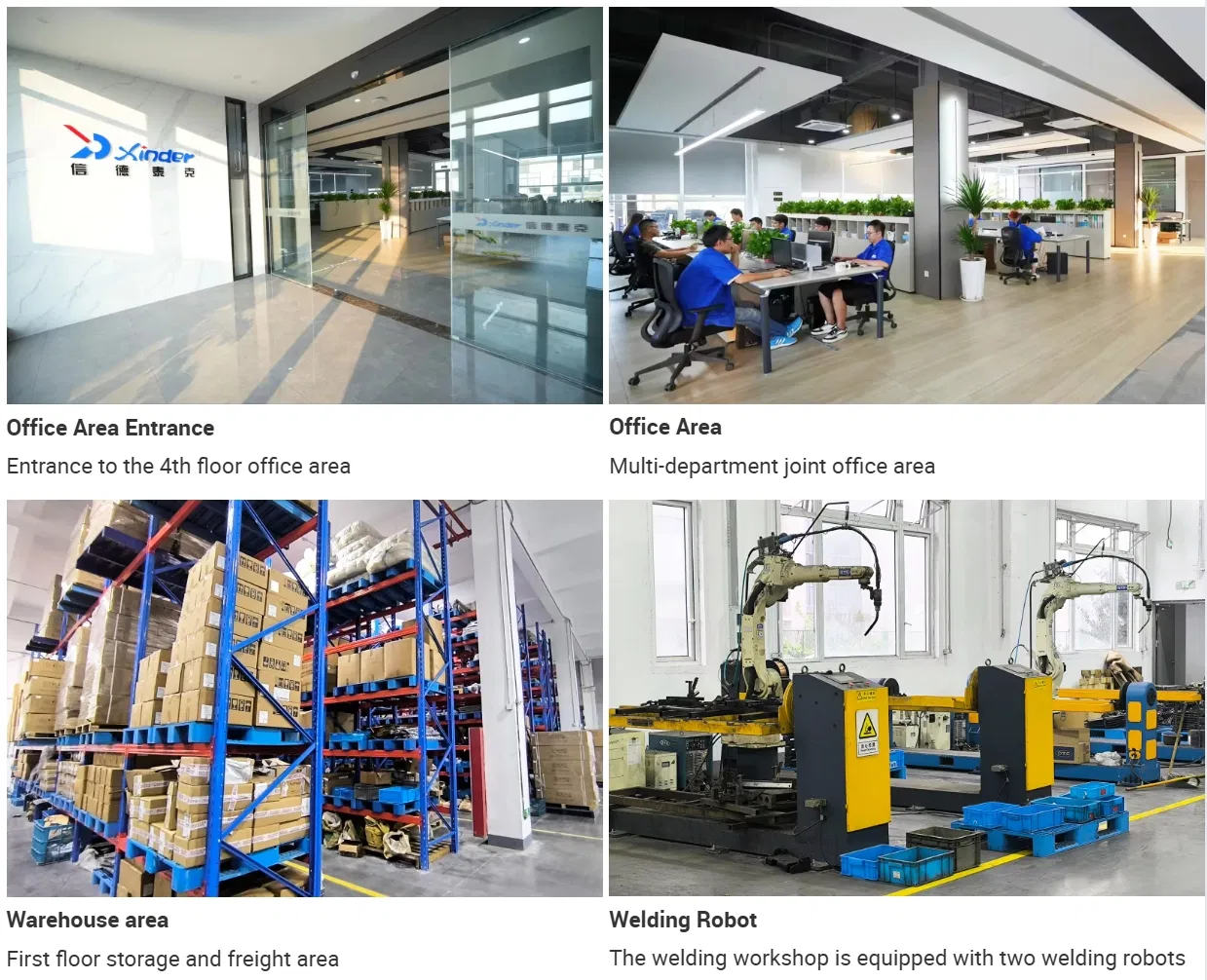

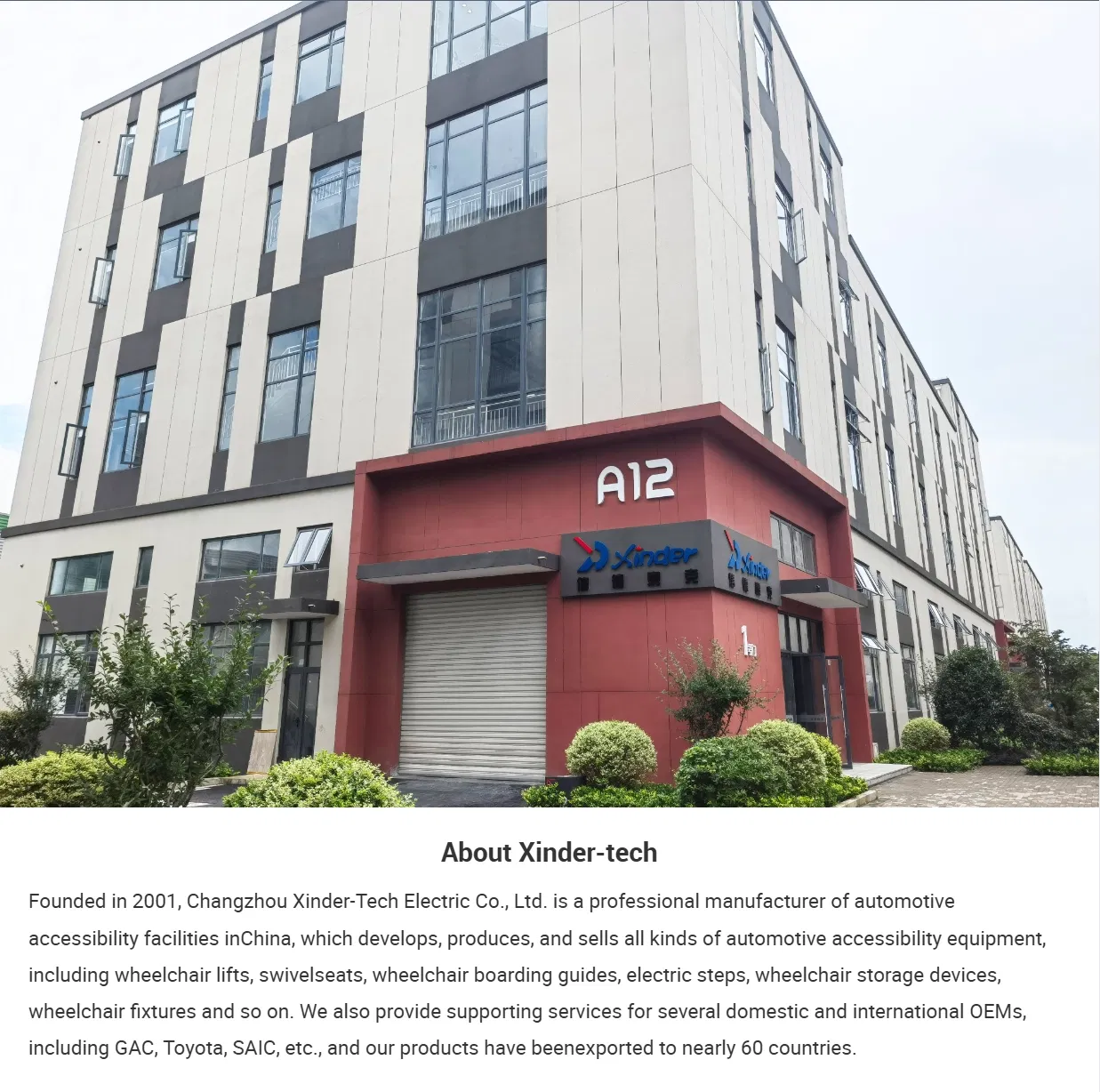

Production & Manufacturing

Frequently Asked Questions

What is the maximum weight the lift can carry?

The lift is designed with a high-strength structural frame that supports a maximum loading capacity of 350kg.

Which vehicle types are compatible with this lift?

It is suitable for most vans, minibuses, and small trucks. The 880mm stroke covers the entry height of most standard commercial vehicles.

Can I operate the lift without the wired controller?

Yes, the system supports dual control methods. You can use either the standard wired hand controller or a mobile phone APP via a wireless connection.

Is the installation restricted to the rear door only?

No, the lift is versatile and can be installed at either the side door or the rear door depending on your vehicle's configuration.

Are there different platform styles available?

Yes, we provide three types of platforms: solid, split, and folding, allowing you to choose the one that best fits your space and visibility needs.

How does the lift handle safety and extreme conditions?

The product has undergone rigorous EMC electromagnetic induction tests and high/low temperature tests (-20°C to +50°C) to ensure reliable operation in various environments.
