Basic Info.
Driving Type
Hydraulic Drive or Screw Drive
Control Mode
Push-Button Control
Computer Room
Outdoor or Indoor
Production Date
30 Days After Deposit
Product Description
Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts. It features smooth running speed, high safety, easy installation, small space required & no pits required.
| Voltage | 220V/50HZ or Customized |

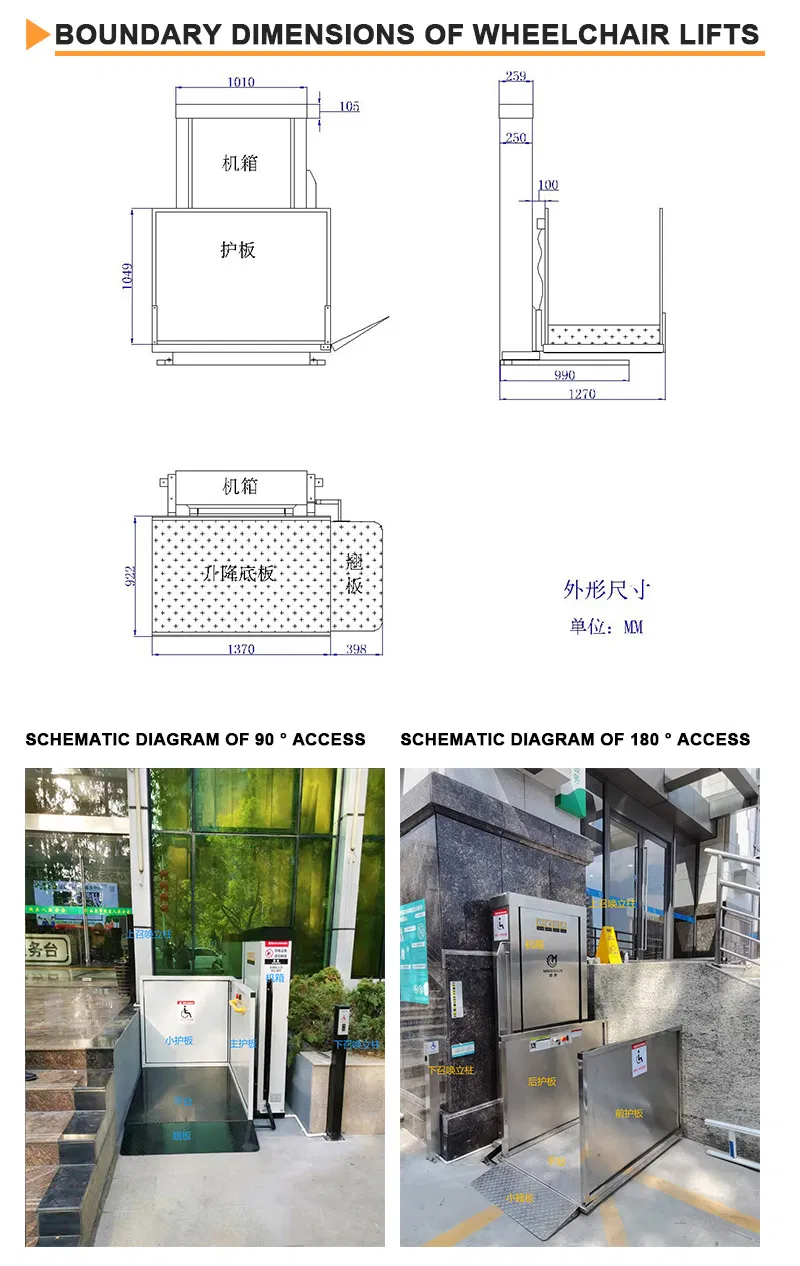

| Overall Dimensions | 1670mm(L)×1270mm(W)×(lifting height+550)mm (H) |
| Lifting Height | 2000mm (Customizable) |
| Minimum Height | 60mm from the ground |
| Installation | No Foundation Required |
| Lifting Speed | 60mm/s inverter control, soft start soft brake |
| Max Loading | 240kg |
| Drive | Screw Drive |
| Power | 2.2kw 220V/AC |
| Environment | Indoor & Outdoor |
| Appearance | Electrostatic spraying or stainless steel plate |
Safety Equipment
- Safety Rocker: Automatically tilts up to prevent the wheelchair from sliding out during operation.
- Overload Protection: System stops operation when capacity is exceeded.
- Emergency Stop: Immediate control via emergency button switch.
- Emergency Descent: Electric descent feature for power failure situations.
Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals and other public places. It has the characteristics of novel design, safety and stability, beautiful appearance, low noise, and low temperature resistance. In line with ASME A18-1 and CSA-B613 standards.
Frequently Asked Questions
What is the maximum weight capacity of this wheelchair lift?
The standard loading capacity is 240kg to 250kg, which comfortably accommodates a wheelchair user and an escort.
Does the lift require a deep pit for installation?
No, this lift is designed for pit-free installation. The minimum height is only 60mm from the ground, making it easy to install without major construction.
Can this lift be installed in outdoor environments?
Yes, the lift is suitable for both indoor and outdoor use. It features low temperature resistance and durable finishes like electrostatic spraying or stainless steel.
What safety features are included for the user?
The lift includes a safety rocker to prevent sliding, overload protection, an emergency stop button, and an electric emergency descent system.
Is the lifting height customizable?
Yes, while the standard lifting height is 2000mm, it can be customized between 1m and 10m to fit your specific building requirements.
What kind of power supply is required?
The standard power requirement is 220V/50HZ, but this can be customized to match your local voltage specifications.
