Vertical Hydraulic Disabled Wheelchair Platform Lift

1 / 5

Vertical Hydraulic Disabled Wheelchair Platform Lift

Customization:	Available
Driving Type:	Hydraulic
Capacity:	300kg

Send Inquiry

Product Description

Basic Specifications

Model NO.

VWL

Persons

One Person

Speed

100mm/s

Control Mode

Push-Button Control

Computer Room

Without Computer Room

Elevator Door

Sider Door

Platform Size

1430*900mm

Lifting Height

Max 10m

Safety

Emergency Down

Materials

Non-Skid Diamond Aluminum

Installation

No pit

Warranty

12 Months

HS Code

842890

Capacity

50,000 PCS/Year

★

Product Introduction

Vertical Disabled Elevator Platform Wheelchair Lift

1. Vertical elevating system: This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.

2. Simple Installation: It can be directly installed into the ground without architectural supporting pits and is easy to operate.

3. Smooth Performance: Its hydraulic or screw system offers passengers smooth and comfortable transportation and different safety devices remove every potential risk.

4. Emergency Descending: When there is no power or malfunctions, the device can be manually descended.

5. Versatile Use: It's suitable for large-sized newly-built residential estates and areas where land resources are compact.

If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All porch lifts are designed to be completely resistant to the harshest weather conditions.

📋

Technical Parameters

Name	Disabled lift platform
Model	VWL
Loading capacity	300kg
Travel height	1500mm
Platform size	1430*900mm / customized
Drive System	Hydraulic/Screw
Power Input	220V/50HZ or customized
Main Material & Build
Platform	Non-skid Diamond Aluminum Platform
Lead rails	Aluminum extruded sections
Surface material	Aluminum plate with plastic spraying finished
Safety Devices
Protection	Emergency stop button & Emergency down valve
Operation Safety	Safety edge stops on obstacles; limit safety switch
Certification	CE/ISO/SGS/CCC

📷

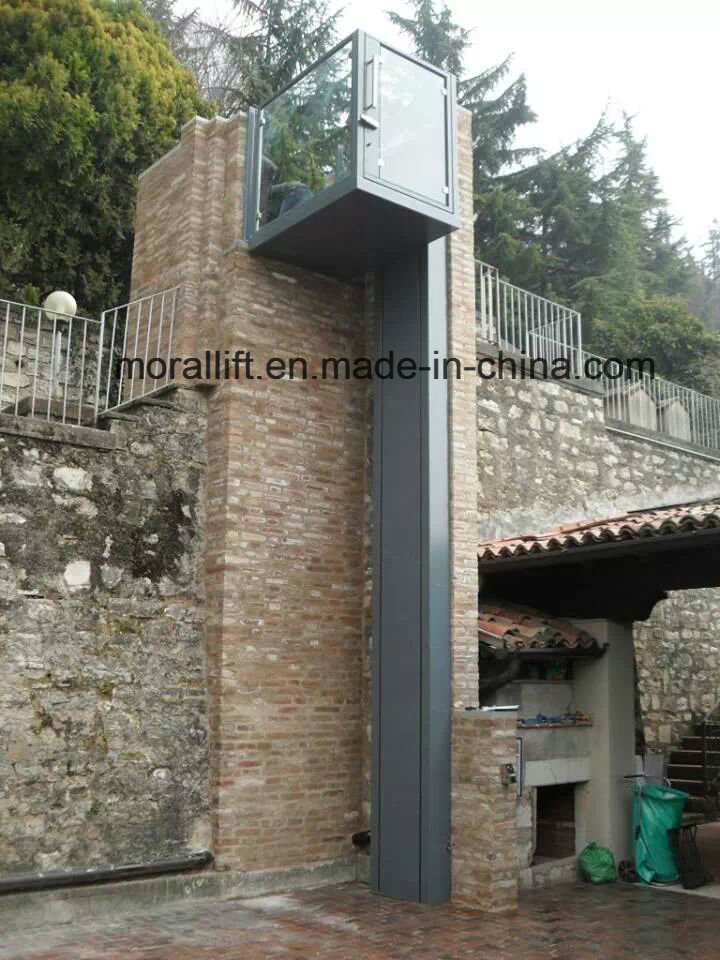

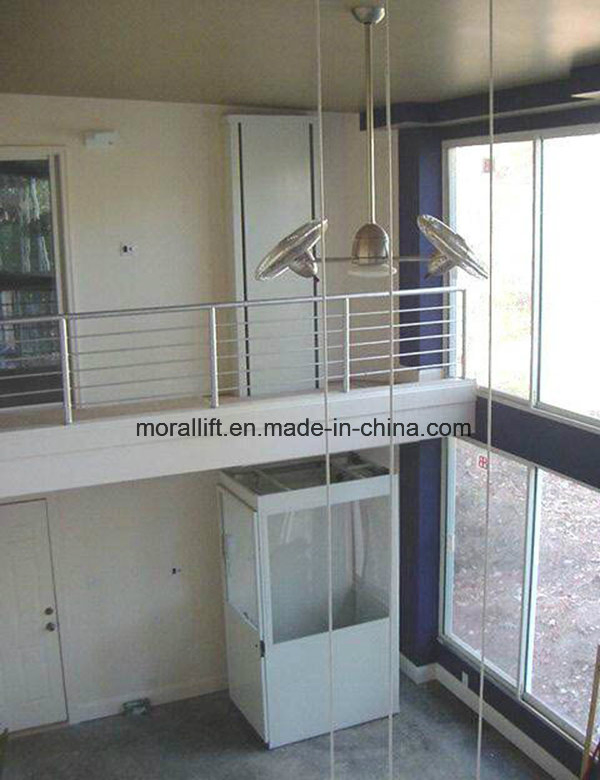

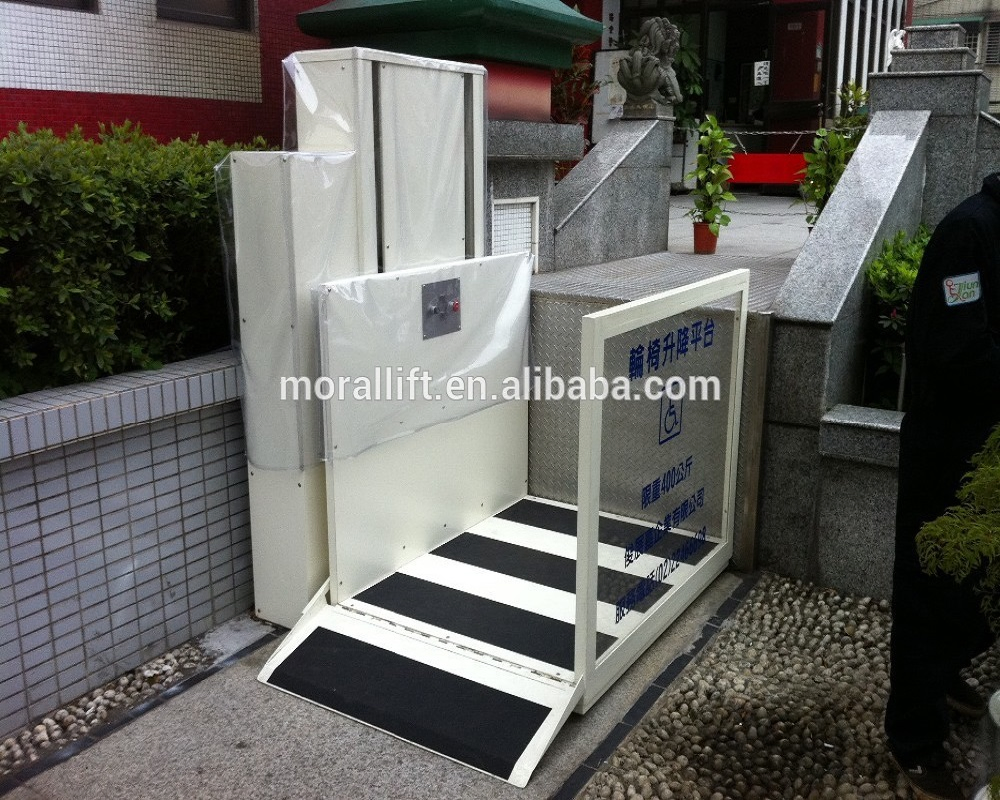

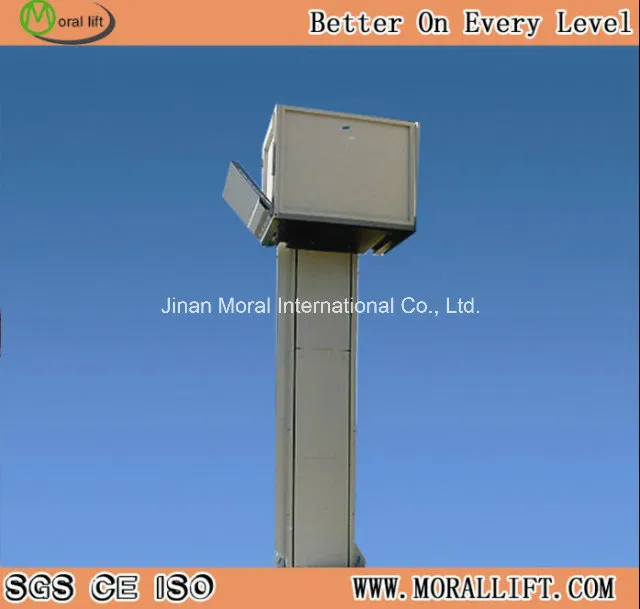

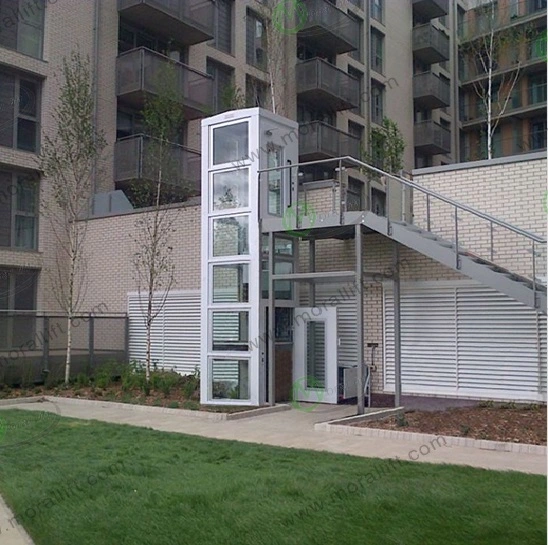

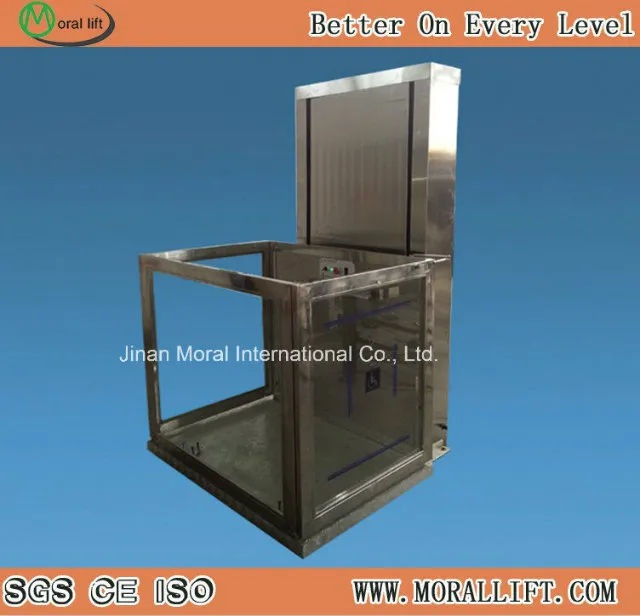

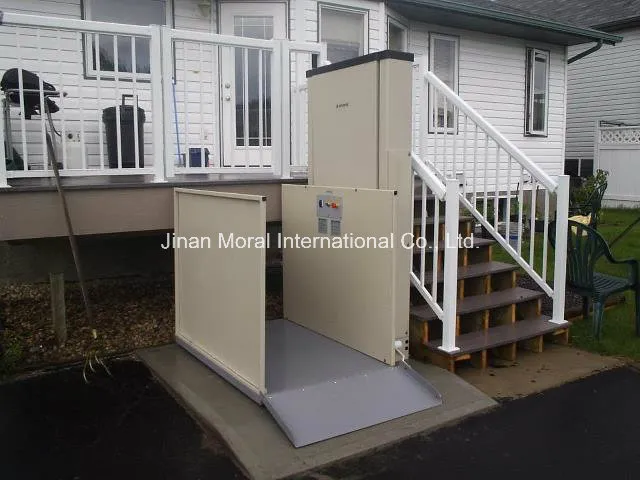

Product Gallery

Frequently Asked Questions

What is the maximum lifting height for this wheelchair lift?

The standard vertical lifting system is designed for heights up to 6000mm (6 meters), with some configurations reaching up to 10 meters.

Can the platform be installed outdoors?

Yes, the lift is constructed with weather-resistant materials, including non-skid diamond aluminum and plastic spraying finishes, making it suitable for both indoor and outdoor working conditions.

Is a pit required for installation?

No, this model supports non-pit installation. It can be directly installed onto the ground without architectural supporting pits.

What safety features are included for power failures?

The lift is equipped with an emergency descending valve that allows the platform to be manually lowered safely in the event of a power failure or malfunction.

What is the standard loading capacity?

The standard loading capacity for the VWL model is 300kg, which comfortably accommodates one person in a wheelchair or mobility scooter.

What kind of warranty is provided?

The product comes with a 12-month warranty covering essential components and structural integrity.
