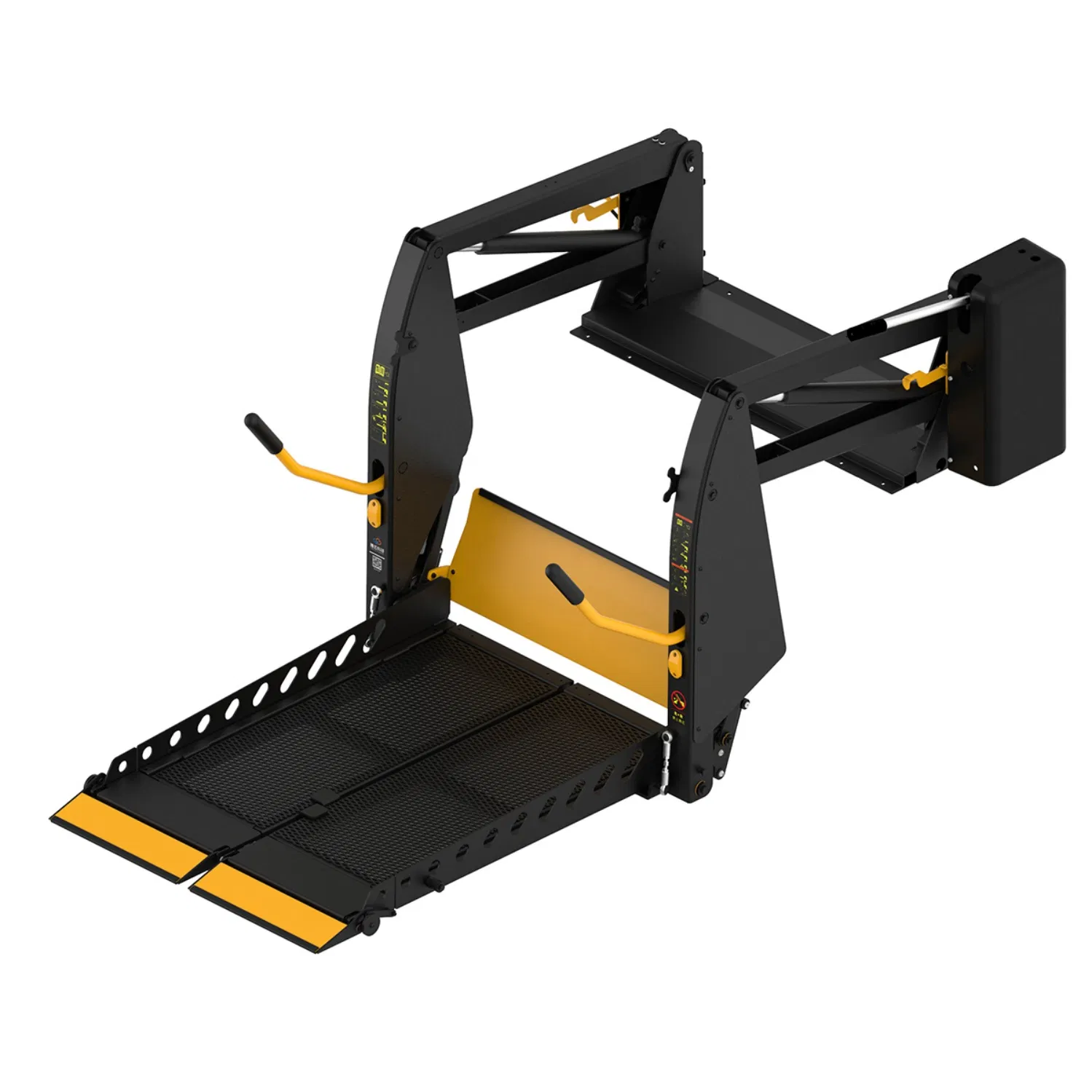

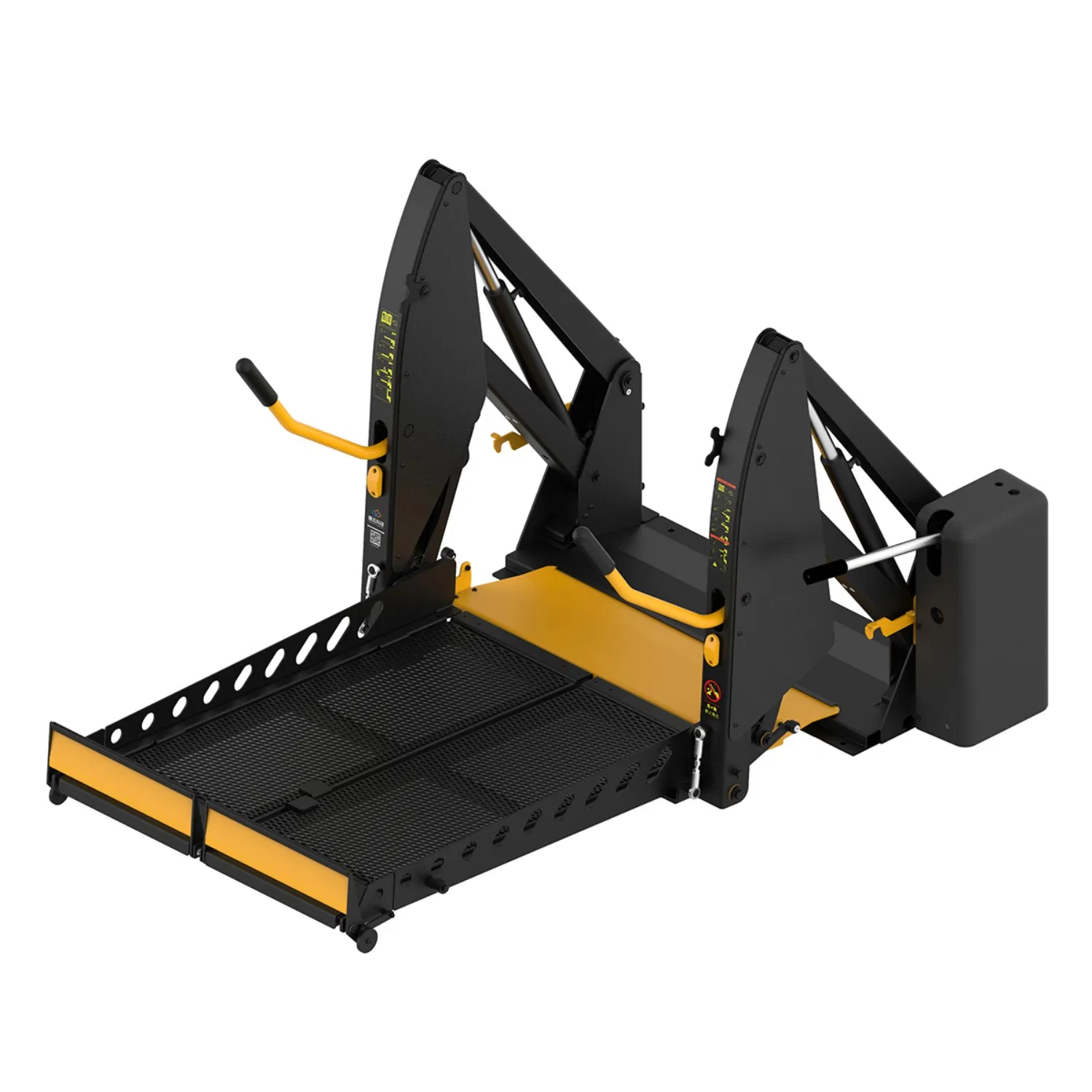

New Product Multiple Installation Car Wheelchair Lift for Large-Scale Venues

Still deciding? Get samples of $ !
Request Sample

Product Description

⭐ Basic Information
Model NO.
L3B
Condition
New
Operating Voltage
12/24 VDC
Rated Power
500 W
Load Capacity
400 Kg
Control Type
Bluetooth Remote Control and APP Operation
Package
Box
Production Capacity
50,000 pieces/Year
📦 Product Description

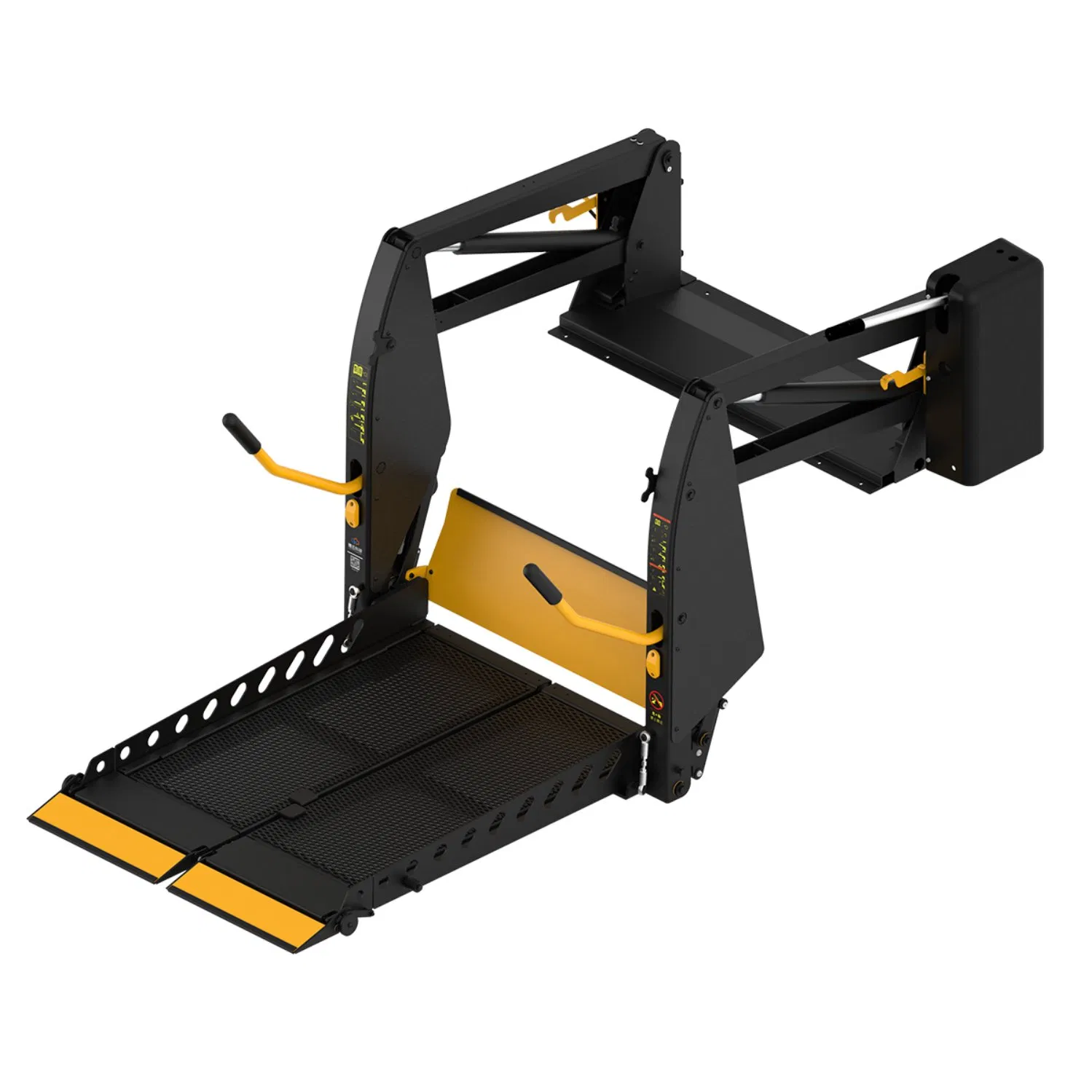

Car Wheelchair Lift Overview

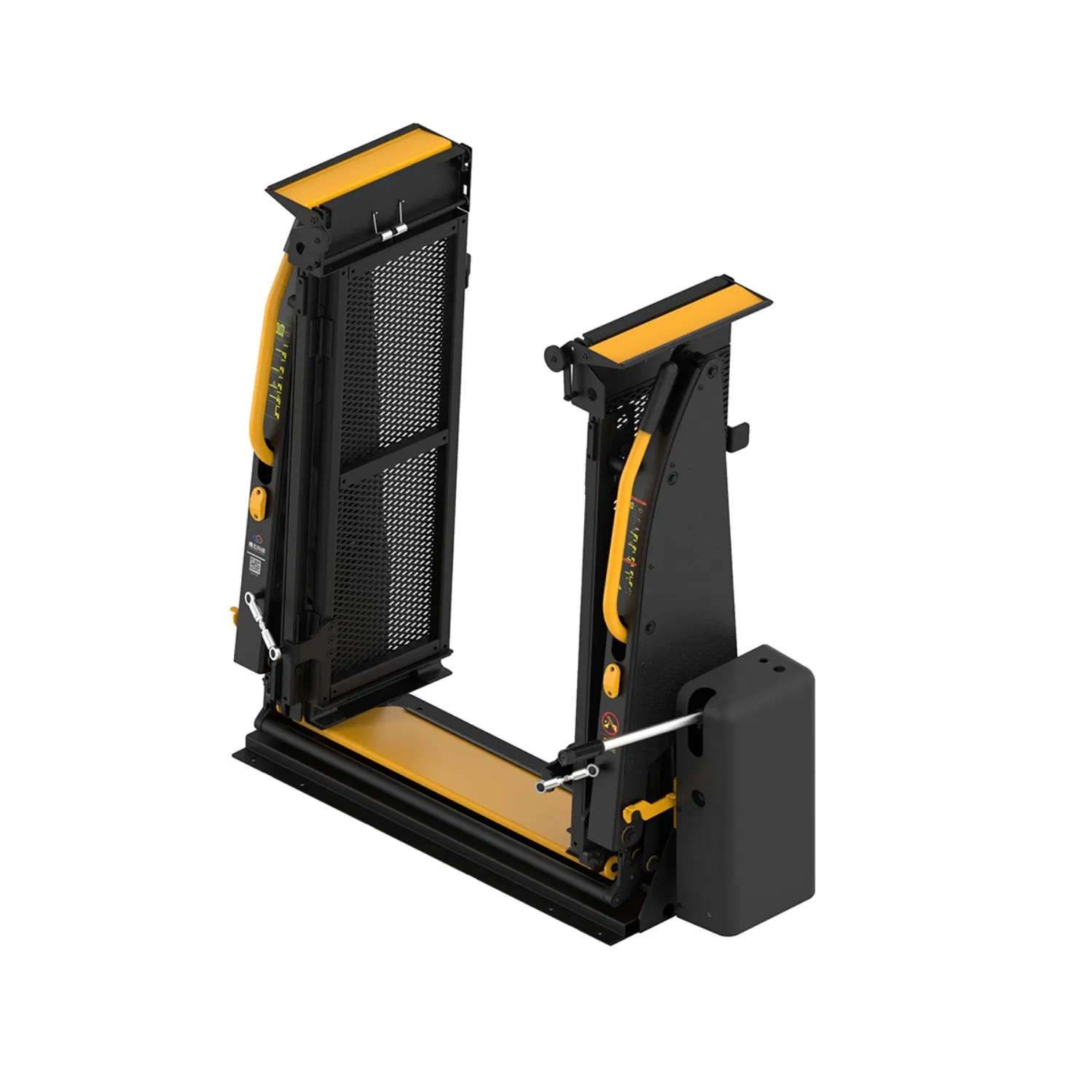

This product is primarily installed on the side or rear doors of commercial vehicles. Featuring a drawer-style storage platform structure, it ensures an unobstructed field of view for both passengers and the driver. The lift boasts a reduced overall thickness, making it compatible with the installation requirements of a wider range of vehicle models. Fully hydraulically driven, the platform's lifting and folding operations can be controlled via a handheld switch.
Wheelchair Lift Detail Wheelchair Lift Operation
📐 Technical Specifications

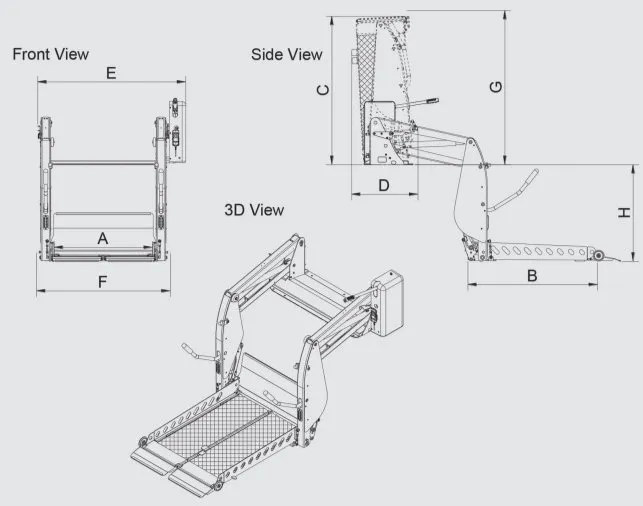

Model(mm) Clear Length (A) Clear Width (B) Overall Height (C) Overall Depth (D) Overall Width (E)
L3B-660×95566095510904701050
L3B-770×1030770103011605201160
L3B-820×1200820120013355551210
L3B-870×1300870130014355851260
Model(mm) Min Door Width (F) Min Door Height (G) Max Floor to Ground (H) Pump Side Weight
L3B-660×9559201105750L/R130kg
L3B-770×103010301200880L/R142kg
L3B-820×120010801380900L/R152kg
L3B-870×130011301480900L/R159kg

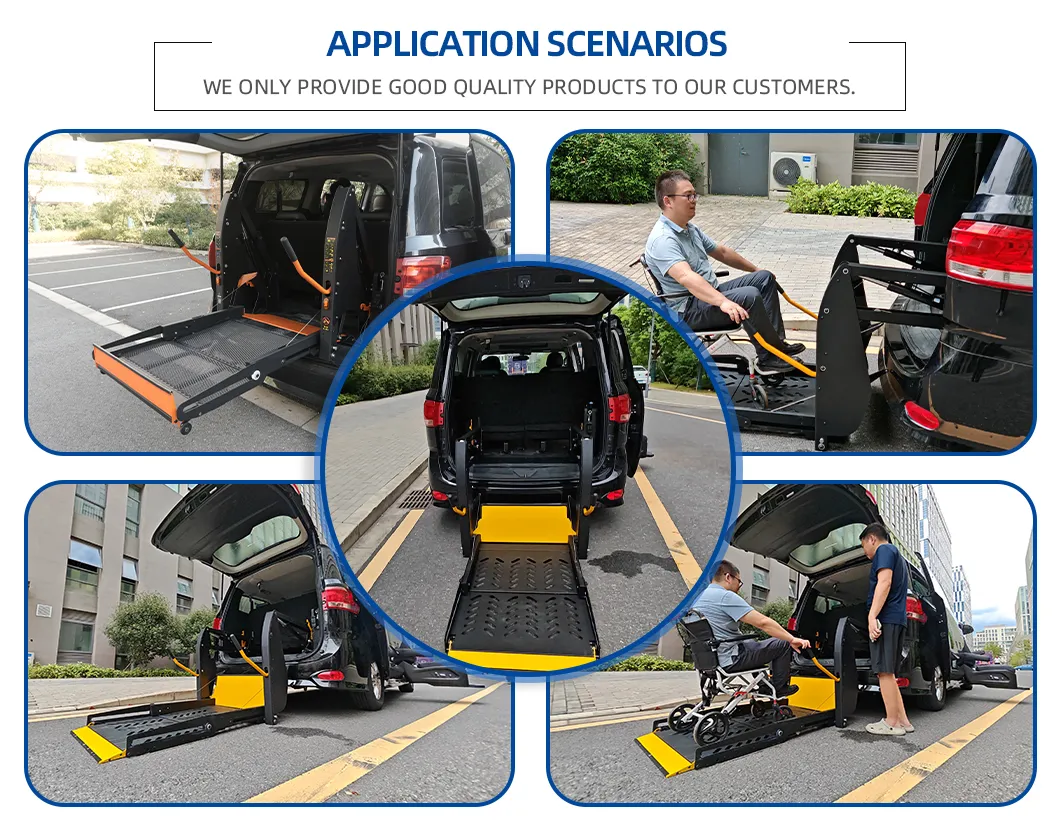

Installation 1 Installation 2 Installation 3
📜 Certifications & Quality
Production Facility Quality Control Certificates
🚢 Packaging & Shipping
Packing Terms
  • Standard Packing: Export grade Carton + Wooden Case. Custom packaging is available.
  • Delivery Time: Within 15 days after payment confirmation.
  • Shipping Options: Supported via Sea, Air, Express, or Rail through major ports.
  • Trade Terms: FOB, CIF, EXW, DDP, and DDU are available for your convenience.
  • Customization: OEM and ODM orders are welcome; samples available for evaluation.
❓ Frequently Asked Questions
Can I obtain a sample before placing a bulk order?
Yes, we provide samples for testing and evaluation purposes to ensure the product meets your specific requirements before mass production.
Do you offer OEM or ODM services for custom logos?
Absolutely. We offer full OEM and ODM services. Your logo or specific design can be customized on the products according to your requirements.
Are you a direct manufacturer?
Yes, we are a professional manufacturer and exporter specialized in accessible vehicle products with our own dedicated production facility.
What is the monthly production capacity for these lifts?
Our facility has a monthly capacity of approximately 150 sets of wheelchair lifts, alongside 200 sets of accessible seats and ramps.
What is the typical lead time for an order?
Most standard products are in stock and can be shipped within 15 days after order confirmation. Lead time for bulk orders depends on quantity.
What modes of transport do you support?
We support transport by Sea, Air, Express, and Rail. Tracking numbers are provided immediately after shipment.
