Residential Home Elevators Wheelchair Lifts Stair Lifts for Disabled

1 / 5

Residential Home Elevators Wheelchair Lifts Stair Lifts for Disabled

Customization:	Available
After-sales Service:	24 Hours Technical Support
Warranty:	12 Months

Send Inquiry

Product Description

ℹ

Basic Info

Model NO.

X-500L

Driving Type

Hydraulic Type

Capacity

250kg

Persons

2-3 Persons

Speed

70mm/S

Control Mode

Push-Button Control

Position

Outdoor or Indoor

Elevator Door

Customized

Lifting Height

1m-10m

Production Date

30 Days After Deposite

Package

Export Wooden Box

Origin

China

📝

Product Description

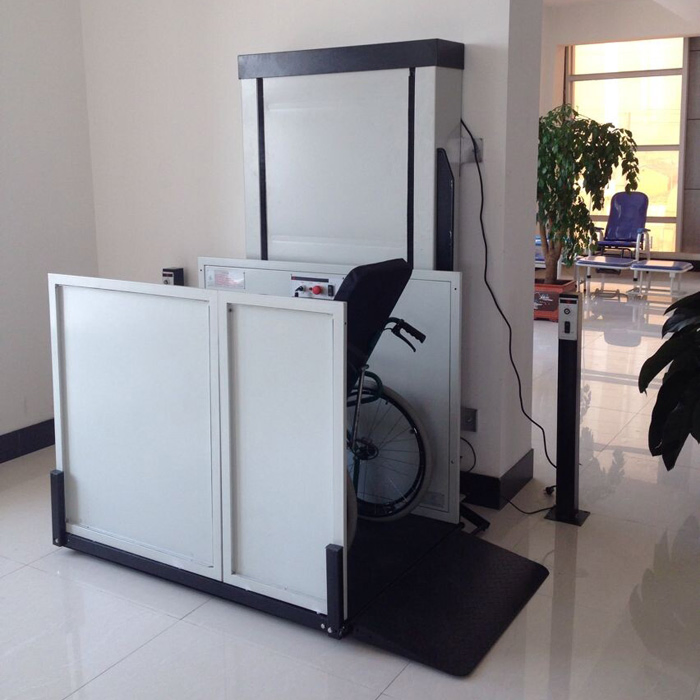

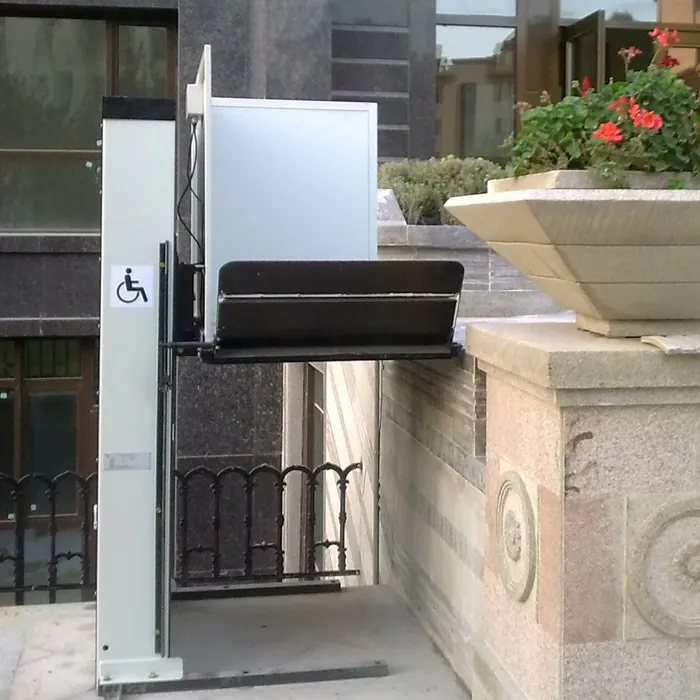

Wheelchair platform lift for home is customized products for lifting cargo or wheelchair for disabled people. It is suitable for solving disabled passengers with large height differences between floors. Platform space can accommodate both wheelchairs and escorts.

This wheelchair platform lift for home has the features of smooth running speed, high safety, easy installation, small space required & no pits required.

Safe performance and pit-free installation design bring you the convenience of barrier-free access construction and elevator-like enjoyment. Widely used in residential quarters, hotels, restaurants, administrative office buildings, subways, banks, gymnasiums, hospitals and other public places. Novel design, safety and stability, beautiful appearance, low noise, and low temperature resistance. In line with ASME A18-1 and CSA-B613 standards.

⚙

Technical Parameters

Parameter Item		Specification Details
Voltage		220V/50HZ or Customized

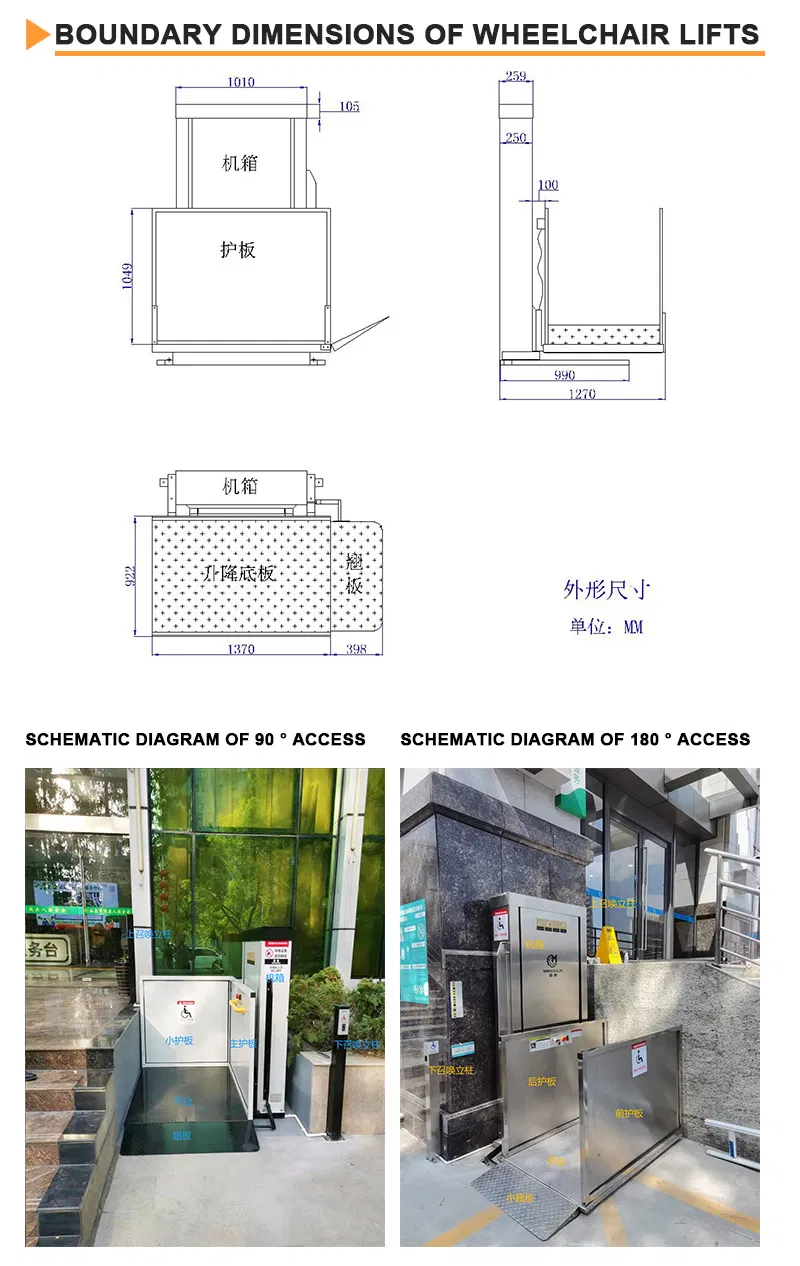

Overall Dimensions		1670mm(L)×1270mm(W)×(lifting height+550)mm (H)
Lifting Height		2000mm (Customizable)
Min Base Height		60mm from the ground
Installation		No Foundation Required
Lifting Speed		60mm/s inverter control
Max Loading		240kg
Guard Form		90° or 180° configuration
Drive System		Screw Drive
Power		2.2kw 220V/AC
Control		Rocker Self-reset, Switch Operation
Handrail		Matte space aluminum
Environment		Indoor & Outdoor (-20°C to 60°C)
Safety Equipment	Safety Rocker	Automatic tilt to prevent wheelchair sliding
	Overload Protection	Does not operate when overloaded
	Emergency Stop	Manual button control for machine stop
	Emergency Descent	Electric emergency descent system

🖼

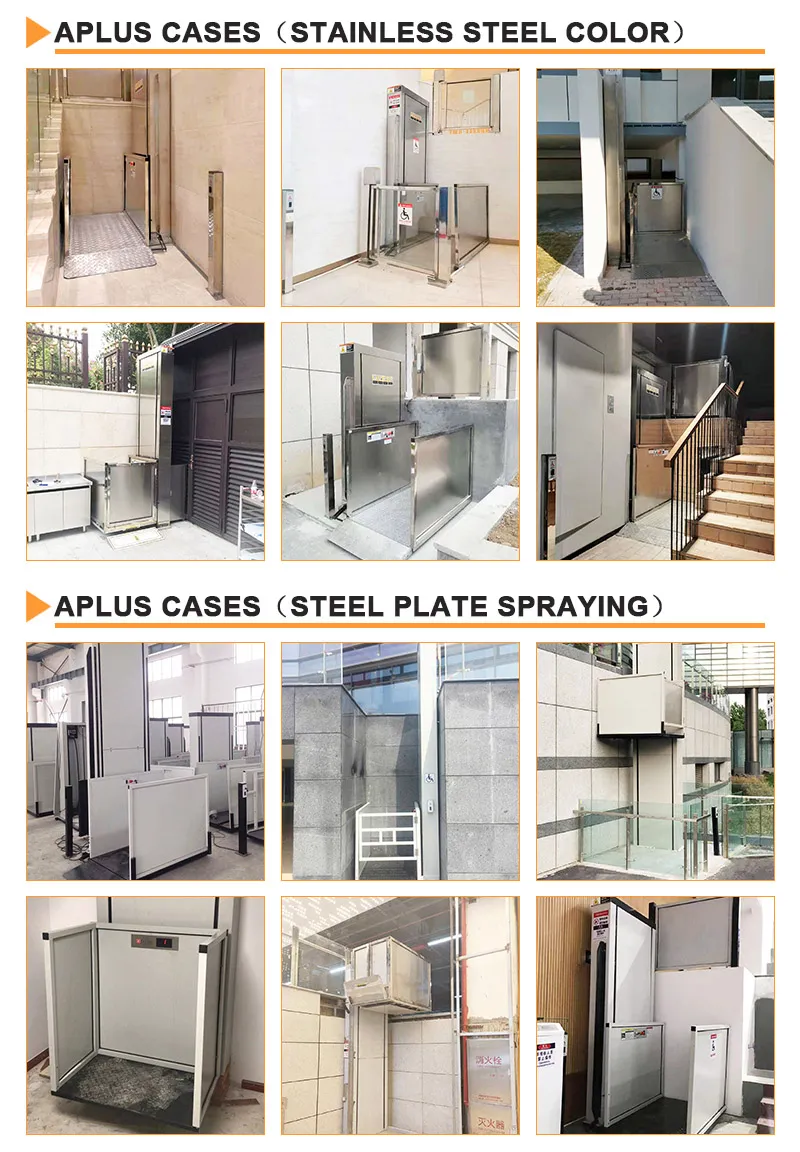

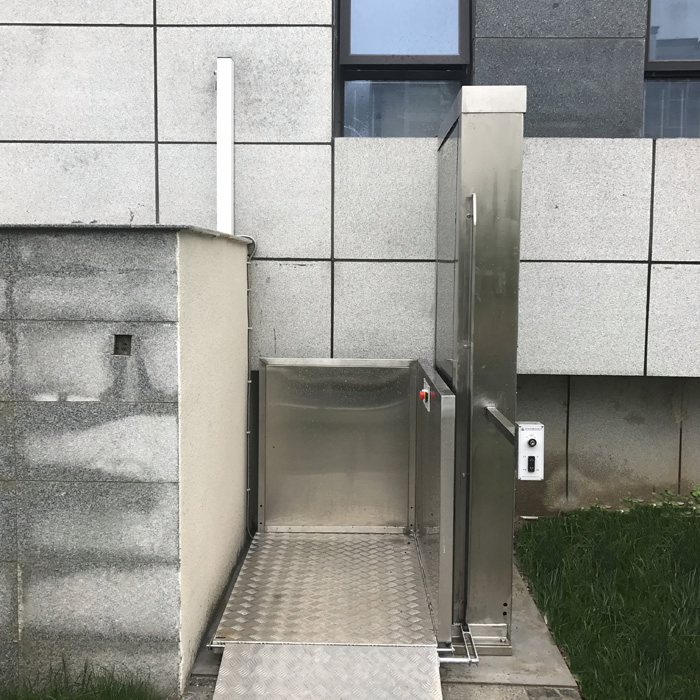

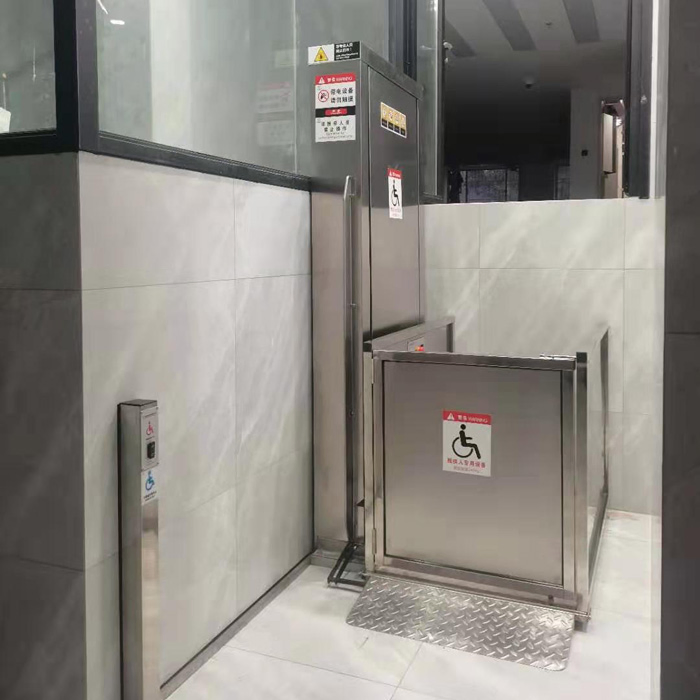

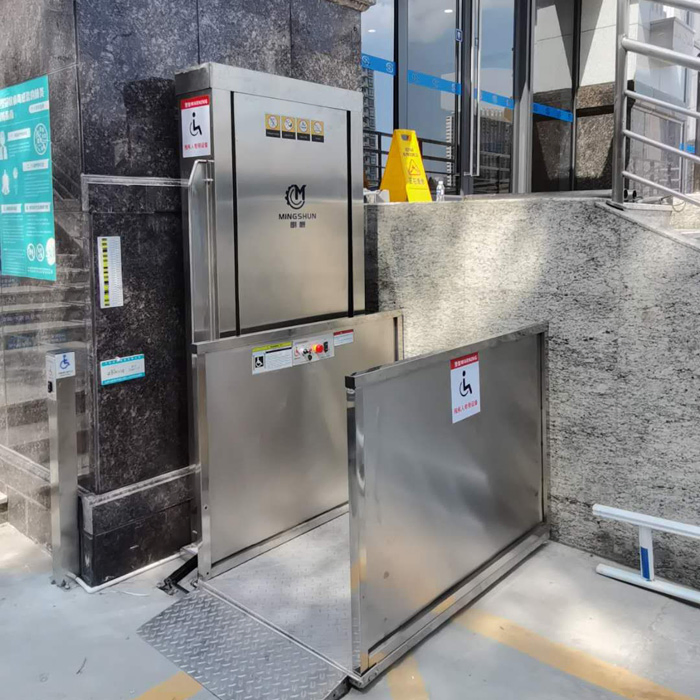

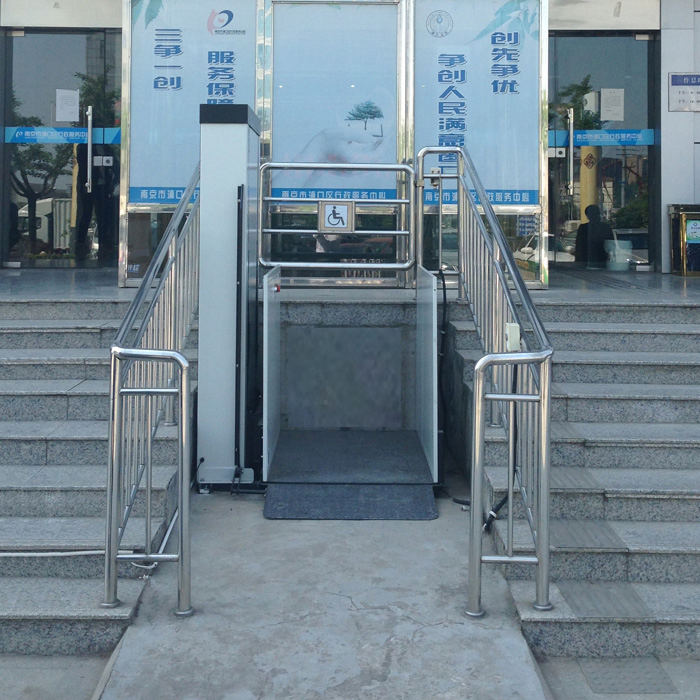

Product Gallery

❓

Frequently Asked Questions

What is the maximum weight capacity of this platform lift?

The standard loading capacity is 240kg-250kg, which comfortably accommodates a wheelchair user and an attendant.

Does the installation require a floor pit?

No, this lift is designed for pit-free installation. The minimum height of the base plate is only 60mm from the ground, requiring no major foundation work.

Can this lift be installed outdoors?

Yes, it is designed for both indoor and outdoor environments, withstanding temperatures ranging from -20°C to 60°C.

What safety features are included to prevent accidents?

The lift includes an automatic safety rocker to prevent sliding, overload protection, an emergency stop button, and an electric emergency descent system.

Is the lifting height customizable?

Yes, while the standard lifting height is 2000mm, we offer customization for heights ranging from 1 meter up to 10 meters to fit your specific needs.

What is the lead time for production?

The typical production date is approximately 30 days after receiving the customer's deposit.
